16264001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 38.504"； Outer Diameter: 50.016"； Width (Thickness): 5.512";

16264001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16264001
Maximum Allowable Gear Tooth Load (Fz) 19390lbs | 86.563KN
Moment Load Rating (Crm) 970400ft-lbs | 4332.143KN
Bearing Types Slewing Ring Bearing

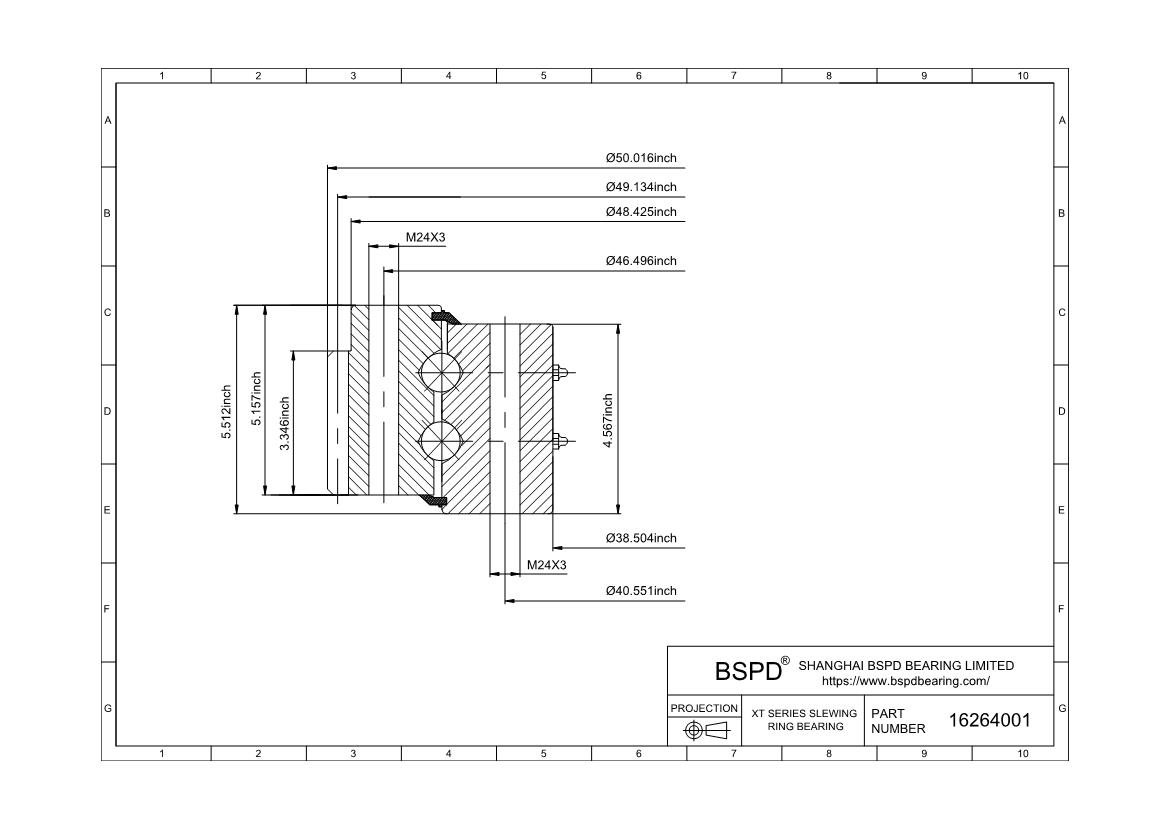

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 50.016" | 1270.41mm
Inside Diameter of Inner Ring (di) 38.504" | 978mm
Height of overall bearing assembly(H) 5.512" | 140mm
Height of outer ring(Ho) 5.157" | 130.99mm
Height of inner ring(Hi) 4.567" | 116mm
External diameter on outer ring(Dr) 48.425" | 1230mm
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 870lbs | 394.623KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 46.496" | 1181mm
Number Holes in Outer Ring (no) 42
Size of hole in outer ring(Bo) M24X3
Bolt circle in inner ring(Li) 40.551" | 1030mm
Number Holes in Inner Ring (ni) 48
Size of hole in inner ring(Bi) 1.024"
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 49.134" | 1248mm
Gear module（M） 8
Number of Gear Teeth(z2) 156
("+" / "-" sign increases tooth thickness at D2(X2) 0.5
Face Width of Gear Teeth(b2) 3.346
gear External
16264001
