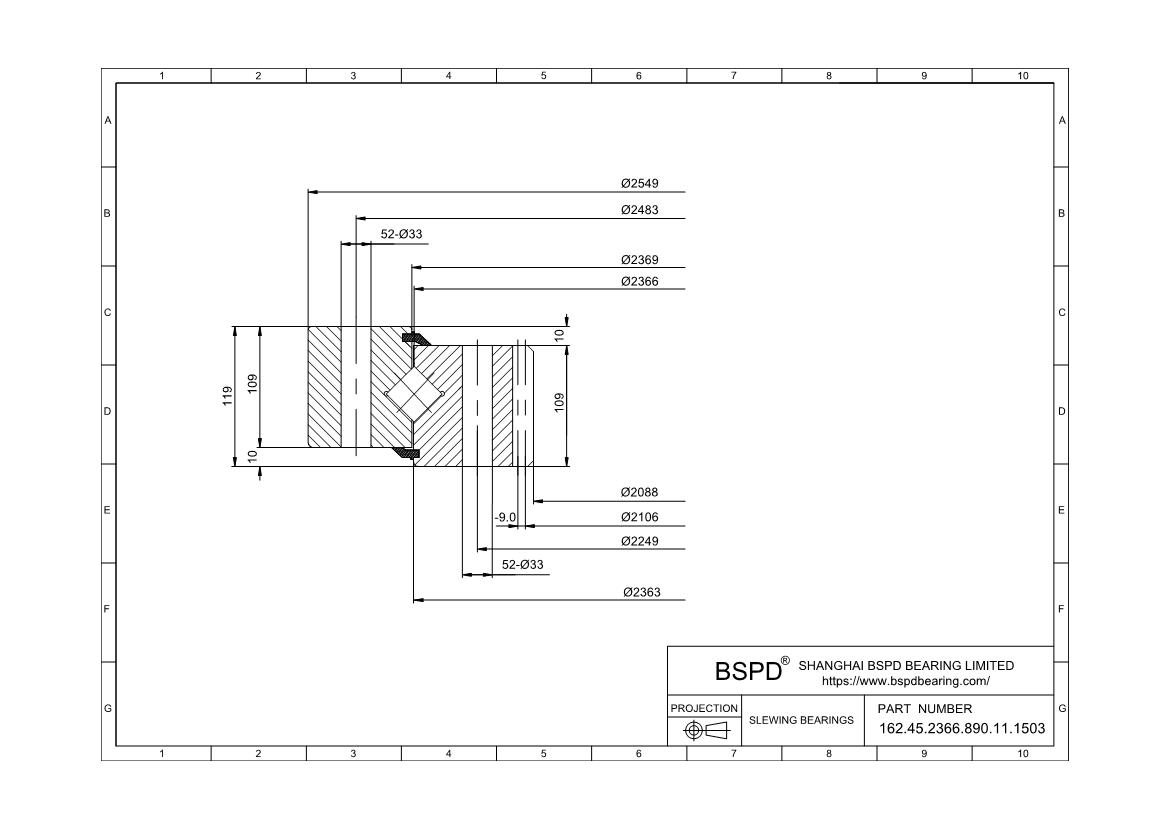

162.45.2366.890.11.1503
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 2088 mm； Outer Diameter: 2549 mm； Width (Thickness): 119 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 162.45.2366.890.11.1503 |
| Series | Series 16 |
| Gear | Internal gear |
| Type | Roller |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 2088 mm |
| Outside Diameter Of Outer Ring | 2363 mm |
| Internal Diameter On Outer Ring | 2549 mm |
| Height Of Overall Bearing Assembly | 119 mm |
| Height Of Inner Ring | 109 mm |
| Height Of Outer Ring | 109 mm |
| External Diameter On Inner Ring | 2369 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 1160 Kg |
| Bolt Circle In Inner Ring | 2249 mm |
| Bolt Circle In Outer Ring | 2483 mm |
| Size Of Hole In Inner Ring | 33 mm |
| Size Of Hole In Outer Ring | 33 mm |
| Number Holes In Inner Ring | 52 |
| Number Holes In Outer Ring | 52 |
| Diametral Pitch | 2106 mm |
| Number Of Gear Teeth | 117 |
| Permissible Tooth Forces T | 123.2 |
| Max Gear Tooth Load Fz | 246.4 |
| Diameter Of Bearing Raceway | 2366 mm |
| Distance Between Bottom Outer Ring Inner Ring | 10 mm |
| Correspond | FIG2 |
| x·m | -9 |
| K | 10 mm |
| F19 | 2363 mm |
| n1 | 9 |
| Bolt Size (M) | 30 mm |
| M | 18 |
| F | 109 mm |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
