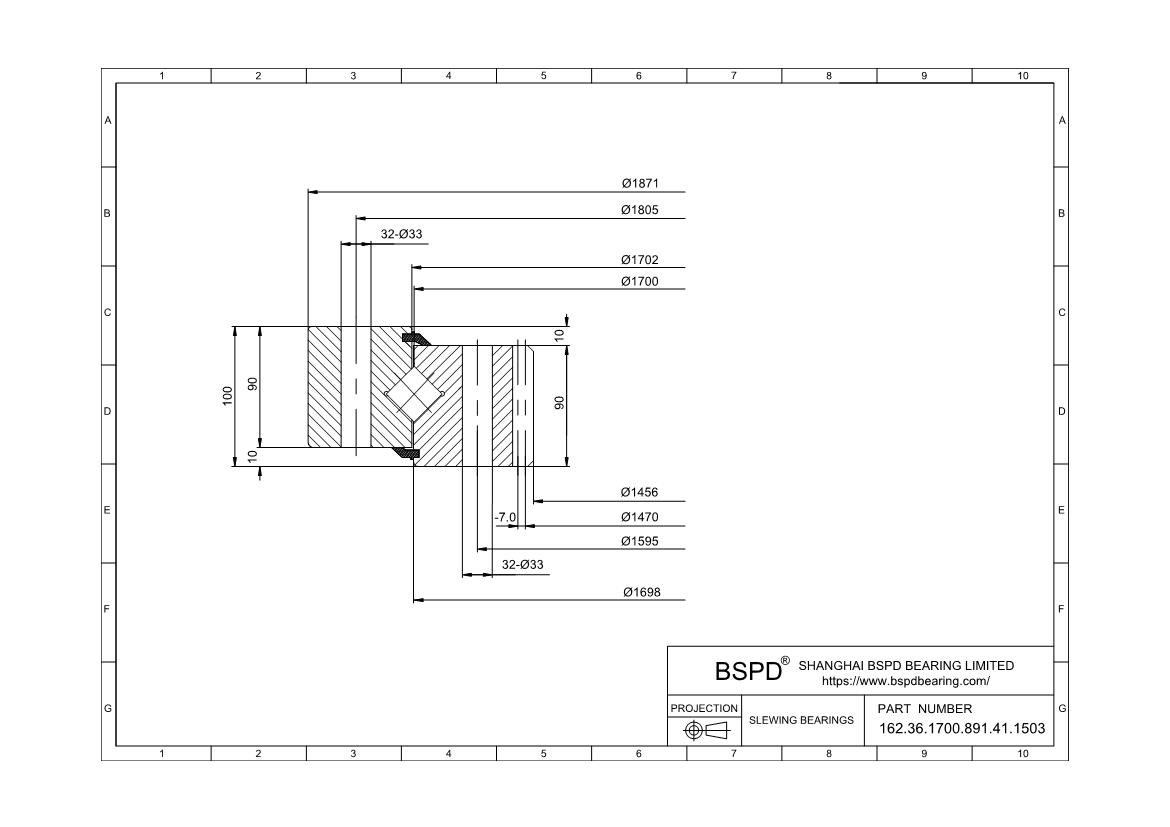

162.36.1700.891.41.1503
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1456 mm； Outer Diameter: 1871 mm； Width (Thickness): 100 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 162.36.1700.891.41.1503 |
| Series | Series 16 |
| Gear | Internal gear |
| Type | Roller |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1456 mm |
| Outside Diameter Of Outer Ring | 1698 mm |
| Internal Diameter On Outer Ring | 1871 mm |
| Height Of Overall Bearing Assembly | 100 mm |
| Height Of Inner Ring | 90 mm |
| Height Of Outer Ring | 90 mm |
| External Diameter On Inner Ring | 1702 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 636 Kg |
| Bolt Circle In Inner Ring | 1595 mm |
| Bolt Circle In Outer Ring | 1805 mm |
| Size Of Hole In Inner Ring | 33 mm |
| Size Of Hole In Outer Ring | 33 mm |
| Number Holes In Inner Ring | 32 |
| Number Holes In Outer Ring | 32 |
| Diametral Pitch | 1470 mm |
| Number Of Gear Teeth | 105 |
| Permissible Tooth Forces T | 115.6 |
| Max Gear Tooth Load Fz | 231.2 |
| Diameter Of Bearing Raceway | 1700 mm |
| Distance Between Bottom Outer Ring Inner Ring | 10 mm |
| Correspond | FIG2 |
| x·m | -7 |
| K | 10 mm |
| F19 | 1698 mm |
| n1 | 8 |
| Bolt Size (M) | 30 mm |
| M | 14 |
| F | 90 mm |
| RoHS | Compliant |
