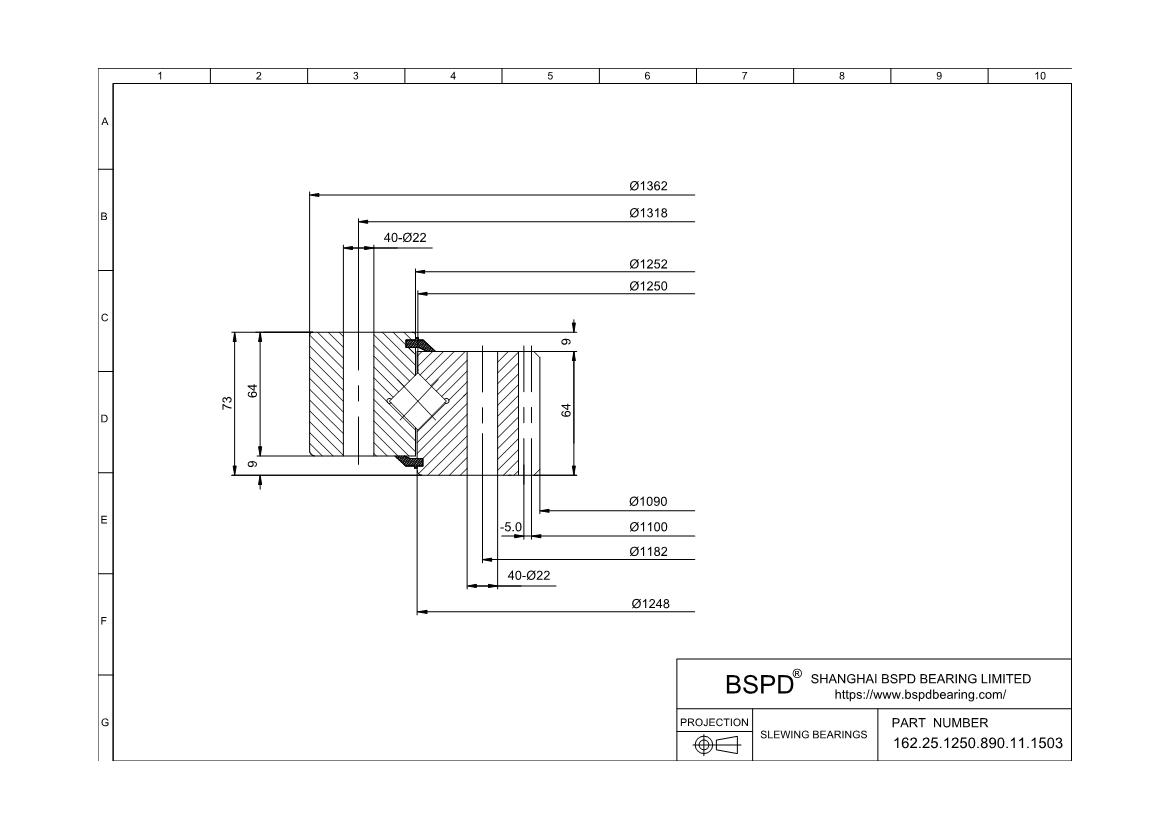

162.25.1250.890.11.1503
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1090 mm； Outer Diameter: 1362 mm； Width (Thickness): 73 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 162.25.1250.890.11.1503 |
| Series | Series 16 |
| Gear | Internal gear |
| Type | Roller |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1090 mm |
| Outside Diameter Of Outer Ring | 1248 mm |
| Internal Diameter On Outer Ring | 1362 mm |
| Height Of Overall Bearing Assembly | 73 mm |
| Height Of Inner Ring | 64 mm |
| Height Of Outer Ring | 64 mm |
| External Diameter On Inner Ring | 1252 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 213 Kg |
| Bolt Circle In Inner Ring | 1182 mm |
| Bolt Circle In Outer Ring | 1318 mm |
| Size Of Hole In Inner Ring | 22 mm |
| Size Of Hole In Outer Ring | 22 mm |
| Number Holes In Inner Ring | 40 |
| Number Holes In Outer Ring | 40 |
| Diametral Pitch | 1100 mm |
| Number Of Gear Teeth | 110 |
| Permissible Tooth Forces T | 40.1 |
| Max Gear Tooth Load Fz | 80.2 |
| Diameter Of Bearing Raceway | 1250 mm |
| Distance Between Bottom Outer Ring Inner Ring | 9 mm |
| Correspond | FIG2 |
| x·m | -5 |
| K | 9 mm |
| F19 | 1248 mm |
| n1 | 8 |
| Bolt Size (M) | 20 mm |
| M | 10 |
| F | 64 mm |
| RoHS | Compliant |
