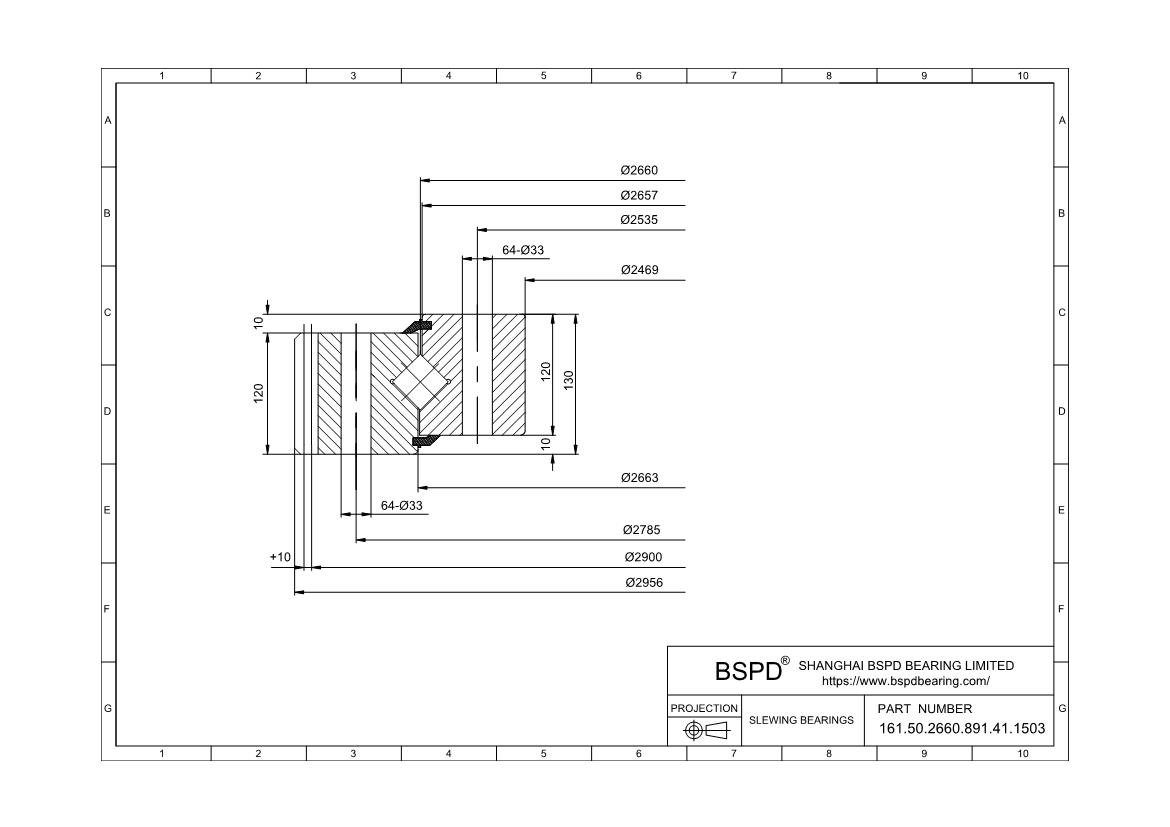

161.50.2660.891.41.1503
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 2469 mm； Outer Diameter: 2956 mm； Width (Thickness): 130 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 161.50.2660.891.41.1503 |
| Series | Series 16 |
| Gear | External gear |
| Type | Roller |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 2469 mm |
| Outside Diameter Of Outer Ring | 2956 mm |
| Internal Diameter On Outer Ring | 2663 mm |
| Height Of Overall Bearing Assembly | 130 mm |
| Height Of Inner Ring | 120 mm |
| Height Of Outer Ring | 120 mm |
| External Diameter On Inner Ring | 2657 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 1544 Kg |
| Bolt Circle In Inner Ring | 2535 mm |
| Bolt Circle In Outer Ring | 2785 mm |
| Size Of Hole In Inner Ring | 33 mm |
| Size Of Hole In Outer Ring | 33 mm |
| Number Holes In Inner Ring | 64 |
| Number Holes In Outer Ring | 64 |
| Diametral Pitch | 2900 mm |
| Number Of Gear Teeth | 145 |
| Permissible Tooth Forces T | 208.6 |
| Max Gear Tooth Load Fz | 417.2 |
| Diameter Of Bearing Raceway | 2660 mm |
| Distance Between Bottom Outer Ring Inner Ring | 10 mm |
| Correspond | FIG1 |
| x·m | +10 |
| k·m | -2 |
| K | 10 mm |
| n1 | 12 |
| Bolt Size (M) | 30 mm |
| M | 20 |
| F | 120 mm |
| RoHS | Compliant |
