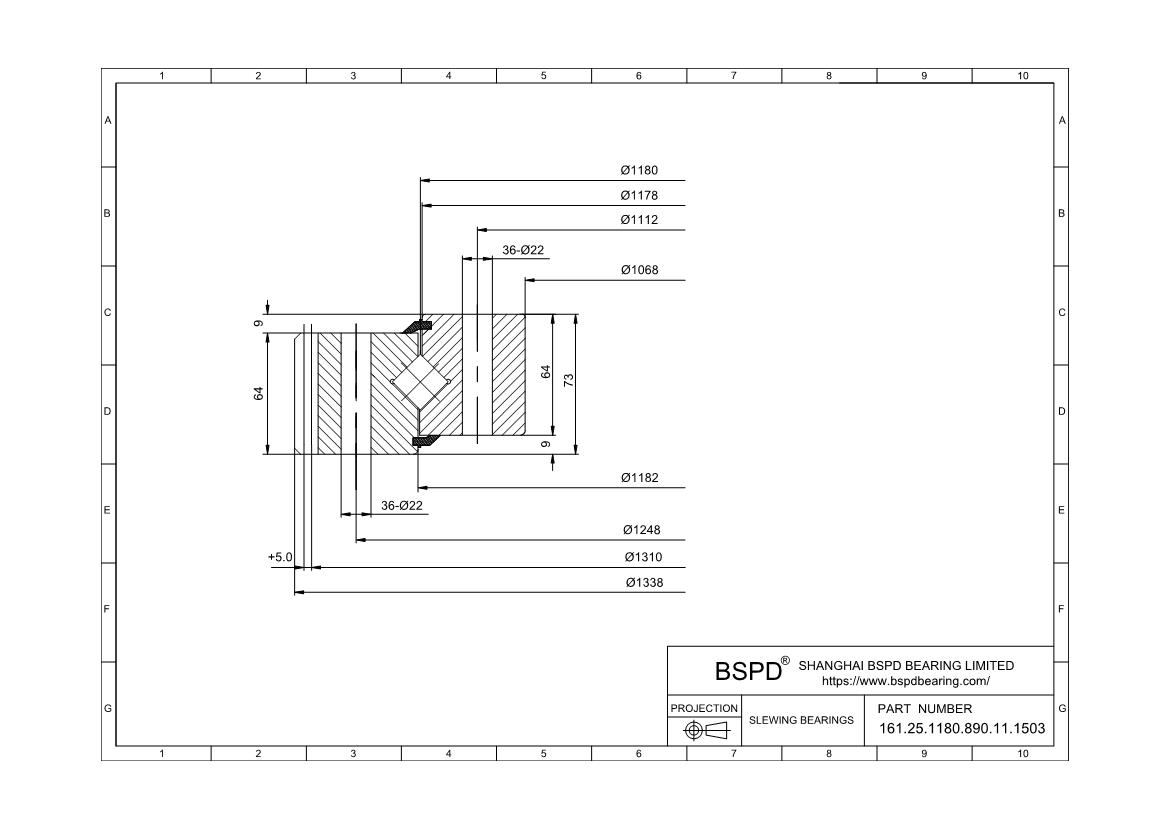

161.25.1180.890.11.1503
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1068 mm； Outer Diameter: 1338 mm； Width (Thickness): 72 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 161.25.1180.890.11.1503 |
| Series | Series 16 |
| Gear | External gear |
| Type | Roller |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1068 mm |
| Outside Diameter Of Outer Ring | 1338 mm |
| Internal Diameter On Outer Ring | 1182 mm |
| Height Of Overall Bearing Assembly | 72 mm |
| Height Of Inner Ring | 64 mm |
| Height Of Outer Ring | 64 mm |
| External Diameter On Inner Ring | 1178 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 206 Kg |
| Bolt Circle In Inner Ring | 1112 mm |
| Bolt Circle In Outer Ring | 1248 mm |
| Size Of Hole In Inner Ring | 22 mm |
| Size Of Hole In Outer Ring | 22 mm |
| Number Holes In Inner Ring | 36 |
| Number Holes In Outer Ring | 36 |
| Diametral Pitch | 1310 mm |
| Number Of Gear Teeth | 131 |
| Permissible Tooth Forces T | 40.1 |
| Max Gear Tooth Load Fz | 80.2 |
| Diameter Of Bearing Raceway | 1180 mm |
| Distance Between Bottom Outer Ring Inner Ring | 9 mm |
| Correspond | FIG1 |
| x·m | +5.0 |
| k·m | -1.0 |
| K | 9 mm |
| n1 | 6 |
| Bolt Size (M) | 20 mm |
| M | 10 |
| F | 64 mm |
| RoHS | Compliant |
