161.25.1120.890.11.1503
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1008 mm； Outer Diameter: 1278 mm； Width (Thickness): 73 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 161.25.1120.890.11.1503 |
| Series | Series 16 |
| Gear | External gear |
| Type | Roller |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1008 mm |
| Outside Diameter Of Outer Ring | 1278 mm |
| Internal Diameter On Outer Ring | 1122 mm |
| Height Of Overall Bearing Assembly | 73 mm |
| Height Of Inner Ring | 64 mm |
| Height Of Outer Ring | 64 mm |
| External Diameter On Inner Ring | 1118 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 195 Kg |
| Bolt Circle In Inner Ring | 1052 mm |
| Bolt Circle In Outer Ring | 1188 mm |
| Size Of Hole In Inner Ring | 22 mm |
| Size Of Hole In Outer Ring | 22 mm |
| Number Holes In Inner Ring | 36 |
| Number Holes In Outer Ring | 36 |
| Diametral Pitch | 1250 mm |
| Number Of Gear Teeth | 125 |
| Permissible Tooth Forces T | 40.1 |
| Max Gear Tooth Load Fz | 80.2 |
| Diameter Of Bearing Raceway | 1120 mm |
| Distance Between Bottom Outer Ring Inner Ring | 9 mm |

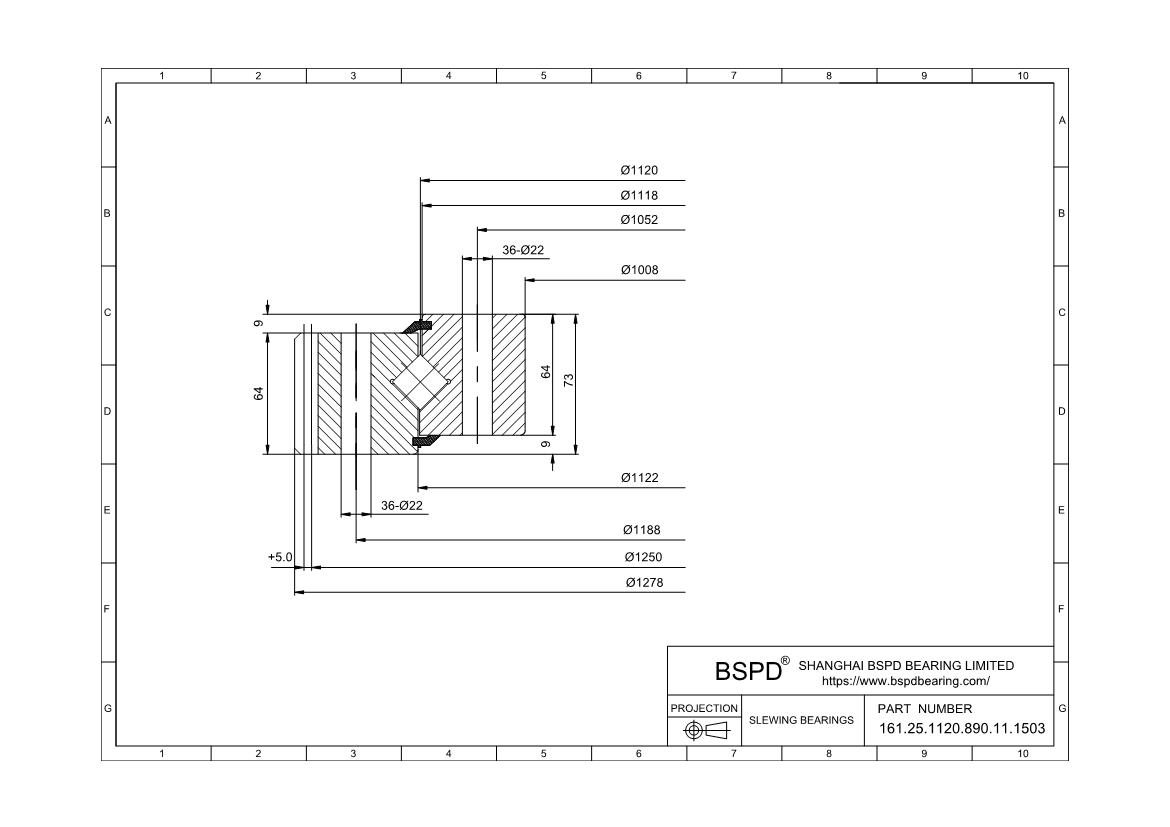

| Correspond | FIG1 |
| x·m | +5.0 |
| k·m | -1.0 |
| K | 9 mm |
| n1 | 6 |
| Bolt Size (M) | 20 mm |
| M | 10 |
| F | 64 mm |
| RoHS | Compliant |
