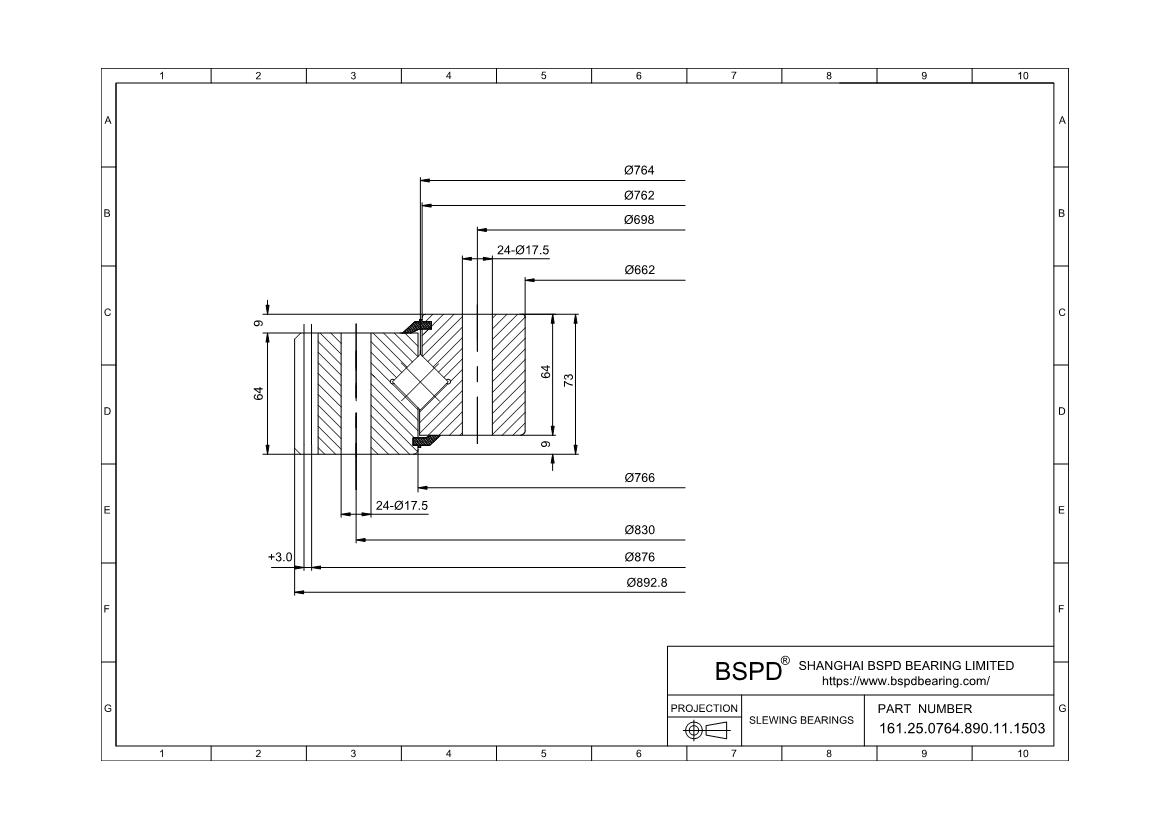

161.25.0764.890.11.1503
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 636 mm； Outer Diameter: 866 mm； Width (Thickness): 73 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 161.25.0764.890.11.1503 |
| Series | Series 16 |
| Gear | External gear |
| Type | Roller |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 636 mm |
| Outside Diameter Of Outer Ring | 866 mm |
| Internal Diameter On Outer Ring | 762 mm |
| Height Of Overall Bearing Assembly | 73 mm |
| Height Of Inner Ring | 64 mm |
| Height Of Outer Ring | 64 mm |
| External Diameter On Inner Ring | 766 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 116 Kg |
| Bolt Circle In Inner Ring | 698 mm |
| Bolt Circle In Outer Ring | 830 mm |
| Size Of Hole In Inner Ring | 17.5 mm |
| Size Of Hole In Outer Ring | 17.5 mm |
| Number Holes In Inner Ring | 24 |
| Number Holes In Outer Ring | 24 |
| Diametral Pitch | 642 mm |
| Number Of Gear Teeth | 107 |
| Permissible Tooth Forces T | 24.1 |
| Max Gear Tooth Load Fz | 48.2 |
| Diameter Of Bearing Raceway | 764 mm |
| Distance Between Bottom Outer Ring Inner Ring | 9 mm |
| Correspond | FIG1 |
| x·m | -3 |
| K | 9 mm |
| n1 | 4 |
| Bolt Size (M) | 16 mm |
| M | 6 |
| F | 64 mm |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
