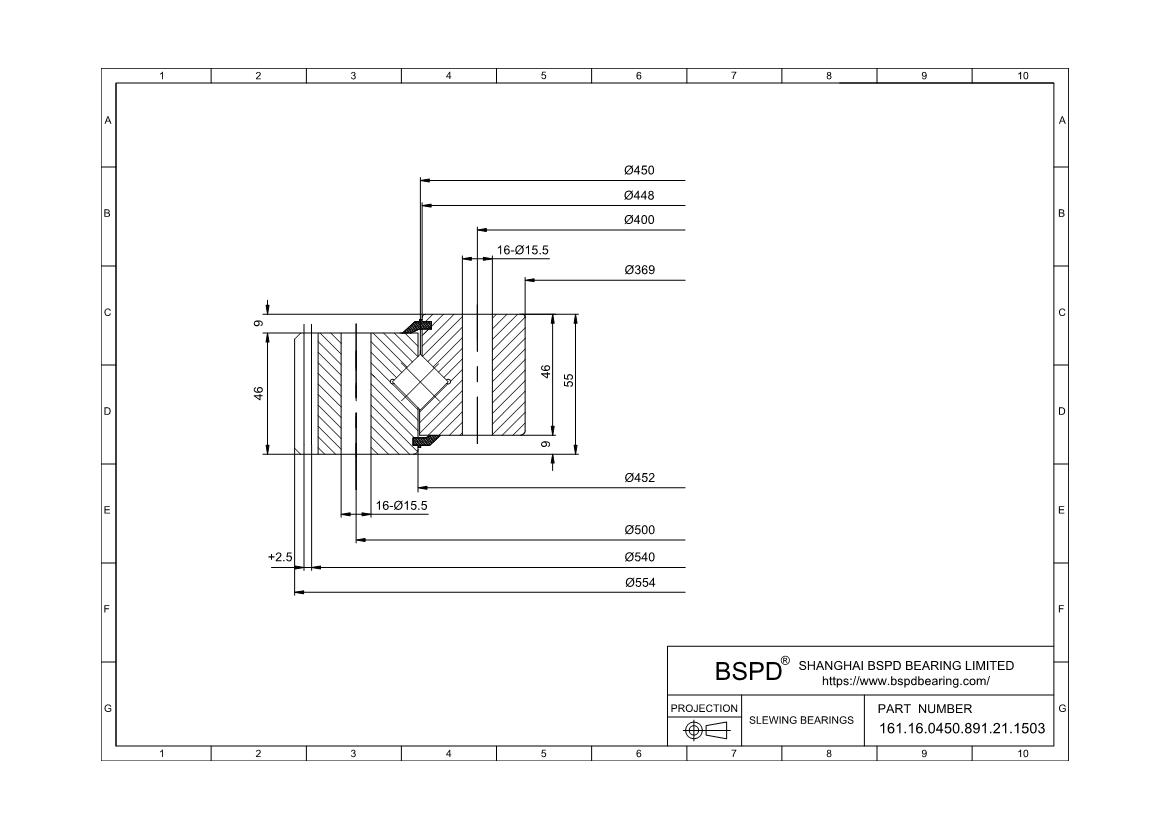

161.16.0450.891.21.1503
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 369 mm； Outer Diameter: 554 mm； Width (Thickness): 55 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 161.16.0450.891.21.1503 |
| Series | Series 16 |
| Gear | External gear |
| Type | Roller |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 369 mm |
| Outside Diameter Of Outer Ring | 554 mm |
| Internal Diameter On Outer Ring | 452 mm |
| Height Of Overall Bearing Assembly | 55 mm |
| Height Of Inner Ring | 46 mm |
| Height Of Outer Ring | 46 mm |
| External Diameter On Inner Ring | 448 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 41 Kg |
| Bolt Circle In Inner Ring | 400 mm |
| Bolt Circle In Outer Ring | 500 mm |
| Size Of Hole In Inner Ring | 15.5 mm |
| Size Of Hole In Outer Ring | 15.5 mm |
| Number Holes In Inner Ring | 16 |
| Number Holes In Outer Ring | 16 |
| Diametral Pitch | 540 mm |
| Number Of Gear Teeth | 108 |
| Permissible Tooth Forces T | 22.2 |
| Max Gear Tooth Load Fz | 44.4 |
| Diameter Of Bearing Raceway | 891 mm |
| Distance Between Bottom Outer Ring Inner Ring | 9 mm |
| Correspond | FIG1 |
| x·m | +2.5 |
| k·m | -0.5 |
| K | 9 mm |
| n1 | 2 |
| Bolt Size (M) | 14 mm |
| M | 5 |
| F | 46 mm |
| RoHS | Compliant |
