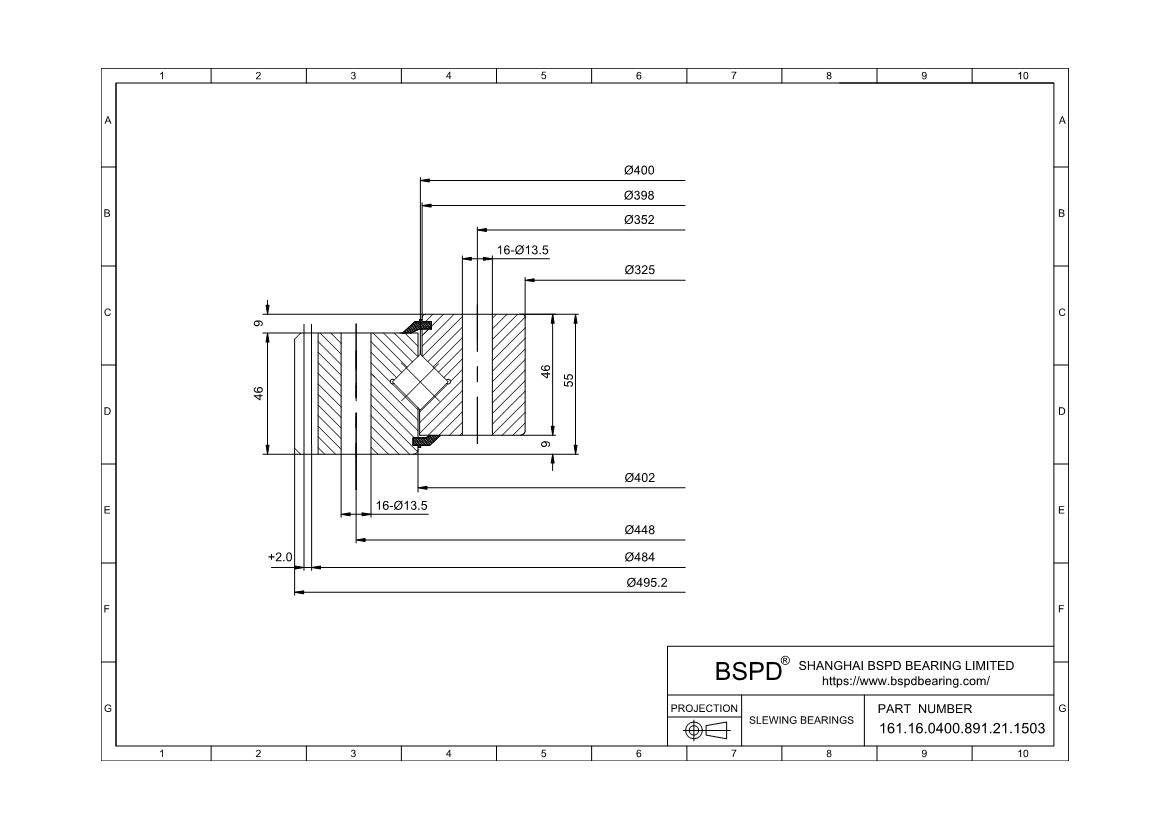

161.16.0400.891.21.1503
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 325 mm； Outer Diameter: 495.2 mm； Width (Thickness): 55 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 161.16.0400.891.21.1503 |
| Series | Series 16 |
| Gear | External gear |
| Type | Roller |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 325 mm |
| Outside Diameter Of Outer Ring | 495.2 mm |
| Internal Diameter On Outer Ring | 402 mm |
| Height Of Overall Bearing Assembly | 55 mm |
| Height Of Inner Ring | 46 mm |
| Height Of Outer Ring | 46 mm |
| External Diameter On Inner Ring | 398 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 33 Kg |
| Bolt Circle In Inner Ring | 352 mm |
| Bolt Circle In Outer Ring | 448 mm |
| Size Of Hole In Inner Ring | 13.5 mm |
| Size Of Hole In Outer Ring | 13.5 mm |
| Number Holes In Inner Ring | 16 |
| Number Holes In Outer Ring | 16 |
| Diametral Pitch | 484 mm |
| Number Of Gear Teeth | 121 |
| Permissible Tooth Forces T | 17.7 |
| Max Gear Tooth Load Fz | 35.5 |
| Diameter Of Bearing Raceway | 891 mm |
| Distance Between Bottom Outer Ring Inner Ring | 9 mm |
| Correspond | FIG1 |
| x·m | +2 |
| k·m | -0.4 |
| K | 9 mm |
| n1 | 2 |
| Bolt Size (M) | 12 mm |
| M | 4 |
| F | 46 mm |
| RoHS | Compliant |
