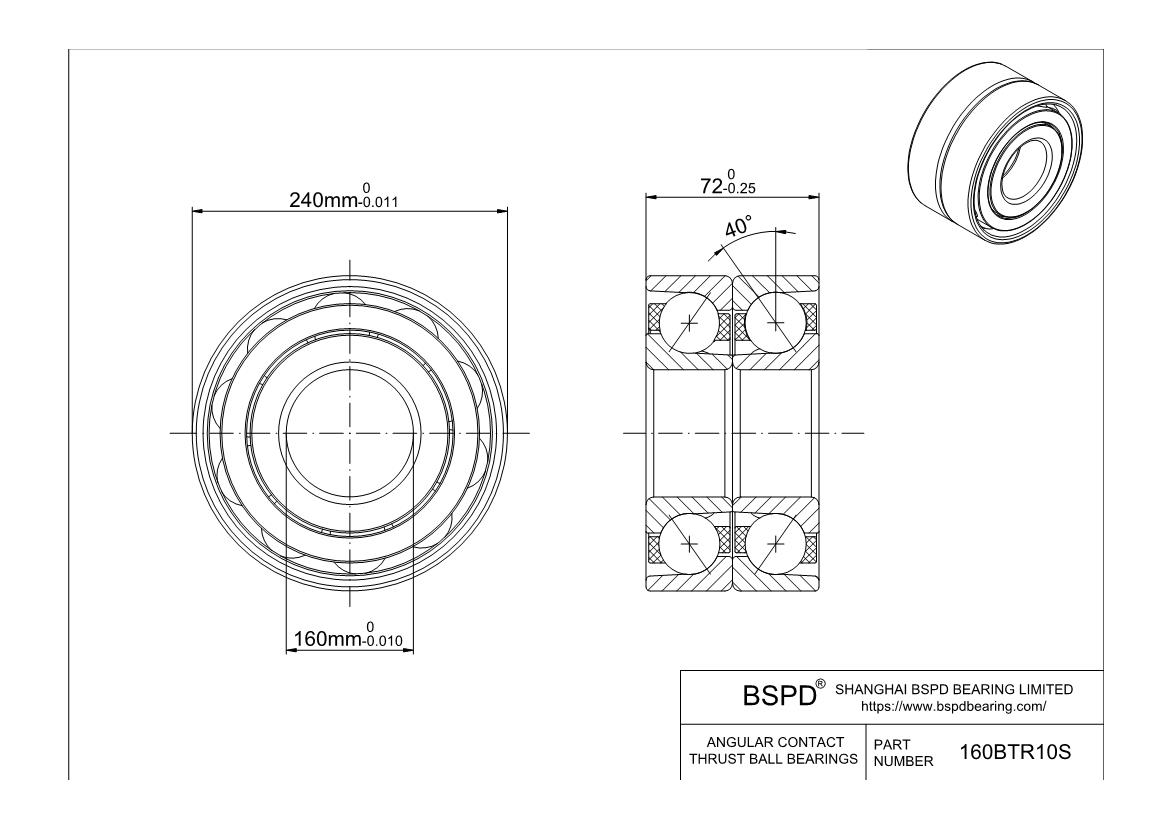

160BTR10S
Angular Contact Thrust Ball Bearings
Dimensions: Bore (Inner) Diameter: 160 mm； Outer Diameter: 240 mm； Width (Thickness): 72 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Combined Radial and Thrust |
| Construction | Two |
| Single Row/Double Row | Single |
| Seal Type | Open |
| Precision Rating | P4A (ABEC-7) |
| Contact Angle | 40 |
| Part Number | 160BTR10S |
| Arrangement | DB (back-to-back arrangement) |
| Bore Dia (d) | 160 mm |
| Bore Dia Tolerance | -0.01mm to 0 |
| Outer Dia (D) | 240 mm |
| Outer Dia Tolerance | -0.011mm to 0 |
| Width (B) | 72 mm |
| Width Tolerance | -0.25mm to 0 |
| Ring Material | 52100 Chrome steel |
| Ball Material | Ceramic Ball Si3N4 |
| Cage Material | TYN (ball guided polyamide resin cage) |
| Dynamic Load Rating (Cr) (KN) | 119 |
| Static Load Rating (Cor) (KN) | 293 |
| Axial Load (KN) | 184 |
| Max Speed (Grease) (RPM) | 3300 |
| Max Speed (Oil) (RPM) | 4300 |
| Preload | EL (extra light preload) |
| L (light preload) | |
| CP (special preload) | |
| CA (special axial clearance) | |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -40 to 120 ºC |
| Weight (grams) | 5330 |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Super Precision Bearings 160BTR10S ? Angular Contact Thrust Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
