121.40.5000.990.41.1502 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 4776 mm； Outer Diameter: 5276 mm； Width (Thickness): 183 mm;

121.40.5000.990.41.1502
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number121.40.5000.990.41.1502
SeriesSeries 12
GearExternal gear
TypeRoller
System of MeasurementMetric
Inside Diameter Of Inner Ring4776 mm
Outside Diameter Of Outer Ring5276 mm
Internal Diameter On Outer Ring20 mm
Height Of Overall Bearing Assembly183 mm
Height Of Inner Ring133 mm
Height Of Outer Ring2.0 mm
External Diameter On Inner Ring5220 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly4082 Kg
Permissible Tooth Forces T231.3
Max Gear Tooth Load Fz462.6
Diameter Of Bearing Raceway5000 mm

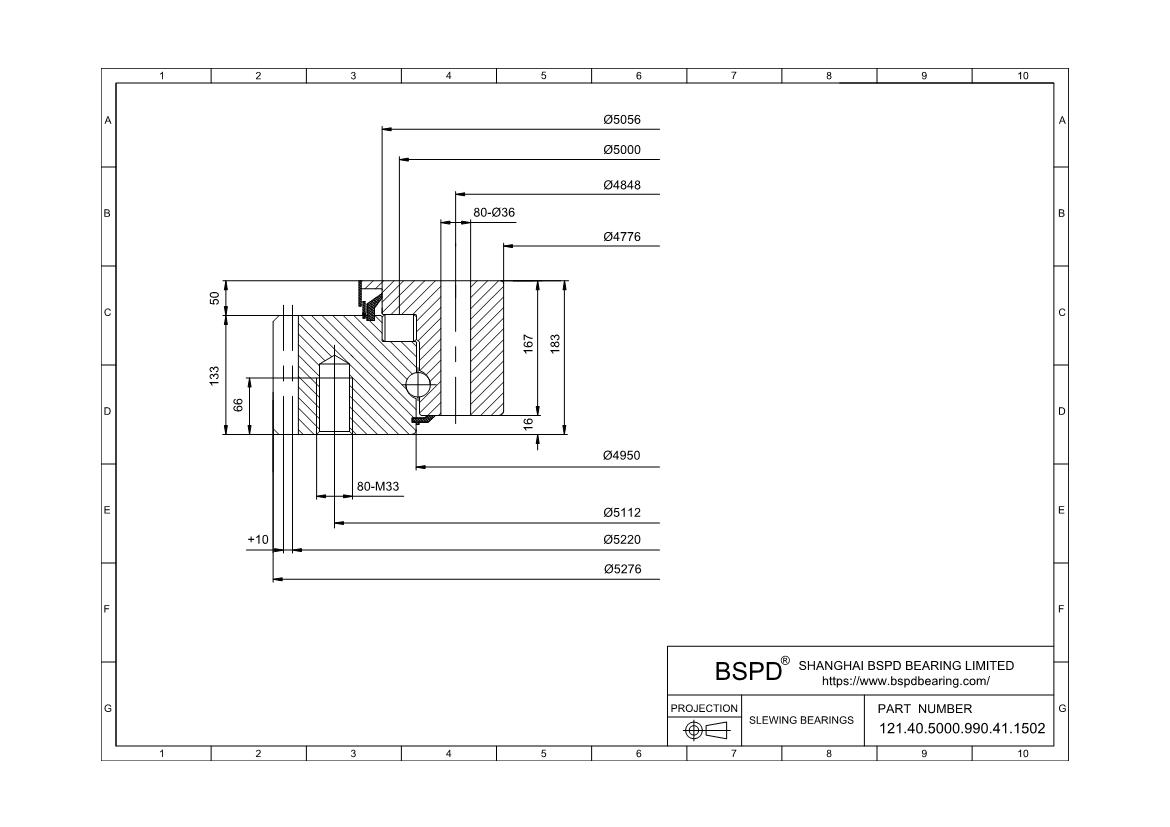

CorrespondFIG1
K16 mm
RoHSCompliant
121.40.5000.990.41.1502
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Slewing Bearings 121.40.5000.990.41.1502 ? Metric Size Slewing Rings (2) Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
