12-20 0311/1-32202
IMO Slewing Rings & Slewing drives

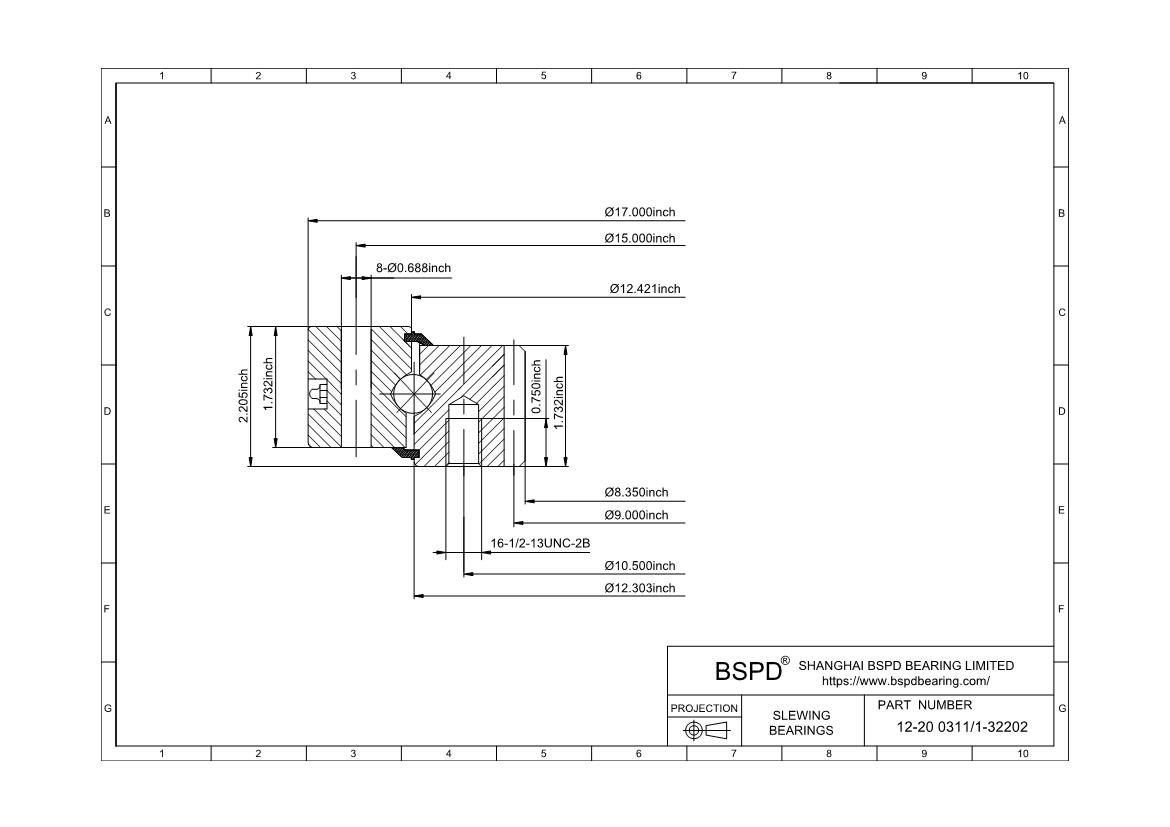

Dimensions: Bore (Inner) Diameter: 8.35； Outer Diameter: 17.0； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 12-20 0311/1-32202 |
| Gear | Internal toothed |
| Geometry | |
| Weight(G) | 49 |
| Outside diameter outer ring(Da) | 17 |
| Inside diameter inner ring(di) | 8.35 |
| inside diameter outer ring(Di) | 12.421 |
| Outside diameter inner ring (da) | 12.303 |
| Outside bole-hole circle diameter (La) | |
| intside bole-hole circle diameter (Li) | |
| Mounting Holes | |
| Pitch circle diameter Outer Ring (La) | 15 |
| Number Holes in Outer Ring (na) | 8 |
| Pitch circle diameter Inner Ring (Li) | 10.5 |
| Number Holes in Inner Ring (ni) | 16 |
| Gearing and Tooth Forces | |
| Pitch Circle Diameter (do) | 9 |
| Diametral Pitch (Pd) | 4 |
| Number of Teeth (Z2) | 36 |
| Permissible tooth force (fz norm)(lbs) | 2830 |
| Maximum perissible tooth force (fz max)(lbs) | 6290 |
| Load Rating | |
| Static Co rad(lbs) | 43163 |
| Static Co Max(lbs) | 100714 |
| Dynamic C rad(lbs) | 31473 |
| Dynamic C Max(lbs) | 31473 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 12-20 0311/1-32202 ? IMO Slewing Rings & Slewing drives Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
