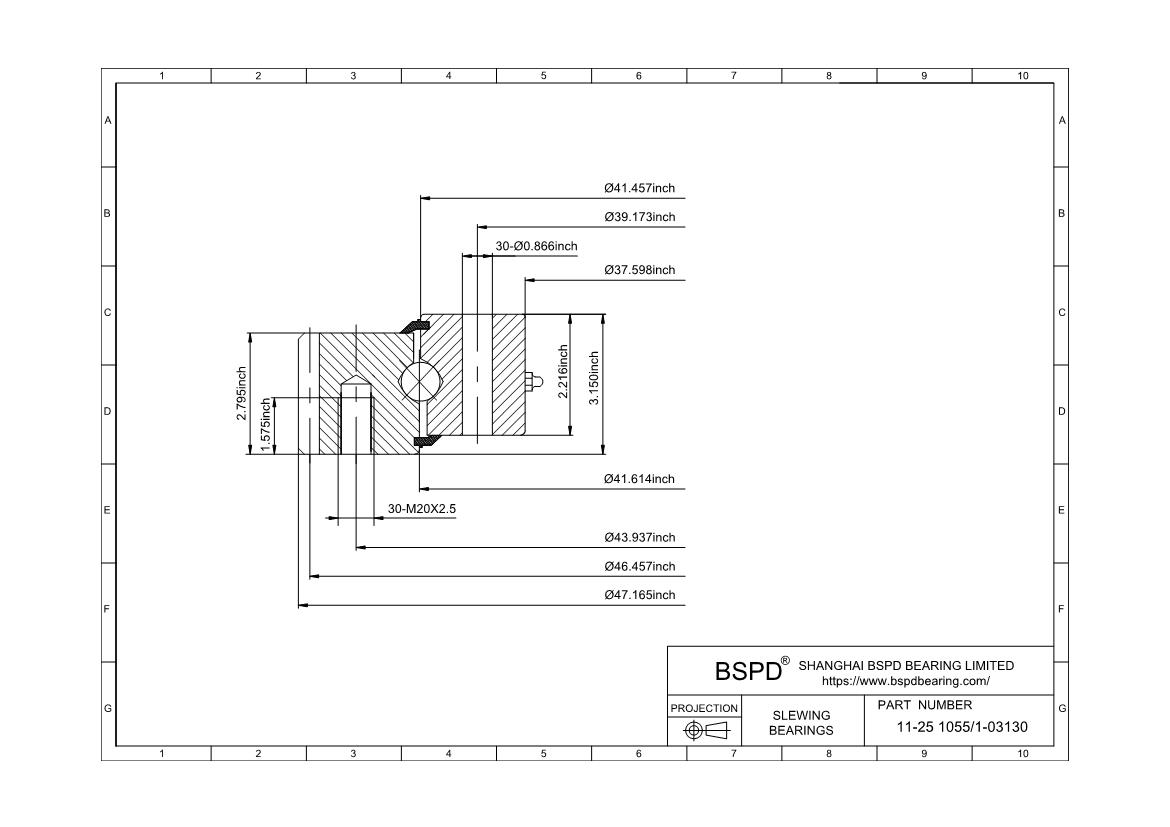

11-25 1055/1-03130
IMO Slewing Rings & Slewing drives
Dimensions: Bore (Inner) Diameter: 37.598； Outer Diameter: 47.165； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 11-25 1055/1-03130 |
| Gear | External toothed |
| Geometry | |
| Weight(G) | 377 |
| Outside diameter outer ring(Da) | 47.165 |
| Inside diameter inner ring(di) | 37.598 |
| inside diameter outer ring(Di) | 41.614 |
| Outside diameter inner ring (da) | 41.457 |
| Outside bole-hole circle diameter (La) | |
| intside bole-hole circle diameter (Li) | |
| Mounting Holes | |
| Pitch circle diameter Outer Ring (La) | 43.937 |
| Number Holes in Outer Ring (na) | 30 |
| Pitch circle diameter Inner Ring (Li) | 39.173 |
| Number Holes in Inner Ring (ni) | 30 |
| Gearing and Tooth Forces | |
| Pitch Circle Diameter (do) | 46.457 |
| Diametral Pitch (Pd) | |
| Number of Teeth (Z2) | 118 |
| Permissible tooth force (fz norm)(lbs) | 9667 |
| Maximum perissible tooth force (fz max)(lbs) | 17085 |
| Load Rating | |
| Static Co rad(lbs) | 236274 |
| Static Co Max(lbs) | 632388 |
| Dynamic C rad(lbs) | 76435 |
| Dynamic C Max(lbs) | 89024 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 11-25 1055/1-03130 ? IMO Slewing Rings & Slewing drives Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
