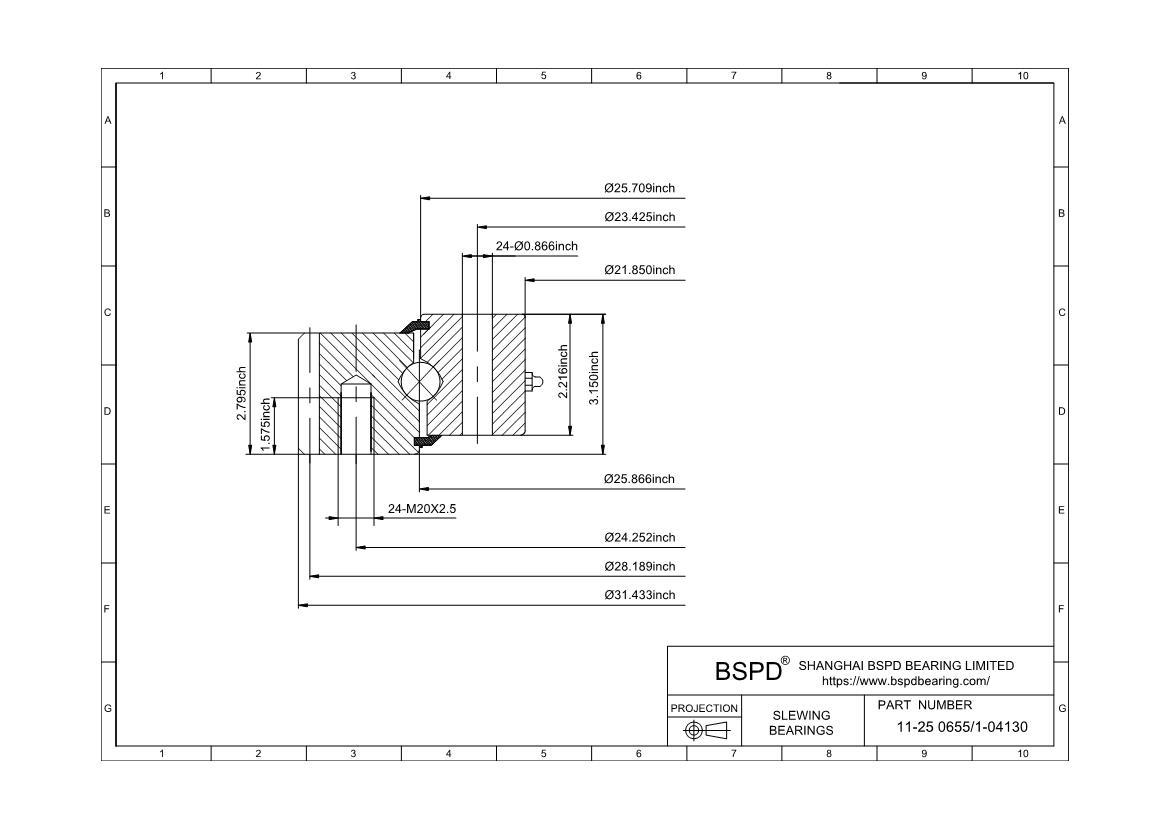

11-25 0655/1-04130
IMO Slewing Rings & Slewing drives
Dimensions: Bore (Inner) Diameter: 21.85； Outer Diameter: 31.433； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 11-25 0655/1-04130 |
| Gear | External toothed |
| Geometry | |
| Weight(G) | 245 |
| Outside diameter outer ring(Da) | 31.433 |
| Inside diameter inner ring(di) | 21.85 |
| inside diameter outer ring(Di) | 25.866 |
| Outside diameter inner ring (da) | 25.709 |
| Outside bole-hole circle diameter (La) | |
| intside bole-hole circle diameter (Li) | |
| Mounting Holes | |
| Pitch circle diameter Outer Ring (La) | 28.189 |
| Number Holes in Outer Ring (na) | 24 |
| Pitch circle diameter Inner Ring (Li) | 23.425 |
| Number Holes in Inner Ring (ni) | 24 |
| Gearing and Tooth Forces | |
| Pitch Circle Diameter (do) | 30.866 |
| Diametral Pitch (Pd) | |
| Number of Teeth (Z2) | 98 |
| Permissible tooth force (fz norm)(lbs) | 6295 |
| Maximum perissible tooth force (fz max)(lbs) | 11690 |
| Load Rating | |
| Static Co rad(lbs) | 146800 |
| Static Co Max(lbs) | 392516 |
| Dynamic C rad(lbs) | 63846 |
| Dynamic C Max(lbs) | 74412 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 11-25 0655/1-04130 ? IMO Slewing Rings & Slewing drives Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
