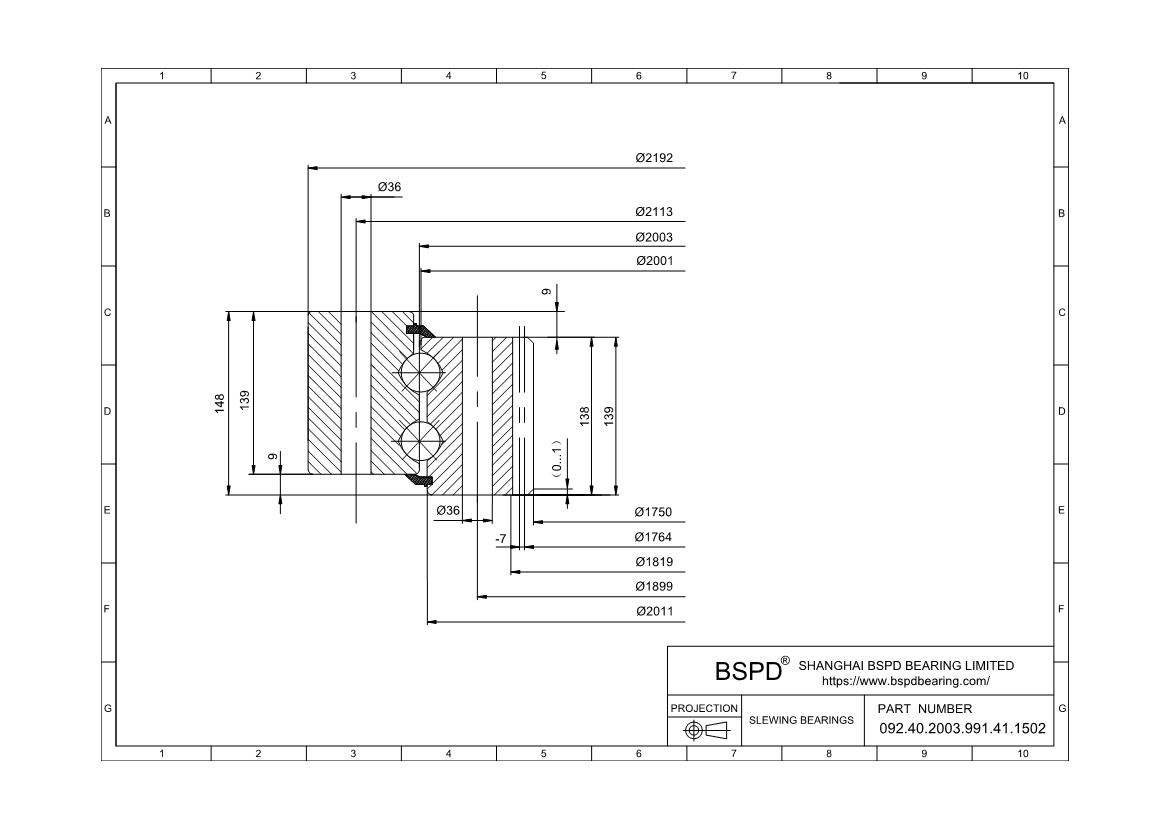

092.40.2003.991.41.1502
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1750 mm； Outer Diameter: 2192 mm； Width (Thickness): 148 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 092.40.2003.991.41.1502 |
| Series | Series 09 |
| Gear | Internal gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1750 mm |
| Outside Diameter Of Outer Ring | 2011 mm |
| Internal Diameter On Outer Ring | 2192 mm |
| Height Of Overall Bearing Assembly | 148 mm |
| Height Of Inner Ring | 139 mm |
| Height Of Outer Ring | 139 mm |
| External Diameter On Inner Ring | 2001 mm |
| External Diameter On Outer Ring | 1819 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 1221 Kg |
| Bolt Circle In Inner Ring | 1899 mm |
| Bolt Circle In Outer Ring | 2113 mm |
| Size Of Hole In Inner Ring | 36 mm |
| Size Of Hole In Outer Ring | 36 mm |
| Number Holes In Inner Ring | 60 |
| Number Holes In Outer Ring | 60 |
| Diametral Pitch | 1764 mm |
| Number Of Gear Teeth | 126 |
| Permissible Tooth Forces T | 168.00 |
| Max Gear Tooth Load Fz | 336.00 |
| Diameter Of Bearing Raceway | 2003 mm |
| Distance Between Bottom Outer Ring Inner Ring | 9 mm |
| Correspond | FIG2 |
| x·m | +7 |
| K | 9 mm |
| F19 | 2011 mm |
| n1 | 10 |
| Bolt Size (M) | 33 mm |
| M | 14 |
| F | 138 mm |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 092.40.2003.991.41.1502 ? Metric Size Slewing Rings (2) Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
