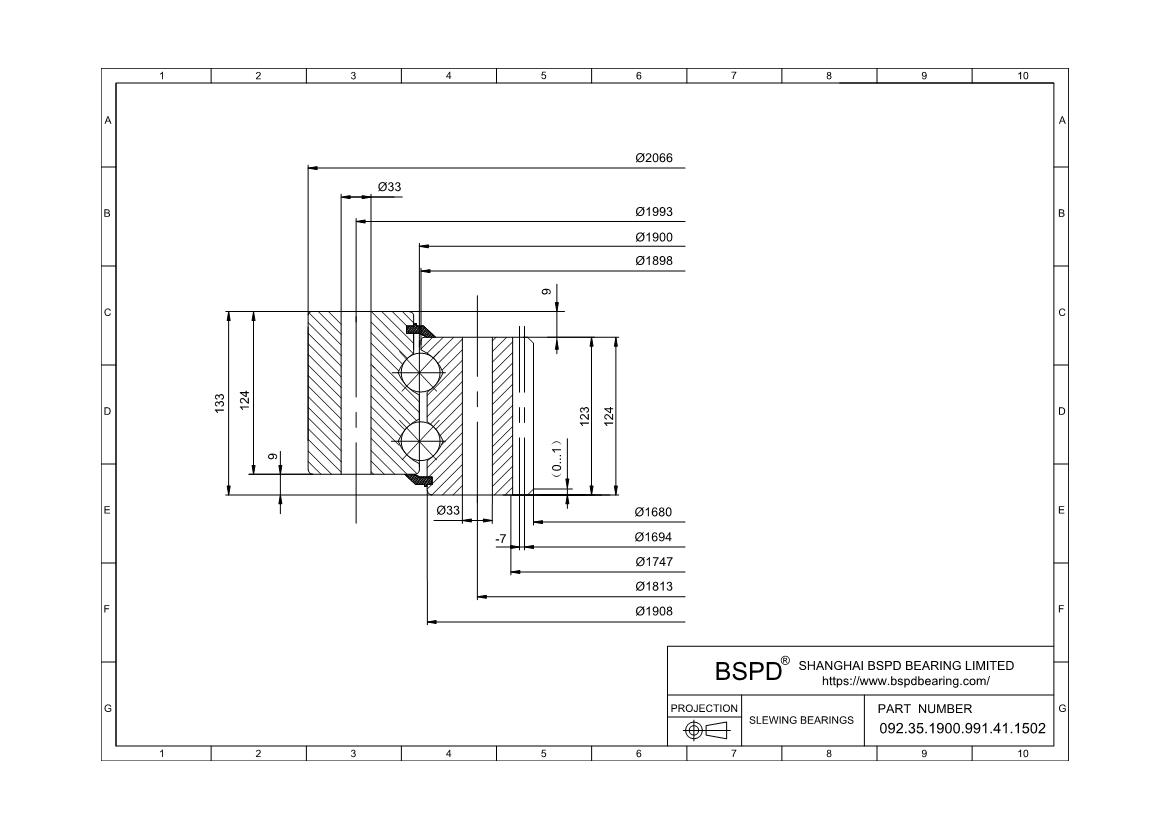

092.35.1900.991.41.1502
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1680 mm； Outer Diameter: 2066 mm； Width (Thickness): 133 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 092.35.1900.991.41.1502 |
| Series | Series 09 |
| Gear | Internal gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1680 mm |
| Outside Diameter Of Outer Ring | 1908 mm |
| Internal Diameter On Outer Ring | 2066 mm |
| Height Of Overall Bearing Assembly | 133 mm |
| Height Of Inner Ring | 124 mm |
| Height Of Outer Ring | 124 mm |
| External Diameter On Inner Ring | 1898 mm |
| External Diameter On Outer Ring | 1747 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 884 Kg |
| Bolt Circle In Inner Ring | 1813 mm |
| Bolt Circle In Outer Ring | 1993 mm |
| Size Of Hole In Inner Ring | 33 mm |
| Size Of Hole In Outer Ring | 33 mm |
| Number Holes In Inner Ring | 64 |
| Number Holes In Outer Ring | 64 |
| Diametral Pitch | 1694 mm |
| Number Of Gear Teeth | 121 |
| Permissible Tooth Forces T | 158.06 |
| Max Gear Tooth Load Fz | 316.12 |
| Diameter Of Bearing Raceway | 1900 mm |
| Distance Between Bottom Outer Ring Inner Ring | 9 mm |
| Correspond | FIG2 |
| x·m | -7 |
| K | 9 mm |
| F19 | 1908 mm |
| n1 | 8 |
| Bolt Size (M) | 30 mm |
| M | 14 |
| F | 123 mm |
| RoHS | Compliant |
