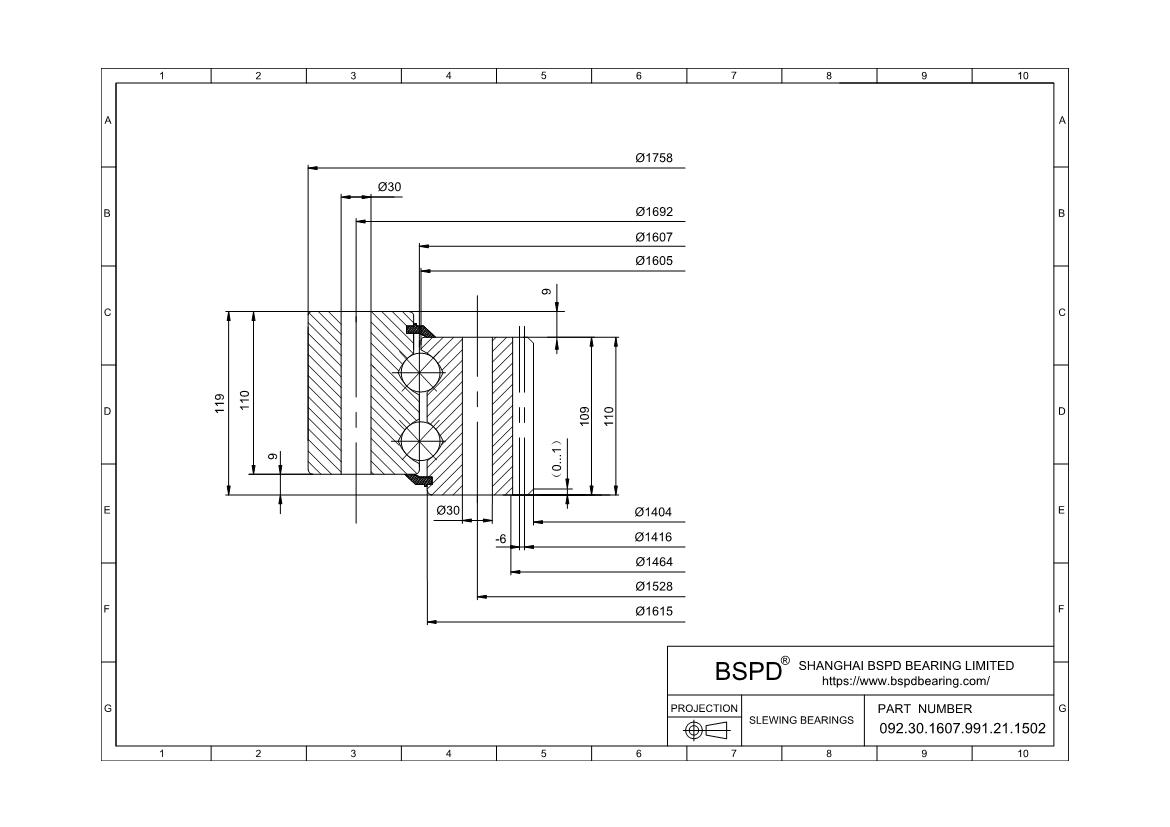

092.30.1607.991.21.1502
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1404 mm； Outer Diameter: 1758 mm； Width (Thickness): 119 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 092.30.1607.991.21.1502 |
| Series | Series 09 |
| Gear | Internal gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1404 mm |
| Outside Diameter Of Outer Ring | 1615 mm |
| Internal Diameter On Outer Ring | 1758 mm |
| Height Of Overall Bearing Assembly | 119 mm |
| Height Of Inner Ring | 110 mm |
| Height Of Outer Ring | 110 mm |
| External Diameter On Inner Ring | 1605 mm |
| External Diameter On Outer Ring | 1464 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 613 Kg |
| Bolt Circle In Inner Ring | 1528 mm |
| Bolt Circle In Outer Ring | 1692 mm |
| Size Of Hole In Inner Ring | 30 mm |
| Size Of Hole In Outer Ring | 30 mm |
| Number Holes In Inner Ring | 60 |
| Number Holes In Outer Ring | 60 |
| Diametral Pitch | 1416 mm |
| Number Of Gear Teeth | 118 |
| Permissible Tooth Forces T | 120.06 |
| Max Gear Tooth Load Fz | 240.12 |
| Diameter Of Bearing Raceway | 1607 mm |
| Distance Between Bottom Outer Ring Inner Ring | 9 mm |
| Correspond | FIG2 |
| x·m | -6 |
| K | 9 mm |
| F19 | 1615 mm |
| n1 | 6 |
| Bolt Size (M) | 27 mm |
| M | 12 |
| F | 109 mm |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
