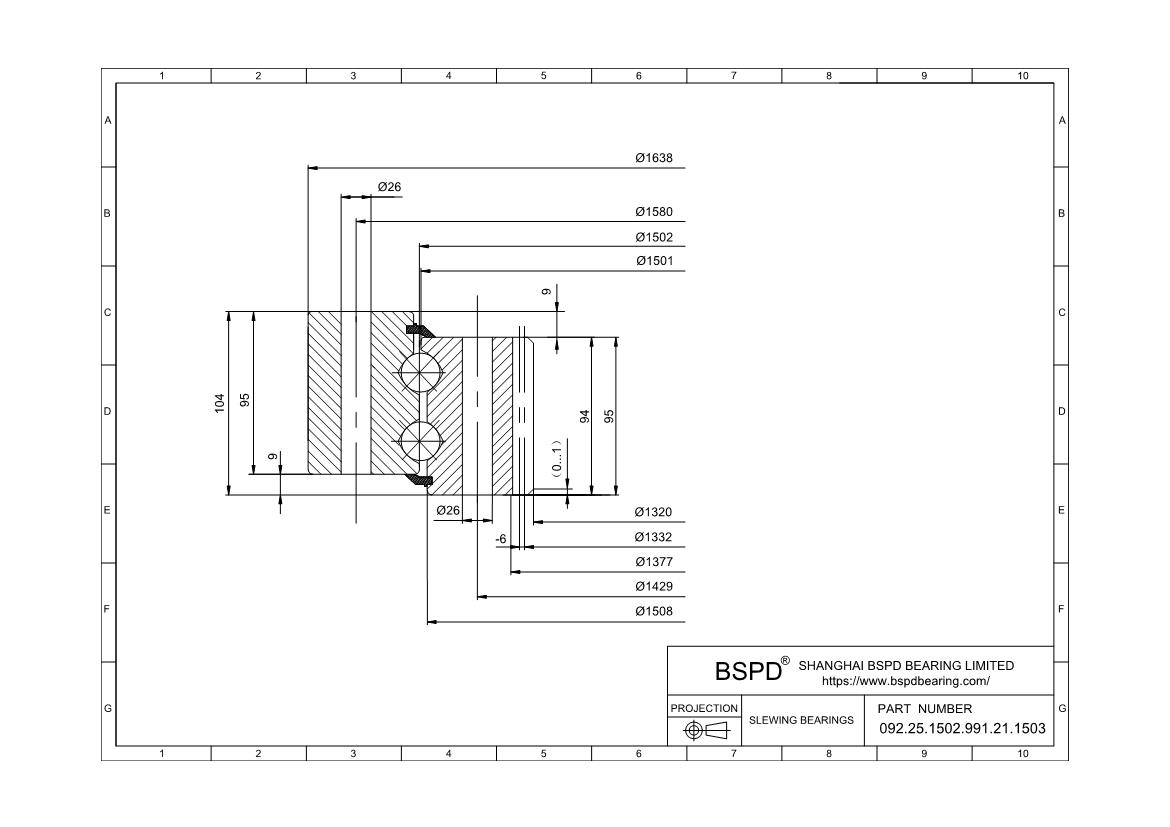

092.25.1502.991.21.1503
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1320 mm； Outer Diameter: 1638 mm； Width (Thickness): 104 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 092.25.1502.991.21.1503 |
| Series | Series 09 |
| Gear | Internal gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1320 mm |
| Outside Diameter Of Outer Ring | 1508 mm |
| Internal Diameter On Outer Ring | 1638 mm |
| Height Of Overall Bearing Assembly | 104 mm |
| Height Of Inner Ring | 95 mm |
| Height Of Outer Ring | 95 mm |
| External Diameter On Inner Ring | 1501 mm |
| External Diameter On Outer Ring | 1377 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 446 Kg |
| Bolt Circle In Inner Ring | 1429 mm |
| Bolt Circle In Outer Ring | 1580 mm |
| Size Of Hole In Inner Ring | 26 mm |
| Size Of Hole In Outer Ring | 26 mm |
| Number Holes In Inner Ring | 64 |
| Number Holes In Outer Ring | 64 |
| Diametral Pitch | 1332 mm |
| Number Of Gear Teeth | 111 |
| Permissible Tooth Forces T | 103.54 |
| Max Gear Tooth Load Fz | 207.07 |
| Diameter Of Bearing Raceway | 1502 mm |
| Distance Between Bottom Outer Ring Inner Ring | 9 mm |
| Correspond | FIG2 |
| x·m | -6 |
| K | 9 mm |
| F19 | 1508 mm |
| n1 | 4 |
| Bolt Size (M) | 24 mm |
| M | 12 |
| F | 94 mm |
| RoHS | Compliant |
