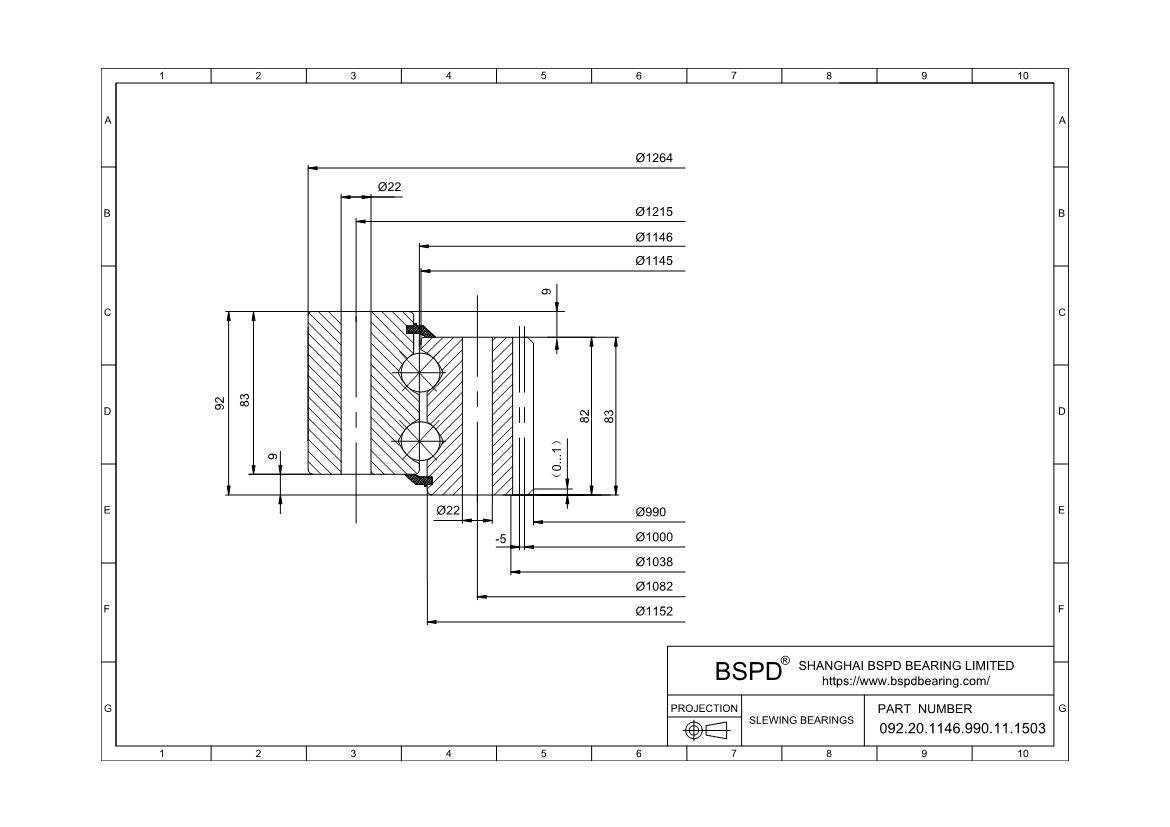

092.20.1146.990.11.1503
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 990 mm； Outer Diameter: 1264 mm； Width (Thickness): 92 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 092.20.1146.990.11.1503 |
| Series | Series 09 |
| Gear | Internal gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 990 mm |
| Outside Diameter Of Outer Ring | 1152 mm |
| Internal Diameter On Outer Ring | 1264 mm |
| Height Of Overall Bearing Assembly | 92 mm |
| Height Of Inner Ring | 83 mm |
| Height Of Outer Ring | 83 mm |
| External Diameter On Inner Ring | 1145 mm |
| External Diameter On Outer Ring | 1038 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 259 Kg |
| Bolt Circle In Inner Ring | 1082 mm |
| Bolt Circle In Outer Ring | 1215 mm |
| Size Of Hole In Inner Ring | 22 mm |
| Size Of Hole In Outer Ring | 22 mm |
| Number Holes In Inner Ring | 56 |
| Number Holes In Outer Ring | 56 |
| Diametral Pitch | 1000 mm |
| Number Of Gear Teeth | 100 |
| Permissible Tooth Forces T | 51.5 |
| Max Gear Tooth Load Fz | 103 |
| Diameter Of Bearing Raceway | 1146 mm |
| Distance Between Bottom Outer Ring Inner Ring | 9 mm |
| Correspond | FIG2 |
| x·m | -5 |
| K | 9 mm |
| F19 | 1152 mm |
| n1 | 4 |
| Bolt Size (M) | 20 mm |
| M | 10 |
| F | 82 mm |
| RoHS | Compliant |
