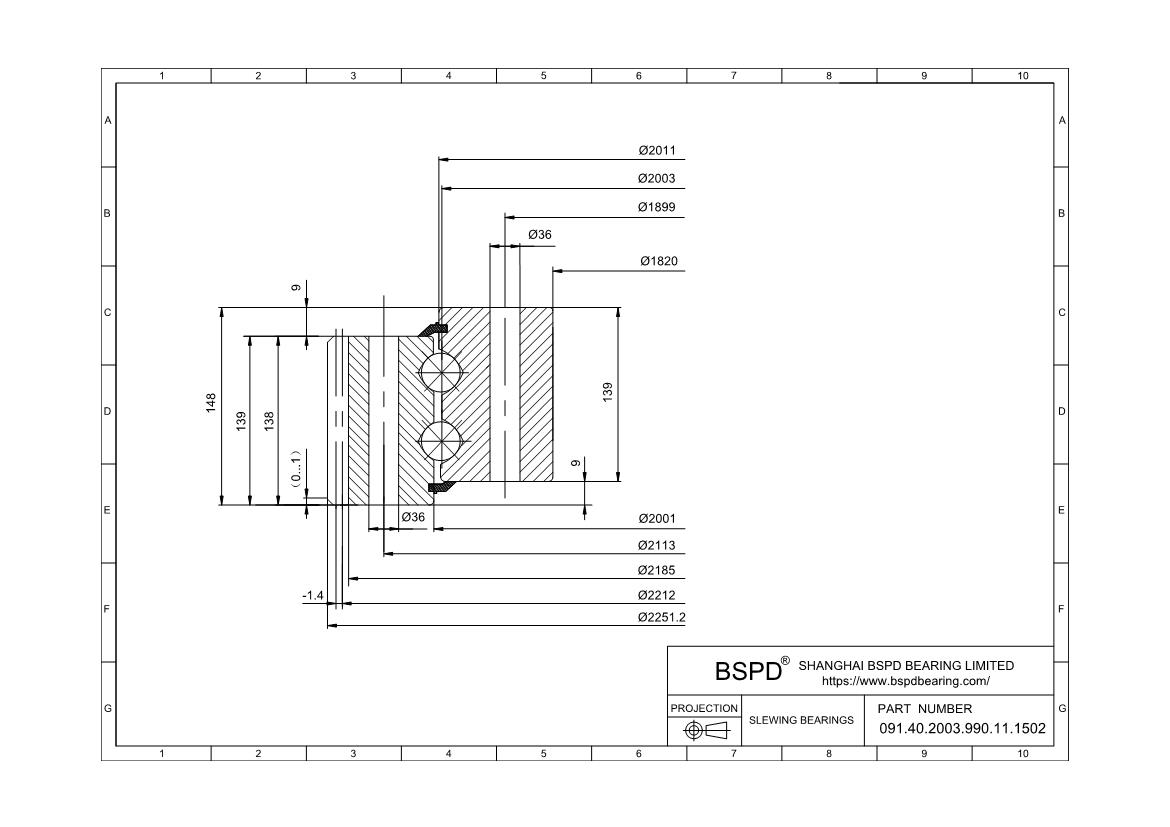

091.40.2003.990.11.1502
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1820 mm； Outer Diameter: 2251.2 mm； Width (Thickness): 148 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 091.40.2003.990.11.1502 |
| Series | Series 09 |
| Gear | External gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1820 mm |
| Outside Diameter Of Outer Ring | 2251.2 mm |
| Internal Diameter On Outer Ring | 2001 mm |
| Height Of Overall Bearing Assembly | 148 mm |
| Height Of Inner Ring | 139 mm |
| Height Of Outer Ring | 139 mm |
| External Diameter On Inner Ring | 2011 mm |
| External Diameter On Outer Ring | 2185 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 1220 Kg |
| Bolt Circle In Inner Ring | 1899 mm |
| Bolt Circle In Outer Ring | 2113 mm |
| Size Of Hole In Inner Ring | 36 mm |
| Size Of Hole In Outer Ring | 36 mm |
| Number Holes In Inner Ring | 60 |
| Number Holes In Outer Ring | 60 |
| Diametral Pitch | 2212 mm |
| Number Of Gear Teeth | 158 |
| Permissible Tooth Forces T | 121.33 |
| Max Gear Tooth Load Fz | 242.67 |
| Diameter Of Bearing Raceway | 2003 mm |
| Distance Between Bottom Outer Ring Inner Ring | 9 mm |
| Correspond | FIG1 |
| x·m | 7 |
| k·m | -1.4 |
| K | 9 mm |
| n1 | 10 |
| Bolt Size (M) | 33 mm |
| M | 14 |
| F | 138 mm |
| RoHS | Compliant |
