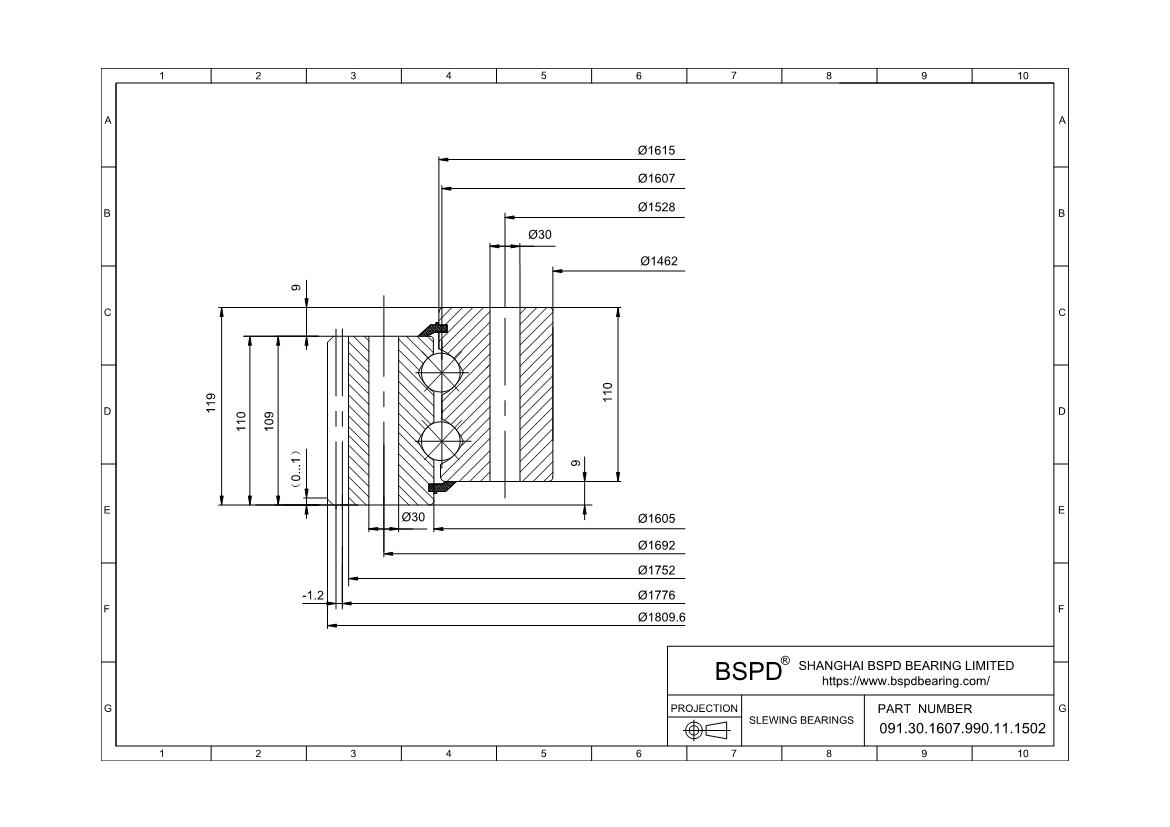

091.30.1607.990.11.1502
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1462 mm； Outer Diameter: 1809.6 mm； Width (Thickness): 119 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 091.30.1607.990.11.1502 |
| Series | Series 09 |
| Gear | External gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1462 mm |
| Outside Diameter Of Outer Ring | 1809.6 mm |
| Internal Diameter On Outer Ring | 1605 mm |
| Height Of Overall Bearing Assembly | 119 mm |
| Height Of Inner Ring | 110 mm |
| Height Of Outer Ring | 110 mm |
| External Diameter On Inner Ring | 1615 mm |
| External Diameter On Outer Ring | 1752 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 619 Kg |
| Bolt Circle In Inner Ring | 1528 mm |
| Bolt Circle In Outer Ring | 1692 mm |
| Size Of Hole In Inner Ring | 30 mm |
| Size Of Hole In Outer Ring | 30 mm |
| Number Holes In Inner Ring | 60 |
| Number Holes In Outer Ring | 60 |
| Diametral Pitch | 1776 mm |
| Number Of Gear Teeth | 148 |
| Permissible Tooth Forces T | 82.14 |
| Max Gear Tooth Load Fz | 164.29 |
| Diameter Of Bearing Raceway | 1607 mm |
| Distance Between Bottom Outer Ring Inner Ring | 9 mm |
| Correspond | FIG1 |
| x·m | 6 |
| k·m | -1.2 |
| K | 9 mm |
| n1 | 6 |
| Bolt Size (M) | 27 mm |
| M | 12 |
| F | 109 mm |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
