091.30.1415.990.11.1502
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1270 mm； Outer Diameter: 1617.6 mm； Width (Thickness): 119 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 091.30.1415.990.11.1502 |
| Series | Series 09 |
| Gear | External gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1270 mm |
| Outside Diameter Of Outer Ring | 1617.6 mm |
| Internal Diameter On Outer Ring | 1413 mm |
| Height Of Overall Bearing Assembly | 119 mm |
| Height Of Inner Ring | 110 mm |
| Height Of Outer Ring | 110 mm |
| External Diameter On Inner Ring | 1423 mm |
| External Diameter On Outer Ring | 1560 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 552 Kg |
| Bolt Circle In Inner Ring | 1336 mm |
| Bolt Circle In Outer Ring | 1500 mm |
| Size Of Hole In Inner Ring | 30 mm |
| Size Of Hole In Outer Ring | 30 mm |
| Number Holes In Inner Ring | 48 |
| Number Holes In Outer Ring | 48 |
| Diametral Pitch | 1584 mm |
| Number Of Gear Teeth | 132 |
| Permissible Tooth Forces T | 82.14 |
| Max Gear Tooth Load Fz | 164.29 |
| Diameter Of Bearing Raceway | 1415 mm |
| Distance Between Bottom Outer Ring Inner Ring | 9 mm |

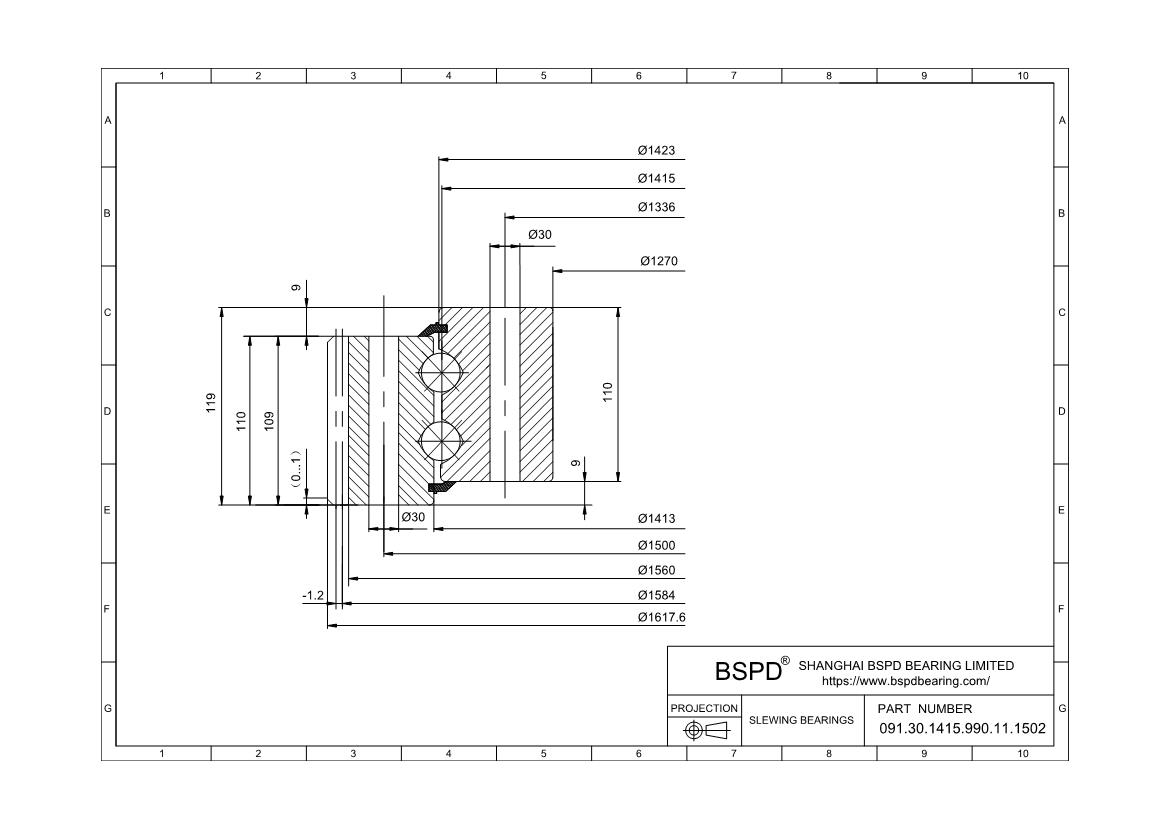

| Correspond | FIG1 |
| x·m | 6 |
| k·m | -1.2 |
| K | 9 mm |
| n1 | 6 |
| Bolt Size (M) | 27 mm |
| M | 12 |
| F | 109 mm |
| RoHS | Compliant |
