08 0340 04

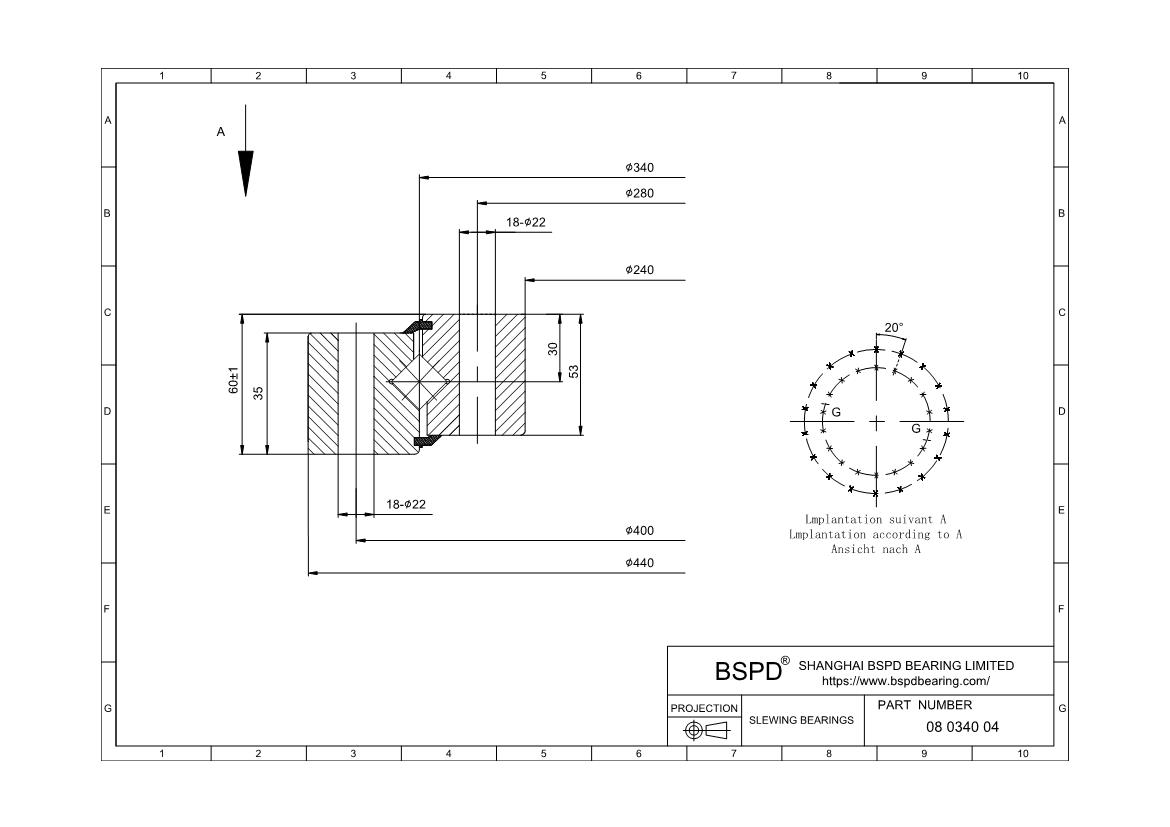

Metric Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 240.0 mm； Outer Diameter: 440.0 mm； Width (Thickness): 60 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 08 0340 04 |
| Gear | Without gear |
| Geometry | |
| External Diameter (DR) | 440 |
| Internal Diameter (di) | 240 |
| Height(H) | 60 |
| Weight(kg) | 37 |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 400 |
| Number Holes in Outer Ring (no) | 18 |
| Bolt Circle in Inner Ring (Li) | 280 |
| Number Holes in Inner Ring (ni) | 18 |
| MEASUREMENTS IN MILLIMETERS | |
| MAXIMUM DEFLECTION | |
| MAXIMUM MEASUREMENT IN 1 POINT | |
Print PDF
Request a 3D CAD Model
