062.30.1600.000.11.1504
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1428 mm； Outer Diameter: 1712 mm； Width (Thickness): 89 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 062.30.1600.000.11.1504 |
| Series | Series 06 |
| Gear | Internal gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1428 mm |
| Outside Diameter Of Outer Ring | 1601 mm |
| Internal Diameter On Outer Ring | 1712 mm |
| Height Of Overall Bearing Assembly | 89 mm |
| Height Of Inner Ring | 63 mm |
| Height Of Outer Ring | 80 mm |
| External Diameter On Inner Ring | 1598 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 334 Kg |
| Bolt Circle In Inner Ring | 1532 mm |
| Bolt Circle In Outer Ring | 1668 mm |
| Size Of Hole In Inner Ring | 22 mm |
| Size Of Hole In Outer Ring | 22 mm |
| Number Holes In Inner Ring | 48 |
| Number Holes In Outer Ring | 48 |
| Diametral Pitch | 1440 mm |
| Number Of Gear Teeth | 120 |
| Permissible Tooth Forces T | 59.55 |
| Max Gear Tooth Load Fz | 119.09 |
| Diameter Of Bearing Raceway | 1600 mm |
| Distance Between Bottom Outer Ring Inner Ring | 26 mm |

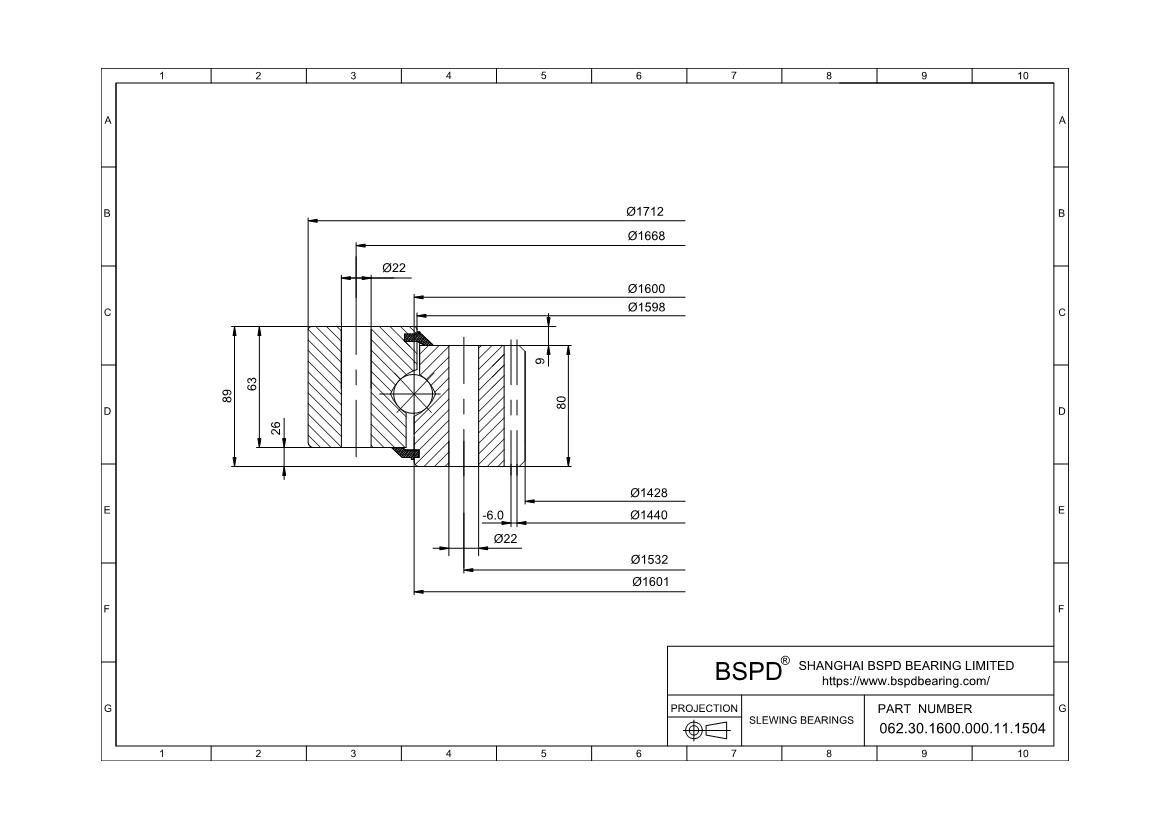

| Correspond | FIG1 |
| x·m | -6 |
| K | 9 mm |
| F19 | 1601 mm |
| n1 | 8 |
| Bolt Size (M) | 20 mm |
| M | 12 |
| F | 79 mm |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 062.30.1600.000.11.1504 ? Metric Size Slewing Rings (2) Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
