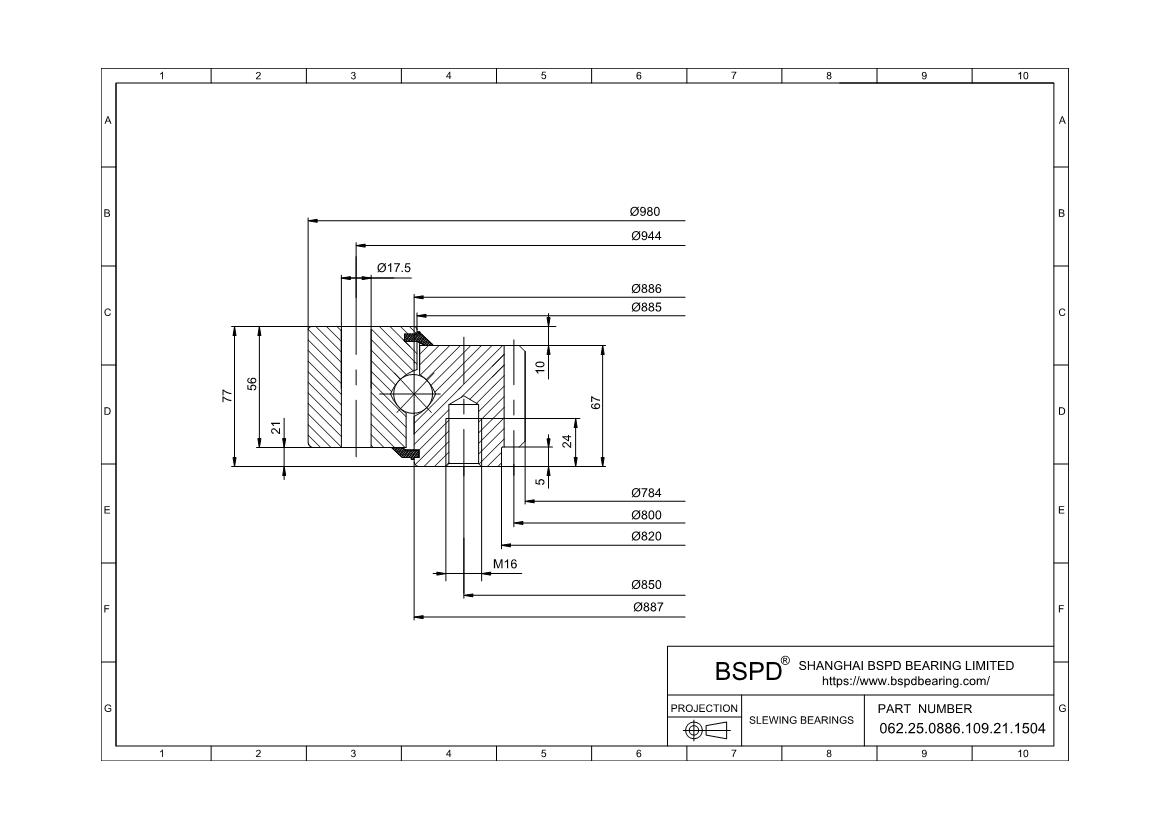

062.25.0886.109.21.1504
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 784 mm； Outer Diameter: 980 mm； Width (Thickness): 77 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 062.25.0886.109.21.1504 |
| Series | Series 06 |
| Gear | Internal gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 784 mm |
| Outside Diameter Of Outer Ring | 887 mm |
| Internal Diameter On Outer Ring | 980 mm |
| Height Of Overall Bearing Assembly | 77 mm |
| Height Of Inner Ring | 56 mm |
| Height Of Outer Ring | 67 mm |
| External Diameter On Inner Ring | 885 mm |
| External Diameter On Outer Ring | 820 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 109 Kg |
| Bolt Circle In Inner Ring | 850 mm |
| Bolt Circle In Outer Ring | 944 mm |
| Size Of Hole In Inner Ring | 17.5 mm |
| Size Of Hole In Outer Ring | 17.5 mm |
| Number Holes In Inner Ring | 36 |
| Number Holes In Outer Ring | 36 |
| Diametral Pitch | 800 mm |
| Number Of Gear Teeth | 100 |
| Tooth Neck Height (Hu) | 5 mm |
| Permissible Tooth Forces T | 43.13 |
| Max Gear Tooth Load Fz | 86.26 |
| Diameter Of Bearing Raceway | 886 mm |
| Distance Between Bottom Outer Ring Inner Ring | 21 mm |
| Correspond | FIG3 |
| x·m | +0.0 |
| K | 10 mm |
| F19 | 887 mm |
| n1 | 6 |
| Bolt Size (M) | 16 mm |
| T | 24 |
| M | 8 |
| F | 62 mm |
| RoHS | Compliant |
