062.20.0450.000.11.1503
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 345 mm； Outer Diameter: 531 mm； Width (Thickness): 55 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 062.20.0450.000.11.1503 |
| Series | Series 06 |
| Gear | Internal gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 345 mm |
| Outside Diameter Of Outer Ring | 451 mm |
| Internal Diameter On Outer Ring | 531 mm |
| Height Of Overall Bearing Assembly | 55 mm |
| Height Of Inner Ring | 46 mm |
| Height Of Outer Ring | 46 mm |
| External Diameter On Inner Ring | 449 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 38 Kg |
| Bolt Circle In Inner Ring | 400 mm |
| Bolt Circle In Outer Ring | 500 mm |
| Size Of Hole In Inner Ring | 15.5 mm |
| Size Of Hole In Outer Ring | 15.5 mm |
| Number Holes In Inner Ring | 16 |
| Number Holes In Outer Ring | 16 |
| Diametral Pitch | 350 mm |
| Number Of Gear Teeth | 70 |
| Permissible Tooth Forces T | 14.13 |
| Max Gear Tooth Load Fz | 28.25 |
| Diameter Of Bearing Raceway | 450 mm |
| Distance Between Bottom Outer Ring Inner Ring | 9 mm |

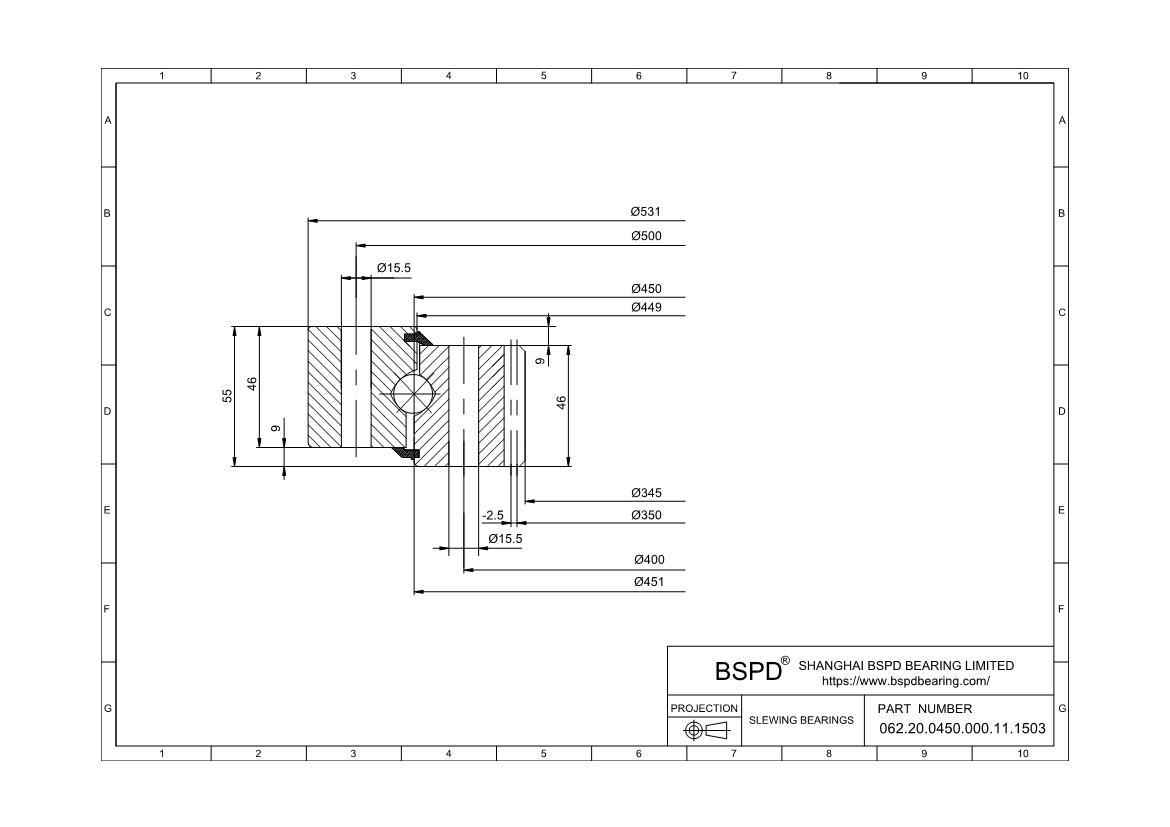

| Correspond | FIG1 |
| k·m | -2.5 |
| K | 9 mm |
| F19 | 451 mm |
| n1 | 2 |
| Bolt Size (M) | 14 mm |
| M | 5 |
| F | 45 mm |
| RoHS | Compliant |
