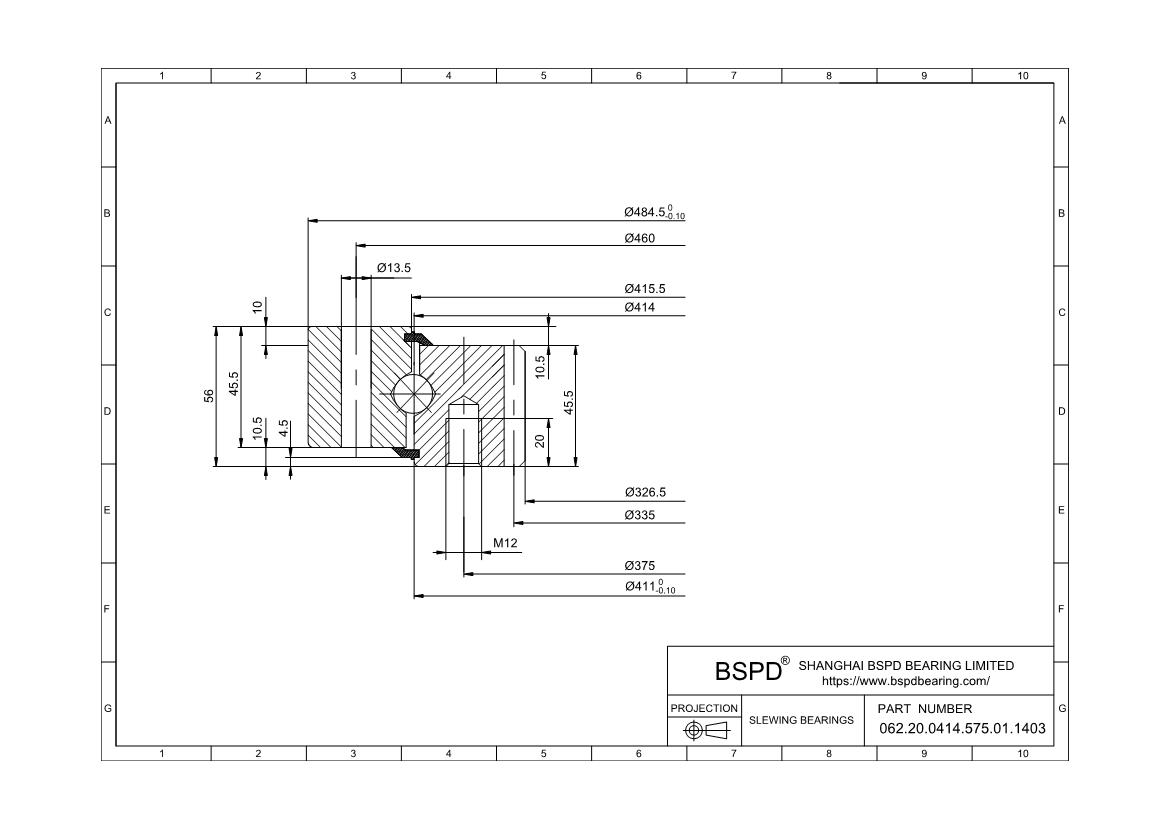

062.20.0414.575.01.1403
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 326.5 mm； Outer Diameter: 484.5 mm； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 062.20.0414.575.01.1403 |
| Series | Series 06 |
| Gear | Internal gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 326.5 mm |
| Outside Diameter Of Outer Ring | 411 mm |
| Internal Diameter On Outer Ring | 484.5 mm |
| Height Of Overall Bearing Assembly | 56 mm |
| Height Of Inner Ring | 45.5 mm |
| Height Of Outer Ring | 45.5 mm |
| External Diameter On Inner Ring | 415.5 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 31 Kg |
| Bolt Circle In Inner Ring | 375 mm |
| Bolt Circle In Outer Ring | 460 mm |
| Size Of Hole In Inner Ring | 13.5 mm |
| Size Of Hole In Outer Ring | 13.5 mm |
| Number Holes In Inner Ring | 24 |
| Number Holes In Outer Ring | 24 |
| Diametral Pitch | 335 mm |
| Number Of Gear Teeth | 67 |
| Permissible Tooth Forces T | 13.54 |
| Max Gear Tooth Load Fz | 27.08 |
| Diameter Of Bearing Raceway | 414 mm |
| Distance Between Bottom Outer Ring Inner Ring | 10.5 mm |
| Correspond | FIG3 |
| k·m | -0.75 |
| K | 10.5 mm |
| F19 | 411 mm |
| Bolt Size (M) | 12 mm |
| T | 20 |
| M | 5 |
| F | 45.5 mm |
| RoHS | Compliant |
