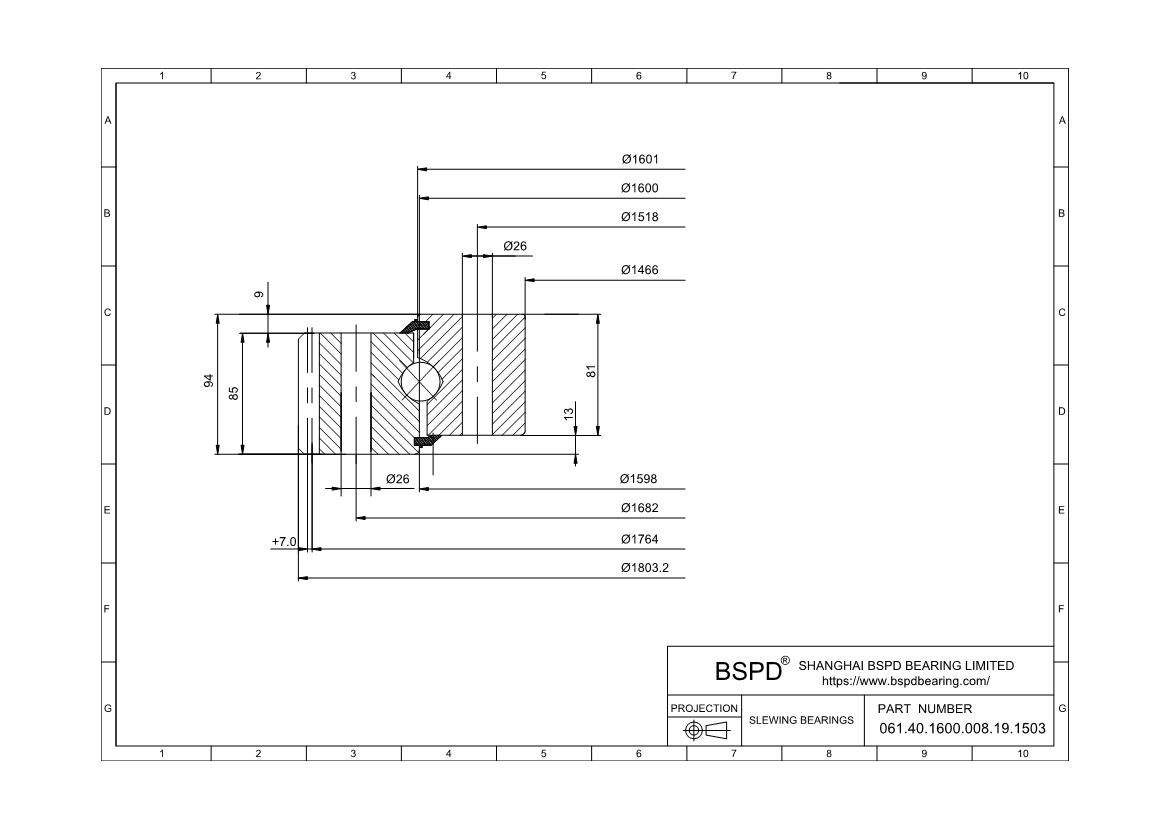

061.40.1600.008.19.1503
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1466 mm； Outer Diameter: 1803.2 mm； Width (Thickness): 94 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 061.40.1600.008.19.1503 |
| Series | Series 06 |
| Gear | External gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1466 mm |
| Outside Diameter Of Outer Ring | 1803.2 mm |
| Internal Diameter On Outer Ring | 1598 mm |
| Height Of Overall Bearing Assembly | 94 mm |
| Height Of Inner Ring | 81 mm |
| Height Of Outer Ring | 85 mm |
| External Diameter On Inner Ring | 1601 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 479 Kg |
| Bolt Circle In Inner Ring | 1518 mm |
| Bolt Circle In Outer Ring | 1682 mm |
| Size Of Hole In Inner Ring | 26 mm |
| Size Of Hole In Outer Ring | 26 mm |
| Number Holes In Inner Ring | 40 |
| Number Holes In Outer Ring | 40 |
| Diametral Pitch | 1764 mm |
| Number Of Gear Teeth | 126 |
| Permissible Tooth Forces T | 73.86 |
| Max Gear Tooth Load Fz | 147.71 |
| Diameter Of Bearing Raceway | 1600 mm |
| Distance Between Bottom Outer Ring Inner Ring | 13 mm |
| Correspond | FIG1 |
| x·m | +7.0 |
| k·m | -1.4 |
| K | 9 mm |
| n1 | 8 |
| Bolt Size (M) | 24 mm |
| M | 14 |
| F | 84 mm |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 061.40.1600.008.19.1503 ? Metric Size Slewing Rings (2) Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
