061.40.1400.001.29.1504 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1266 mm； Outer Diameter: 1593.6 mm； Width (Thickness): 94 mm;

061.40.1400.001.29.1504
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number061.40.1400.001.29.1504
SeriesSeries 06
GearExternal gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring1266 mm
Outside Diameter Of Outer Ring1593.6 mm
Internal Diameter On Outer Ring1398 mm
Height Of Overall Bearing Assembly94 mm
Height Of Inner Ring81 mm
Height Of Outer Ring85 mm
External Diameter On Inner Ring1401 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly404 Kg
Bolt Circle In Inner Ring1318 mm
Bolt Circle In Outer Ring1482 mm
Size Of Hole In Inner Ring26 mm
Size Of Hole In Outer Ring26 mm
Number Holes In Inner Ring36
Number Holes In Outer Ring36
Diametral Pitch1560 mm
Number Of Gear Teeth130
Permissible Tooth Forces T92.52
Max Gear Tooth Load Fz185.04
Diameter Of Bearing Raceway1400 mm
Distance Between Bottom Outer Ring Inner Ring13 mm

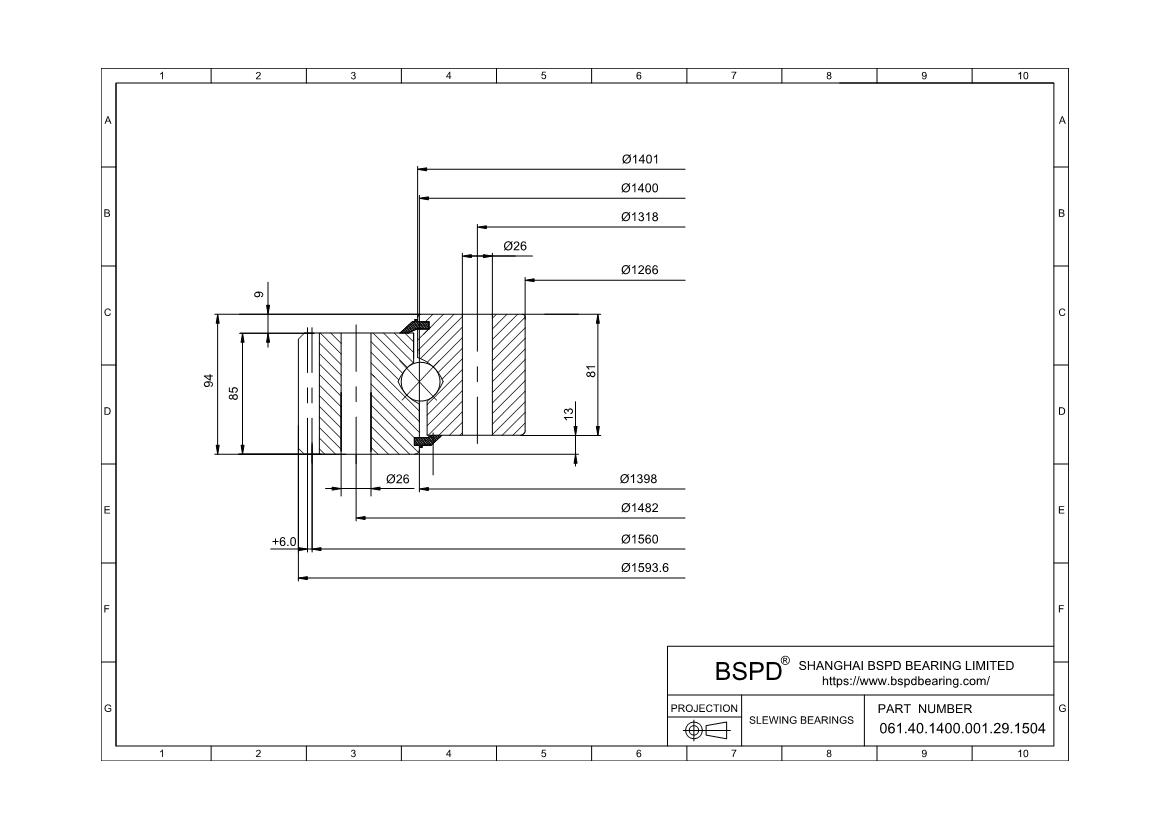

CorrespondFIG1
x·m+6.0
k·m-1.2
K9 mm
n16
Bolt Size (M)24 mm
M12
F84 mm
RoHSCompliant
061.40.1400.001.29.1504
