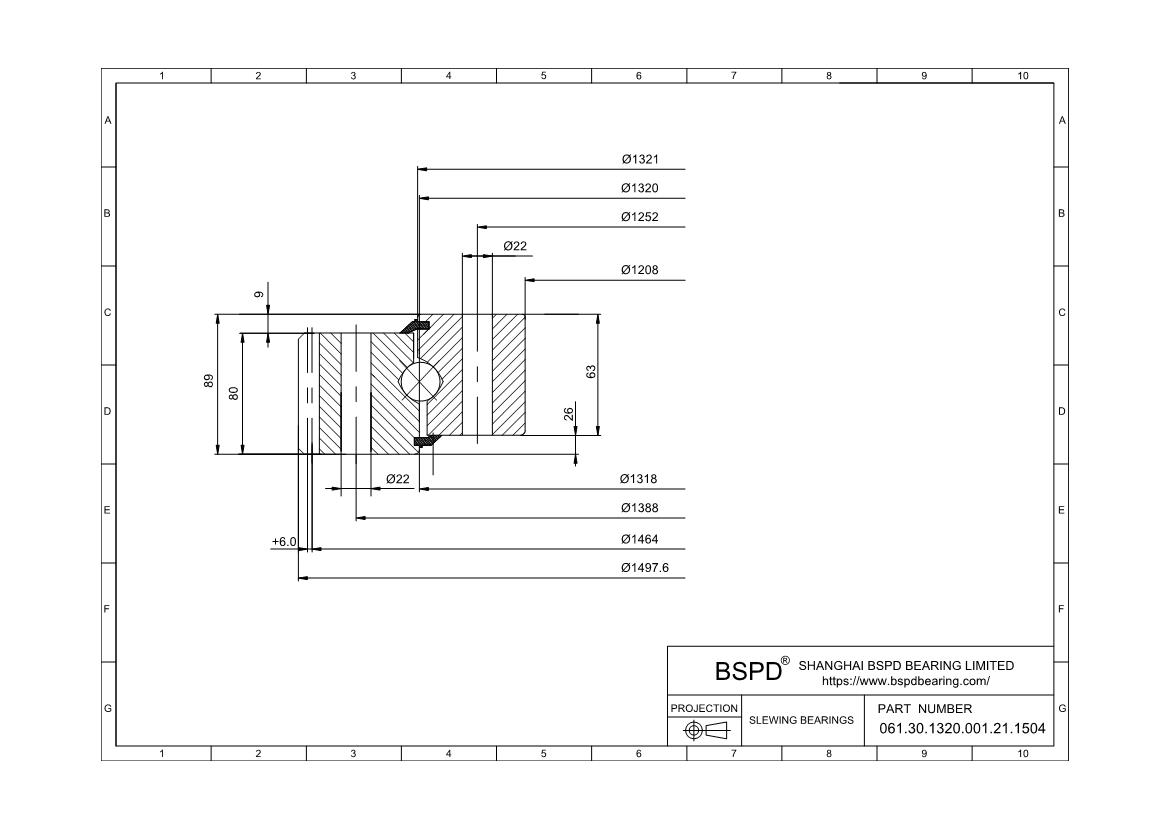

061.30.1320.001.21.1504
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1208 mm； Outer Diameter: 1497.6 mm； Width (Thickness): 89 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 061.30.1320.001.21.1504 |
| Series | Series 06 |
| Gear | External gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1208 mm |
| Outside Diameter Of Outer Ring | 1497.6 mm |
| Internal Diameter On Outer Ring | 1318 mm |
| Height Of Overall Bearing Assembly | 89 mm |
| Height Of Inner Ring | 63 mm |
| Height Of Outer Ring | 80 mm |
| External Diameter On Inner Ring | 1321 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 298 Kg |
| Bolt Circle In Inner Ring | 1252 mm |
| Bolt Circle In Outer Ring | 1388 mm |
| Size Of Hole In Inner Ring | 22 mm |
| Size Of Hole In Outer Ring | 22 mm |
| Number Holes In Inner Ring | 42 |
| Number Holes In Outer Ring | 42 |
| Diametral Pitch | 1464 mm |
| Number Of Gear Teeth | 122 |
| Permissible Tooth Forces T | 87.01 |
| Max Gear Tooth Load Fz | 174.03 |
| Diameter Of Bearing Raceway | 1320 mm |
| Distance Between Bottom Outer Ring Inner Ring | 26 mm |
| Correspond | FIG1 |
| x·m | +6.0 |
| k·m | -1.2 |
| K | 9 mm |
| n1 | 6 |
| Bolt Size (M) | 20 mm |
| M | 12 |
| F | 79 mm |
| RoHS | Compliant |
