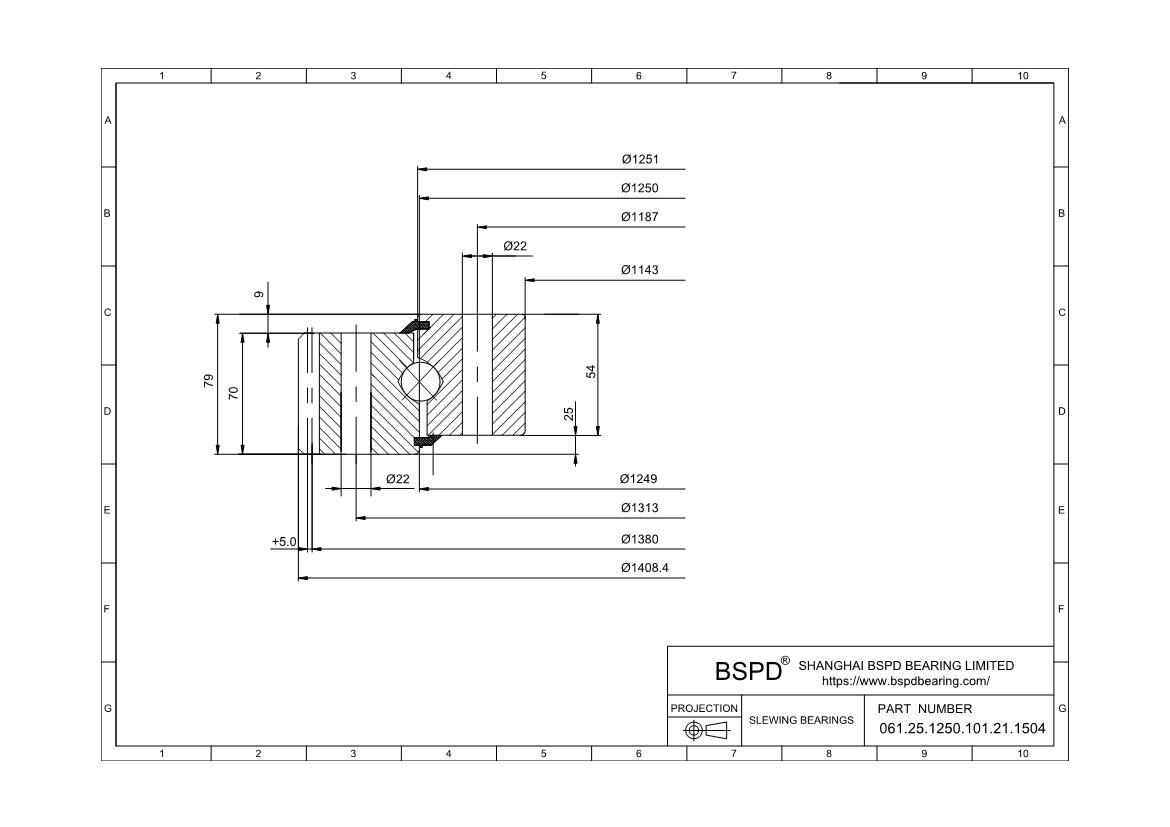

061.25.1250.101.21.1504
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1143 mm； Outer Diameter: 1408.4 mm； Width (Thickness): 79 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 061.25.1250.101.21.1504 |
| Series | Series 06 |
| Gear | External gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1143 mm |
| Outside Diameter Of Outer Ring | 1408.4 mm |
| Internal Diameter On Outer Ring | 1249 mm |
| Height Of Overall Bearing Assembly | 79 mm |
| Height Of Inner Ring | 54 mm |
| Height Of Outer Ring | 70 mm |
| External Diameter On Inner Ring | 1251 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 221 Kg |
| Bolt Circle In Inner Ring | 1187 mm |
| Bolt Circle In Outer Ring | 1313 mm |
| Size Of Hole In Inner Ring | 22.0 mm |
| Size Of Hole In Outer Ring | 22.0 mm |
| Number Holes In Inner Ring | 36 |
| Number Holes In Outer Ring | 36 |
| Diametral Pitch | 1380 mm |
| Number Of Gear Teeth | 138 |
| Permissible Tooth Forces T | 66.67 |
| Max Gear Tooth Load Fz | 133.33 |
| Diameter Of Bearing Raceway | 1250 mm |
| Distance Between Bottom Outer Ring Inner Ring | 25 mm |
| Correspond | FIG1 |
| x·m | +5.0 |
| k·m | -1.2 |
| K | 9 mm |
| n1 | 6 |
| Bolt Size (M) | 20 mm |
| M | 10 |
| F | 69 mm |
| RoHS | Compliant |
