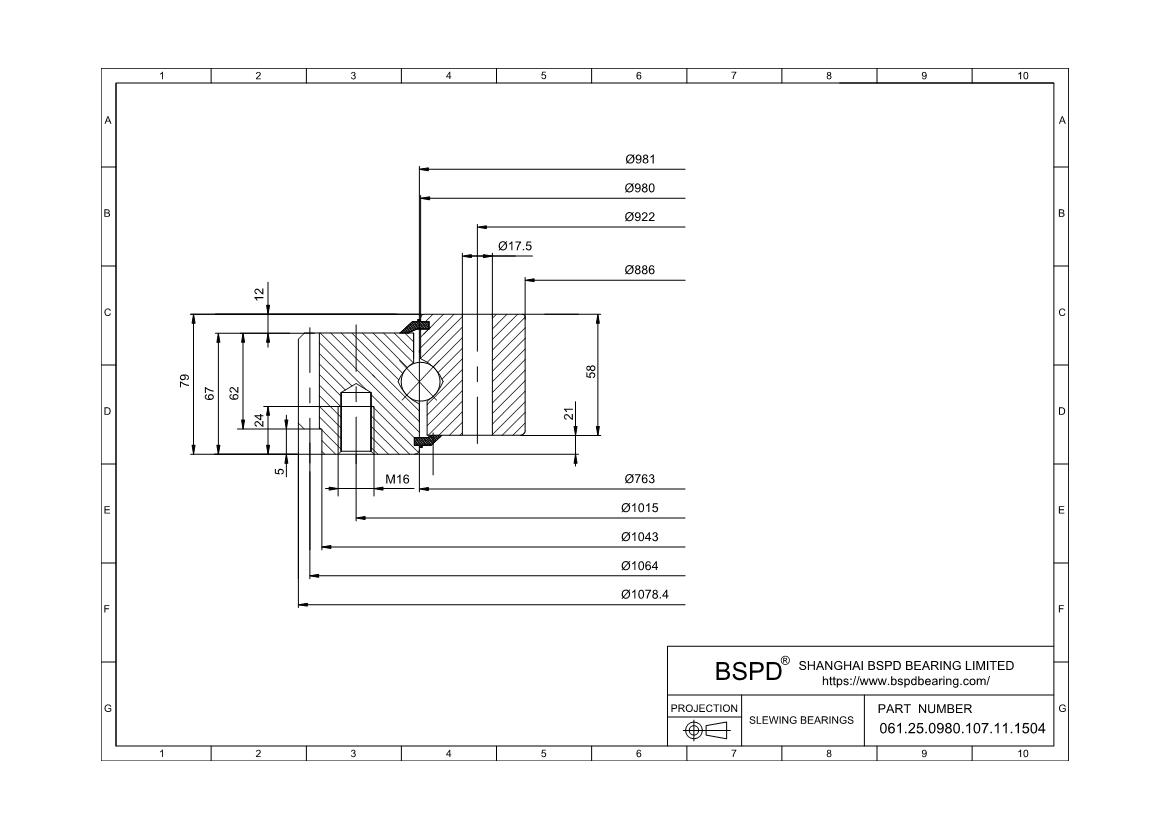

061.25.0980.107.11.1504
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 866 mm； Outer Diameter: 1078.4 mm； Width (Thickness): 79 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 061.25.0980.107.11.1504 |
| Series | Series 06 |
| Gear | External gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 866 mm |
| Outside Diameter Of Outer Ring | 1078.4 mm |
| Internal Diameter On Outer Ring | 979 mm |
| Height Of Overall Bearing Assembly | 79 mm |
| Height Of Inner Ring | 58 mm |
| Height Of Outer Ring | 67 mm |
| External Diameter On Inner Ring | 981 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 123 Kg |
| Bolt Circle In Inner Ring | 922 mm |
| Bolt Circle In Outer Ring | 1015 mm |
| Size Of Hole In Inner Ring | 17.5 mm |
| Size Of Hole In Outer Ring | 17.5 mm |
| Number Holes In Inner Ring | 30 |
| Number Holes In Outer Ring | 30 |
| Diametral Pitch | 1064 mm |
| Number Of Gear Teeth | 133 |
| Permissible Tooth Forces T | 25.8 |
| Max Gear Tooth Load Fz | 51.6 |
| Diameter Of Bearing Raceway | 980 mm |
| Distance Between Bottom Outer Ring Inner Ring | 21 mm |
| Correspond | FIG3 |
| x·m | +0.0 |
| k·m | -0.8 |
| K | 12 mm |
| n1 | 5 |
| Bolt Size (M) | 16 mm |
| T | 24 |
| M | 8 |
| F | 62 mm |
| RoHS | Compliant |
