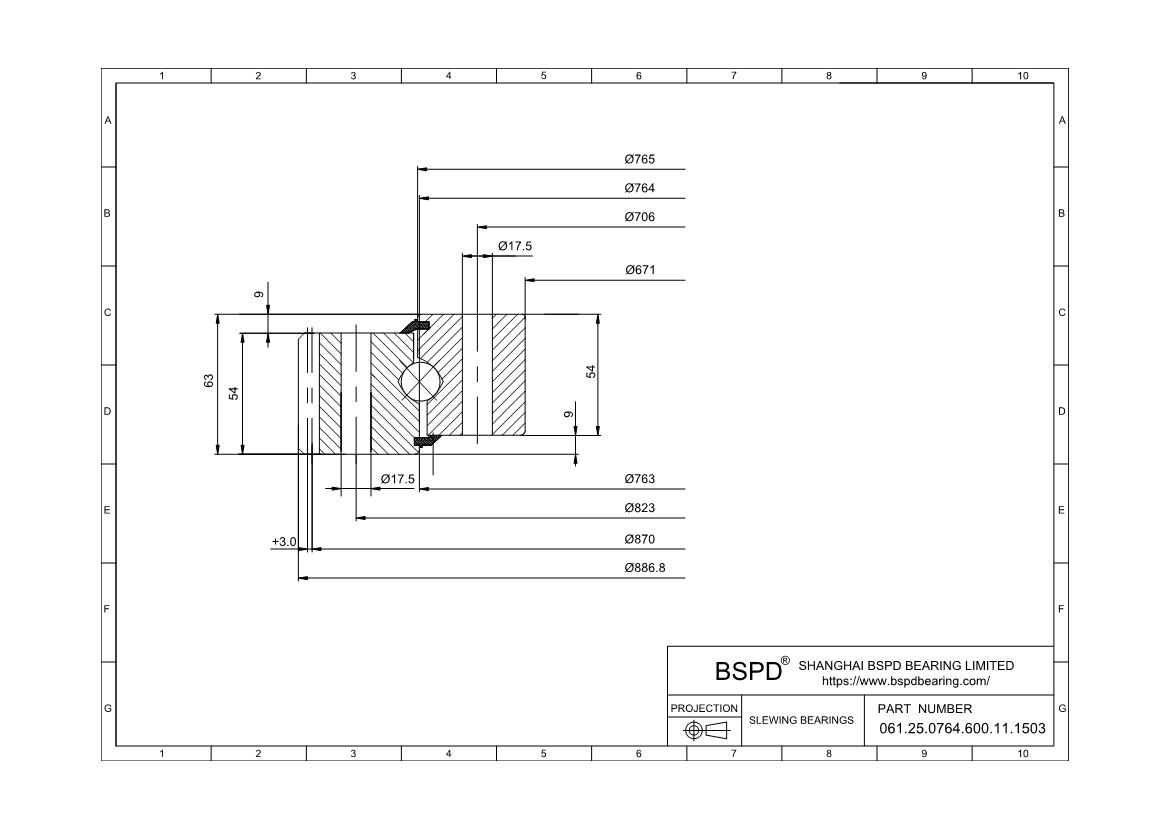

061.25.0764.600.11.1503
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 671 mm； Outer Diameter: 886.8 mm； Width (Thickness): 63 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 061.25.0764.600.11.1503 |
| Series | Series 06 |
| Gear | External gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 671 mm |
| Outside Diameter Of Outer Ring | 886.8 mm |
| Internal Diameter On Outer Ring | 763 mm |
| Height Of Overall Bearing Assembly | 63 mm |
| Height Of Inner Ring | 54 mm |
| Height Of Outer Ring | 54 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 95 Kg |
| Bolt Circle In Inner Ring | 706 mm |
| Bolt Circle In Outer Ring | 823 mm |
| Size Of Hole In Inner Ring | 17.5 mm |
| Size Of Hole In Outer Ring | 17.5 mm |
| Number Holes In Inner Ring | 24 |
| Number Holes In Outer Ring | 24 |
| Diametral Pitch | 870 mm |
| Number Of Gear Teeth | 145 |
| Permissible Tooth Forces T | 19.97 |
| Max Gear Tooth Load Fz | 39.94 |
| Diameter Of Bearing Raceway | 764 mm |
| Correspond | FIG1 |
| x·m | +3.0 |
| k·m | -0.6 |
| K | 9 mm |
| n1 | 4 |
| Bolt Size (M) | 16 mm |
| M | 6 |
| F | 53 mm |
| RoHS | Compliant |
