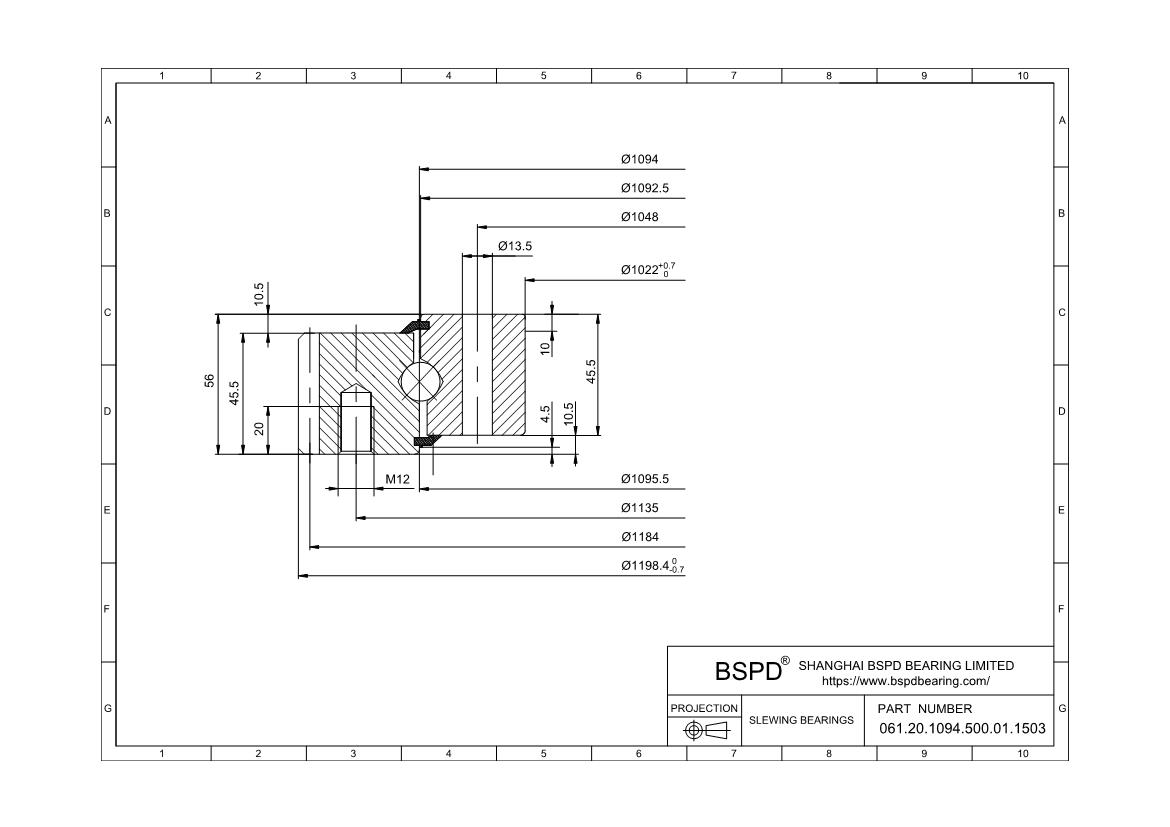

061.20.1094.500.01.1503
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1022 mm； Outer Diameter: 1198.4 mm； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 061.20.1094.500.01.1503 |
| Series | Series 06 |
| Gear | External gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1022 mm |
| Outside Diameter Of Outer Ring | 1198.4 mm |
| Internal Diameter On Outer Ring | 1095.5 mm |
| Height Of Overall Bearing Assembly | 56 mm |
| Height Of Inner Ring | 45.5 mm |
| Height Of Outer Ring | 45.5 mm |
| External Diameter On Inner Ring | 1092.5 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 91 Kg |
| Bolt Circle In Inner Ring | 1048 mm |
| Bolt Circle In Outer Ring | 1135 mm |
| Size Of Hole In Inner Ring | 13.5 mm |
| Size Of Hole In Outer Ring | 13.5 mm |
| Number Holes In Inner Ring | 44/48 |
| Number Holes In Outer Ring | 44/48 |
| Diametral Pitch | 1184 mm |
| Number Of Gear Teeth | 148 |
| Permissible Tooth Forces T | 18.93 |
| Max Gear Tooth Load Fz | 37.86 |
| Diameter Of Bearing Raceway | 1094 mm |
| Distance Between Bottom Outer Ring Inner Ring | 10.5 mm |
| Correspond | FIG3 |
| k·m | -0.8 |
| K | 10.5 mm |
| Bolt Size (M) | 12 mm |
| T | 20 |
| M | 8 |
| F | 45.5 mm |
| RoHS | Compliant |
