061.20.0560.101.21.1503
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 479 mm； Outer Diameter: 670.8 mm； Width (Thickness): 55 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 061.20.0560.101.21.1503 |
| Series | Series 06 |
| Gear | External gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 479 mm |
| Outside Diameter Of Outer Ring | 670.8 mm |
| Internal Diameter On Outer Ring | 559 mm |
| Height Of Overall Bearing Assembly | 55 mm |
| Height Of Inner Ring | 46 mm |
| Height Of Outer Ring | 46 mm |
| External Diameter On Inner Ring | 561 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 53 Kg |
| Bolt Circle In Inner Ring | 510 mm |
| Bolt Circle In Outer Ring | 610 mm |
| Size Of Hole In Inner Ring | 15.5 mm |
| Size Of Hole In Outer Ring | 15.5 mm |
| Number Holes In Inner Ring | 20 |
| Number Holes In Outer Ring | 20 |
| Diametral Pitch | 654 mm |
| Number Of Gear Teeth | 109 |
| Permissible Tooth Forces T | 26.09 |
| Max Gear Tooth Load Fz | 52.17 |
| Diameter Of Bearing Raceway | 560 mm |
| Distance Between Bottom Outer Ring Inner Ring | 9 mm |

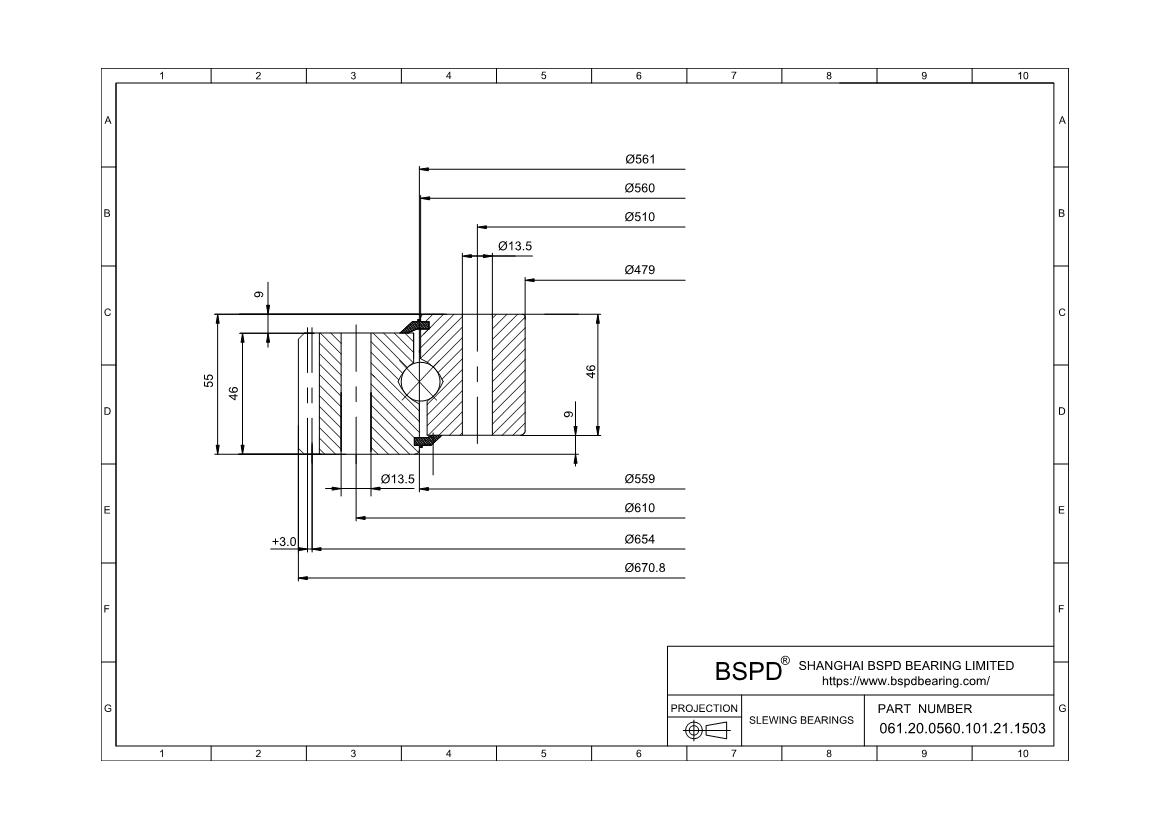

| Correspond | FIG1 |
| x·m | +3.0 |
| k·m | -0.6 |
| K | 9 mm |
| n1 | 4 |
| Bolt Size (M) | 14 mm |
| M | 6 |
| F | 45 mm |
| RoHS | Compliant |
