060.45.0805.001.11.1504 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 662 mm； Outer Diameter: 948 mm； Width (Thickness): 99 mm;

060.45.0805.001.11.1504
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number060.45.0805.001.11.1504
SeriesSeries 06
GearWithout gear
TypeBall
System of MeasurementMetric
Inside Diameter Of Inner Ring662 mm
Outside Diameter Of Outer Ring948 mm
Internal Diameter On Outer Ring803 mm
Height Of Overall Bearing Assembly99 mm
Height Of Inner Ring90 mm
Height Of Outer Ring90 mm
External Diameter On Inner Ring807 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly215 Kg
Bolt Circle In Inner Ring714 mm
Bolt Circle In Outer Ring896 mm
Size Of Hole In Inner Ring26.0 mm
Size Of Hole In Outer Ring26.0 mm
Number Holes In Inner Ring30
Number Holes In Outer Ring30
Diameter Of Bearing Raceway805 mm
Distance Between Bottom Outer Ring Inner Ring9 mm

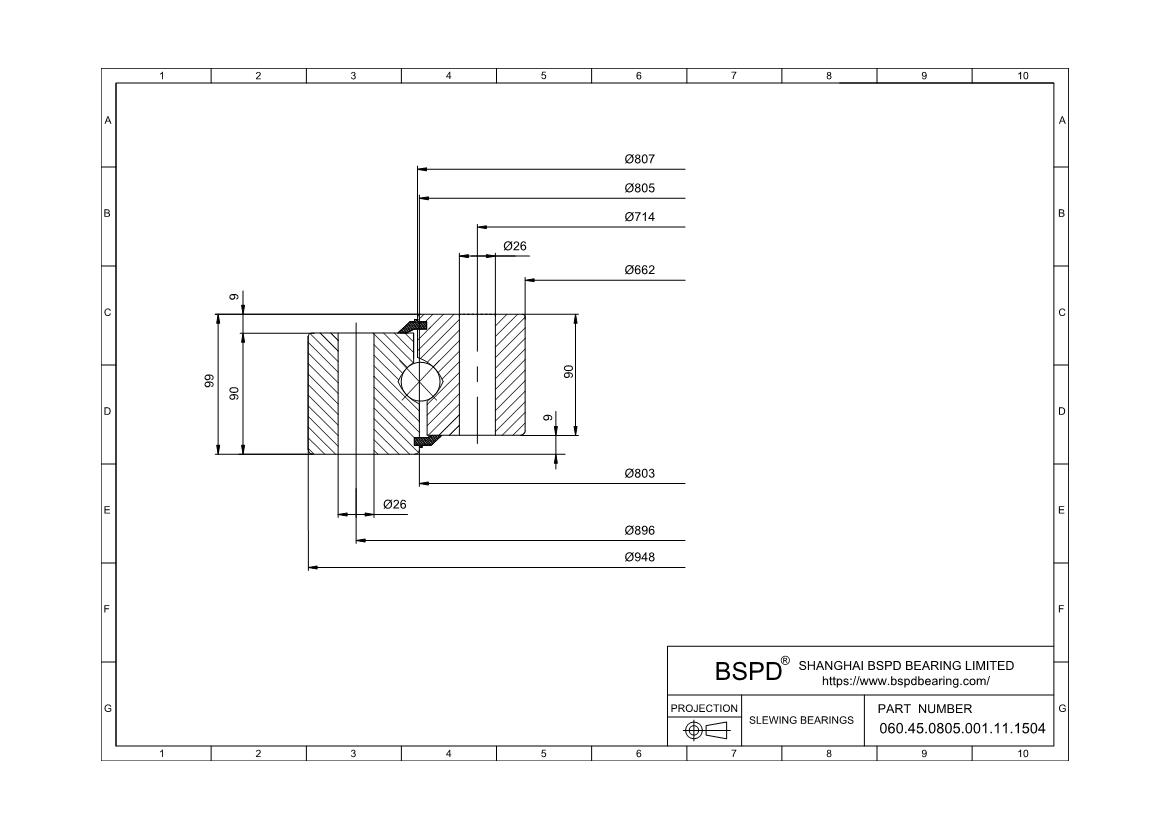

CorrespondFIG1
K9 mm
n14
Bolt Size (M)24 mm
RoHSCompliant
060.45.0805.001.11.1504
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
