060.25.0555.000.11.1504
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 460 mm； Outer Diameter: 650 mm； Width (Thickness): 63 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 060.25.0555.000.11.1504 |
| Series | Series 06 |
| Gear | Without gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 460 mm |
| Outside Diameter Of Outer Ring | 650 mm |
| Internal Diameter On Outer Ring | 554 mm |
| Height Of Overall Bearing Assembly | 63 mm |
| Height Of Inner Ring | 54 mm |
| Height Of Outer Ring | 54 mm |
| External Diameter On Inner Ring | 556 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 61 Kg |
| Bolt Circle In Inner Ring | 496 mm |
| Bolt Circle In Outer Ring | 614 mm |
| Size Of Hole In Inner Ring | 17.5 mm |
| Size Of Hole In Outer Ring | 17.5 mm |
| Number Holes In Inner Ring | 30 |
| Number Holes In Outer Ring | 30 |
| Diameter Of Bearing Raceway | 555 mm |
| Distance Between Bottom Outer Ring Inner Ring | 9 mm |

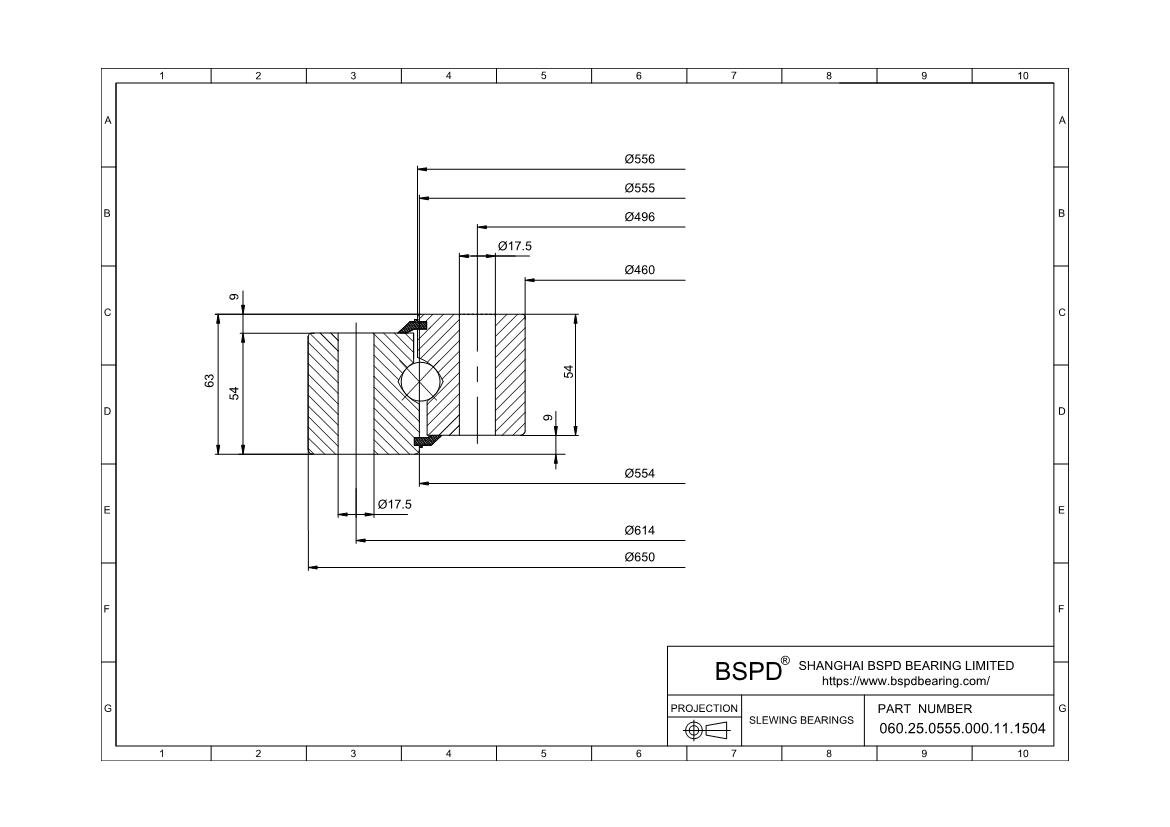

| Correspond | FIG1 |
| K | 9 mm |
| n1 | 3 |
| Bolt Size (M) | 16 mm |
| RoHS | Compliant |
