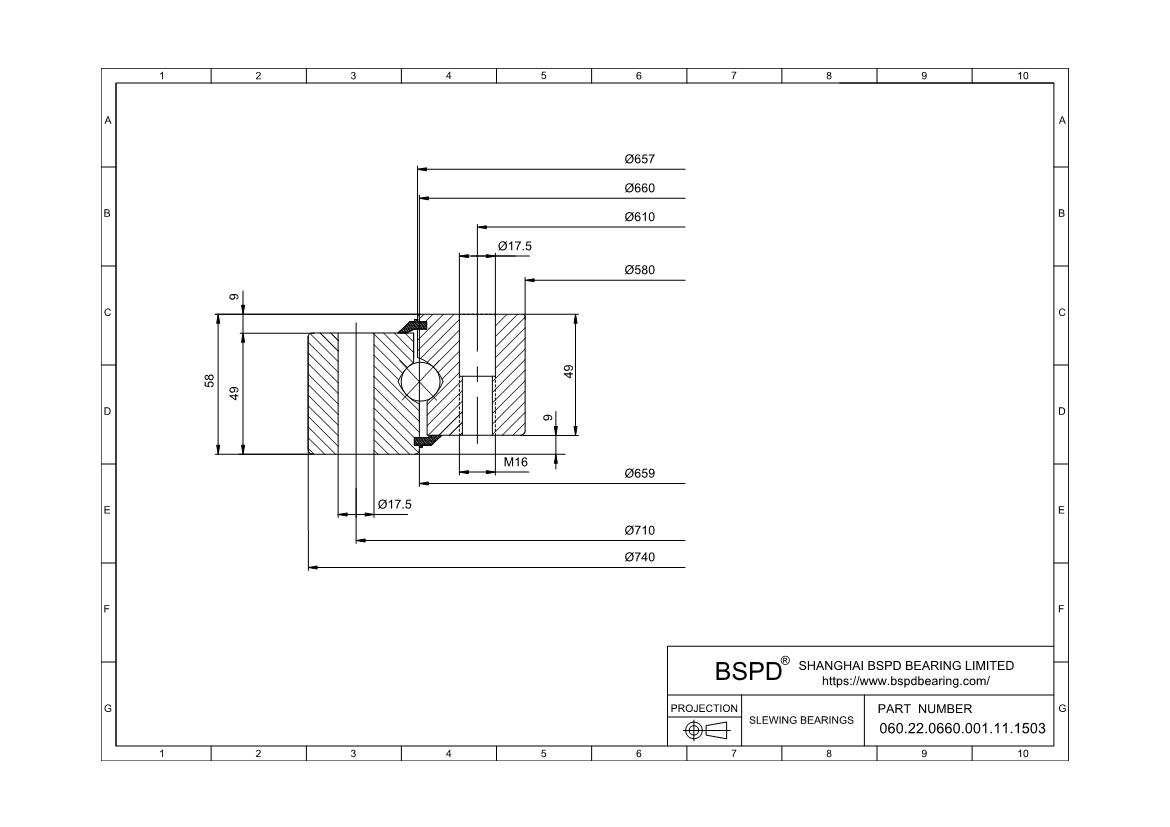

060.22.0660.001.11.1503
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 580 mm； Outer Diameter: 740 mm； Width (Thickness): 58 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 060.22.0660.001.11.1503 |
| Series | Series 06 |
| Gear | Without gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 580 mm |
| Outside Diameter Of Outer Ring | 740 mm |
| Internal Diameter On Outer Ring | 659 mm |
| Height Of Overall Bearing Assembly | 58 mm |
| Height Of Inner Ring | 49 mm |
| Height Of Outer Ring | 49 mm |
| External Diameter On Inner Ring | 657 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 59 Kg |
| Bolt Circle In Inner Ring | 610 mm |
| Bolt Circle In Outer Ring | 710 mm |
| Size Of Hole In Inner Ring | 17.5 mm |
| Size Of Hole In Outer Ring | 17.5 mm |
| Number Holes In Inner Ring | 30 |
| Number Holes In Outer Ring | 30 |
| Diameter Of Bearing Raceway | 660 mm |
| Distance Between Bottom Outer Ring Inner Ring | 9 mm |
| Correspond | FIG3 |
| K | 9 mm |
| n1 | 2 |
| Bolt Size (M) | 16 mm |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 060.22.0660.001.11.1503 ? Metric Size Slewing Rings (2) Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
