060.20.0544.575.01.1403
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 473.5 mm； Outer Diameter: 614.5 mm； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 060.20.0544.575.01.1403 |
| Series | Series 06 |
| Gear | Without gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 473.5 mm |
| Outside Diameter Of Outer Ring | 614.5 mm |
| Internal Diameter On Outer Ring | 545.5 mm |
| Height Of Overall Bearing Assembly | 56 mm |
| Height Of Inner Ring | 45.5 mm |
| Height Of Outer Ring | 45.5 mm |
| External Diameter On Inner Ring | 542.5 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 37 Kg |
| Bolt Circle In Inner Ring | 498 mm |
| Bolt Circle In Outer Ring | 590 mm |
| Size Of Hole In Inner Ring | 32 mm |
| Size Of Hole In Outer Ring | 32 mm |
| Diameter Of Bearing Raceway | 544 mm |
| Distance Between Bottom Outer Ring Inner Ring | 10.5 mm |

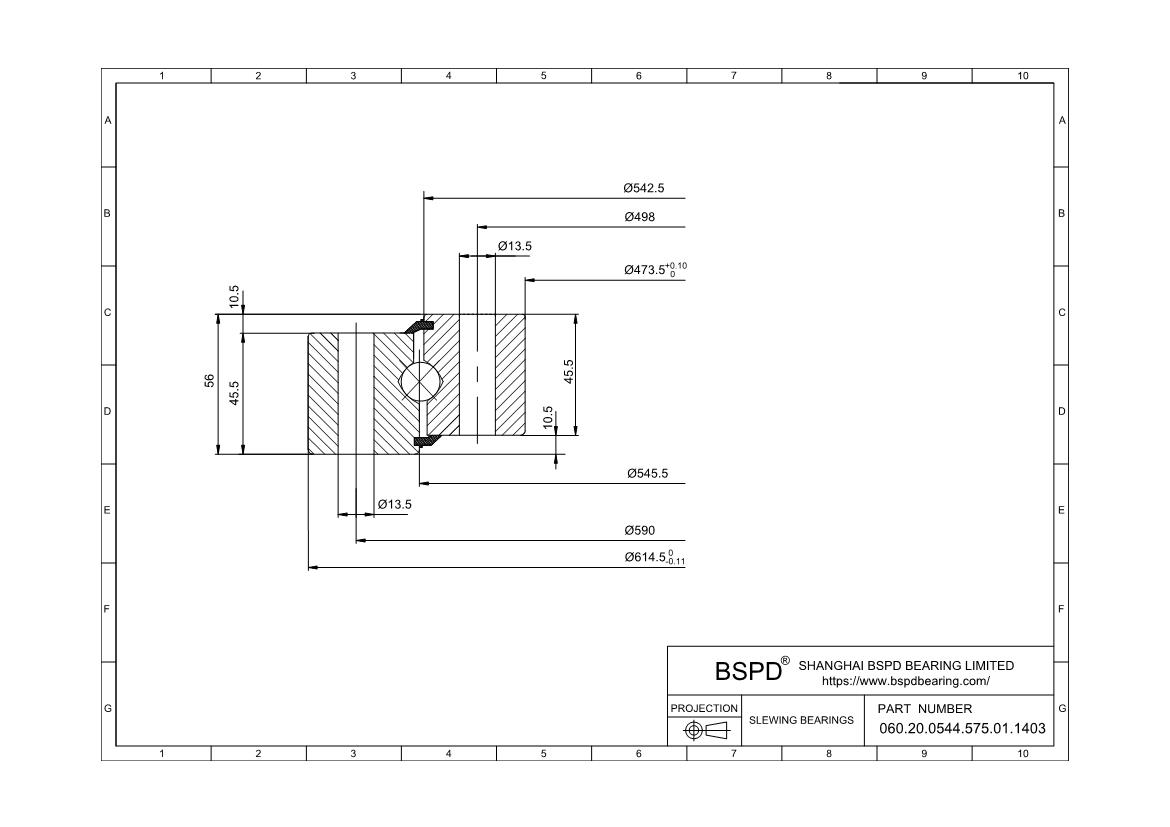

| Correspond | FIG1 |
| K | 10.5 mm |
| n1 | 12 |
| Bolt Size (M) | 13.5 mm |
| RoHS | Compliant |
