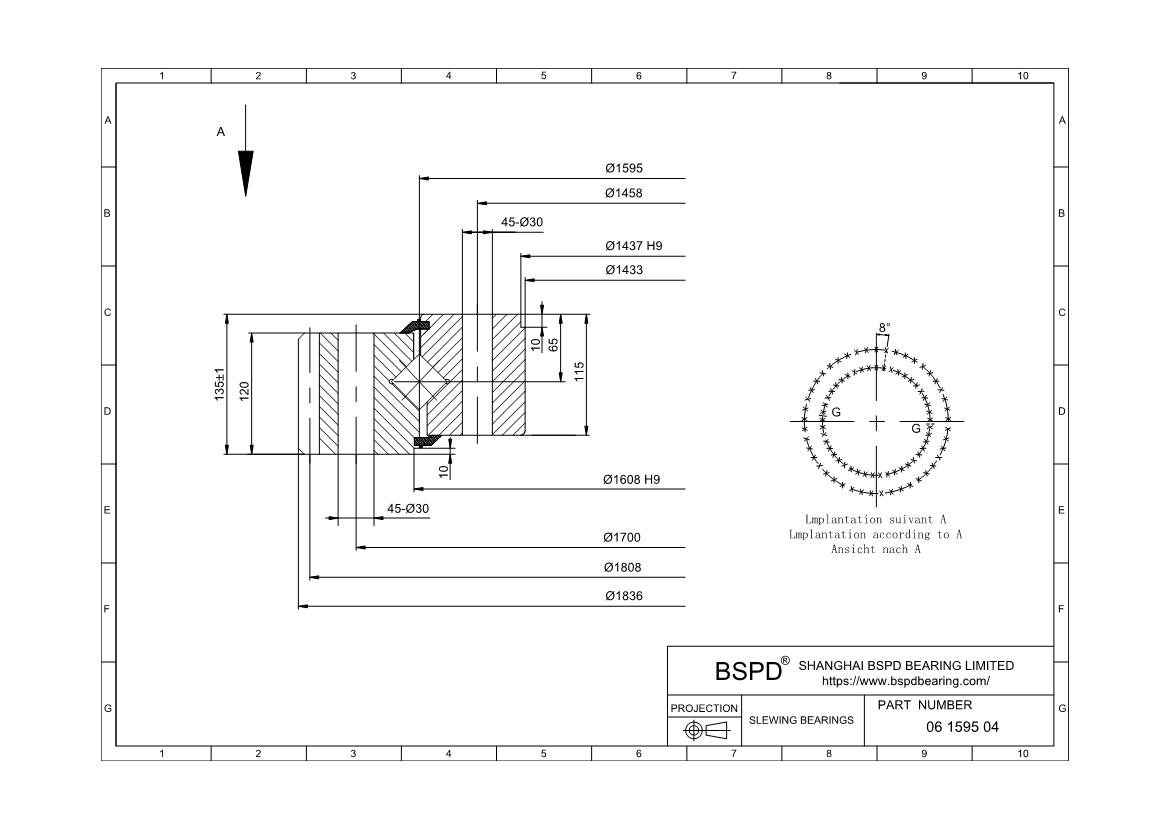

06 1595 04
Metric Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 1433.0 mm； Outer Diameter: 1836.0 mm； Width (Thickness): 135 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 06 1595 04 |
| Gear | External gear |
| Geometry | |
| External Diameter (DR) | 1836 |
| Internal Diameter (di) | 1433 |
| Height(H) | 135 |
| Weight(kg) | 791 |
| Gear Data | |
| Pitch Diameter of Gear (D2) | 1808 |
| Module(m) | 16 |
| Number of teeth(z) | 112 |
| Pressure Angle of Gear Teeth (α) | 20 |
| Tooth Form | Droite |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 1700 |
| Number Holes in Outer Ring (no) | 45 |
| Bolt Circle in Inner Ring (Li) | 1485 |
| Number Holes in Inner Ring (ni) | 45 |
| MEASUREMENTS IN MILLIMETERS | |
| MAXIMUM DEFLECTION | |
| MAXIMUM MEASUREMENT IN 1 POINT | |
Print PDF
Request a 3D CAD Model
