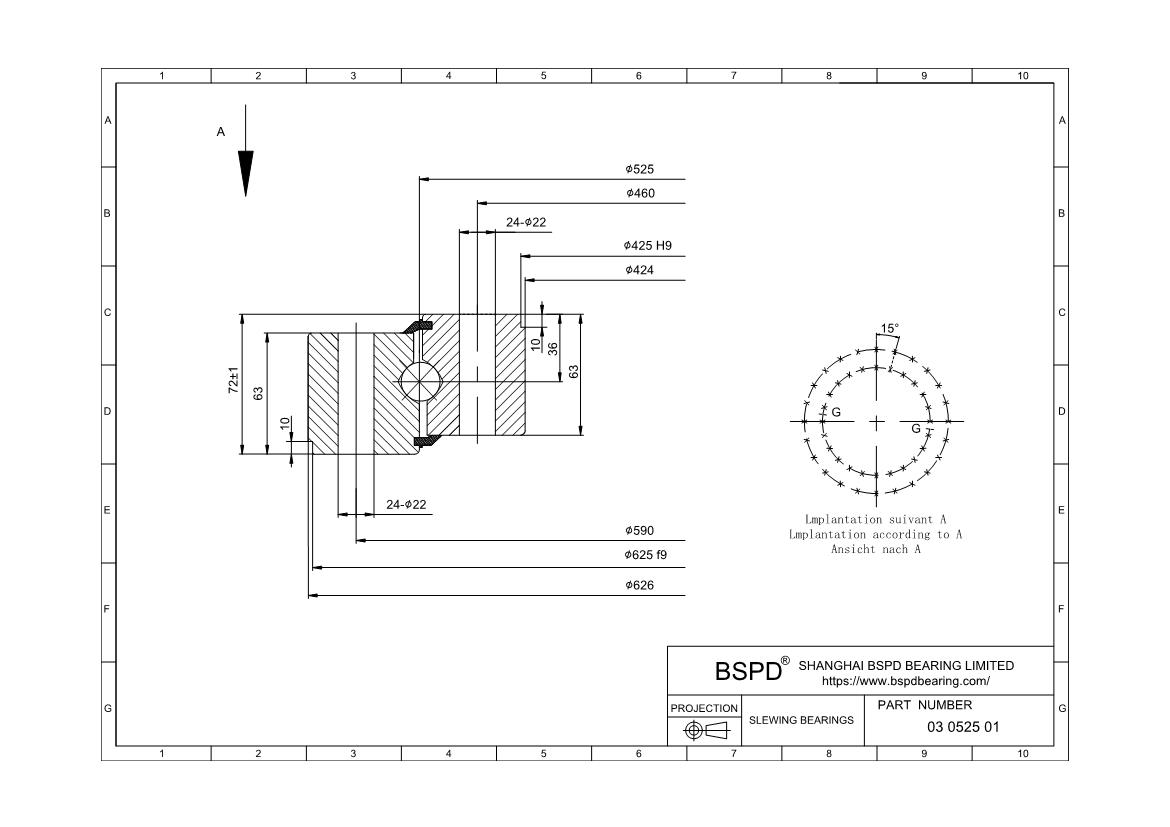

03 0525 01
Metric Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 424.0 mm； Outer Diameter: 626.0 mm； Width (Thickness): 72 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 03 0525 01 |
| Gear | Without gear |
| Geometry | |
| External Diameter (DR) | 626 |
| Internal Diameter (di) | 424 |
| Height(H) | 72 |
| Weight(kg) | 70 |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 590 |
| Number Holes in Outer Ring (no) | 24 |
| Bolt Circle in Inner Ring (Li) | 460 |
| Number Holes in Inner Ring (ni) | 24 |
| MEASUREMENTS IN MILLIMETERS | |
| MAXIMUM DEFLECTION | |
| MAXIMUM MEASUREMENT IN 1 POINT | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 03 0525 01 ? Metric Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
