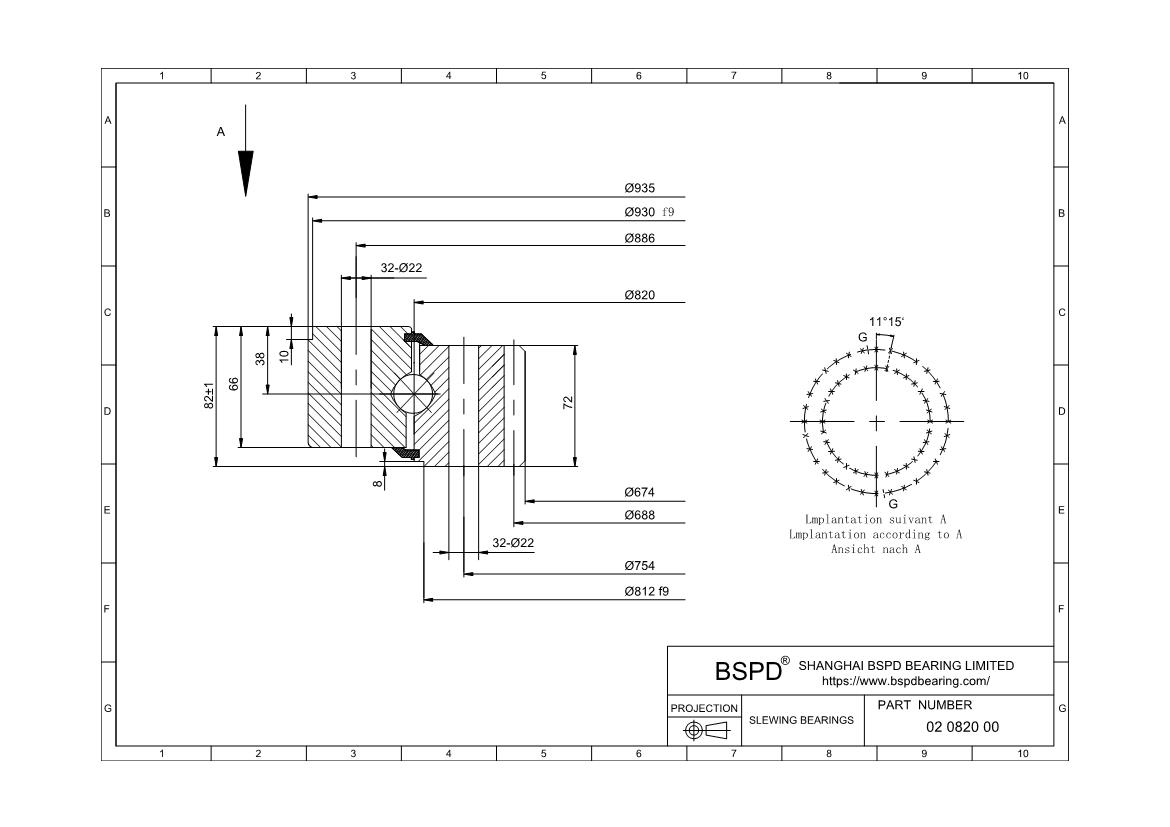

02 0820 00
Metric Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 674.0 mm； Outer Diameter: 935.0 mm； Width (Thickness): 82 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 02 0820 00 |
| Gear | Internal gear |
| Geometry | |
| External Diameter (DR) | 935 |
| Internal Diameter (di) | 674 |
| Height(H) | 82 |
| Weight(kg) | 150 |
| Gear Data | |
| Pitch Diameter of Gear (D2) | 688 |
| Module(m) | 8 |
| Number of teeth(z) | 85 |
| Pressure Angle of Gear Teeth (α) | 20 |
| Tooth Form | Droite |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 886 |
| Number Holes in Outer Ring (no) | 32 |
| Bolt Circle in Inner Ring (Li) | 754 |
| Number Holes in Inner Ring (ni) | 32 |
| MEASUREMENTS IN MILLIMETERS | |
| MAXIMUM DEFLECTION | |
| MAXIMUM MEASUREMENT IN 1 POINT | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 02 0820 00 ? Metric Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
