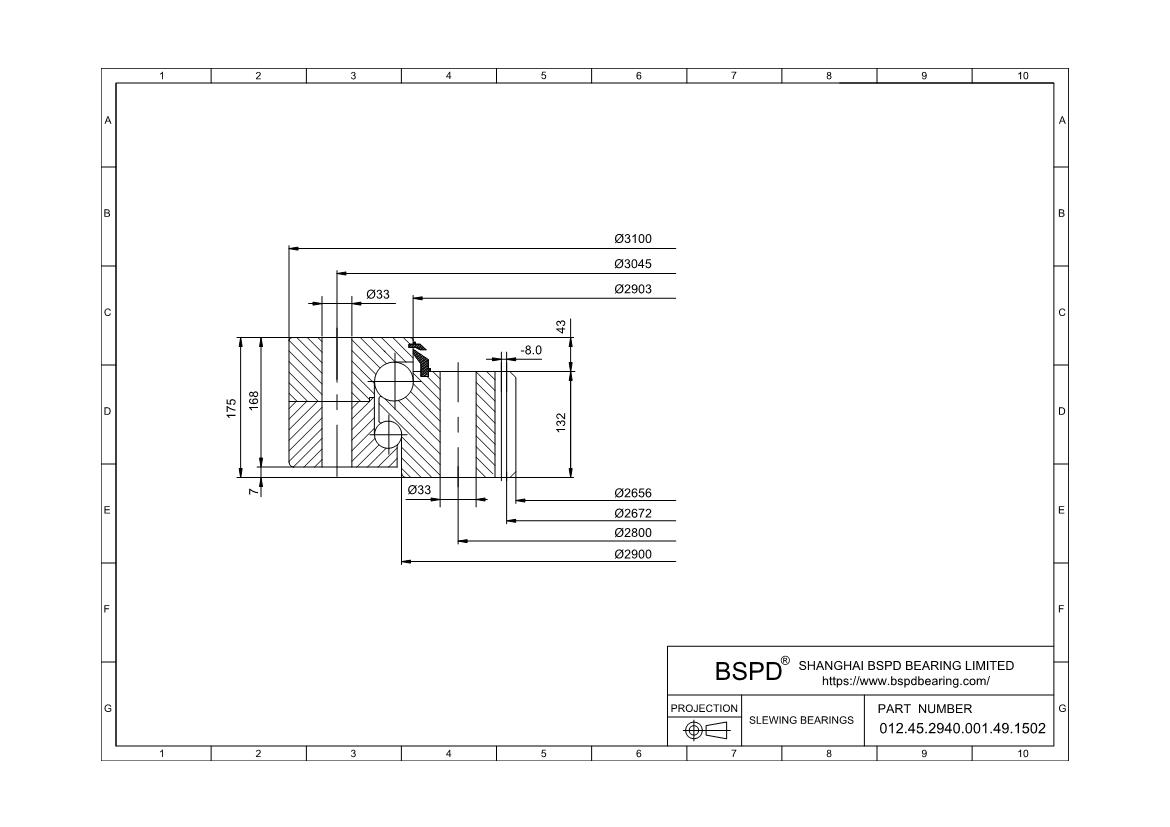

012.45.2940.001.49.1502
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 2656 mm； Outer Diameter: 3100 mm； Width (Thickness): 175 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 012.45.2940.001.49.1502 |
| Series | Series 01 |
| Gear | Internal gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 2656 mm |
| Outside Diameter Of Outer Ring | 2900 mm |
| Internal Diameter On Outer Ring | 3100 mm |
| Height Of Overall Bearing Assembly | 175 mm |
| Height Of Inner Ring | 168 mm |
| Height Of Outer Ring | 132 mm |
| External Diameter On Inner Ring | 2903 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 1950 Kg |
| Bolt Circle In Inner Ring | 2800 mm |
| Bolt Circle In Outer Ring | 3045 mm |
| Size Of Hole In Inner Ring | 33 mm |
| Size Of Hole In Outer Ring | 33 mm |
| Number Holes In Inner Ring | 66 |
| Number Holes In Outer Ring | 66 |
| Diametral Pitch | 2672 mm |
| Number Of Gear Teeth | 167 |
| Permissible Tooth Forces T | 183.6 |
| Max Gear Tooth Load Fz | 367.3 |
| Diameter Of Bearing Raceway | 2940 mm |
| Distance Between Bottom Outer Ring Inner Ring | 7 mm |
| Correspond | FIG2 |
| x·m | –8.0 |
| K | 43 mm |
| F19 | 2900 mm |
| n1 | 6 |
| Bolt Size (M) | 30 mm |
| M | 16 |
| F | 132 mm |
| RoHS | Compliant |
