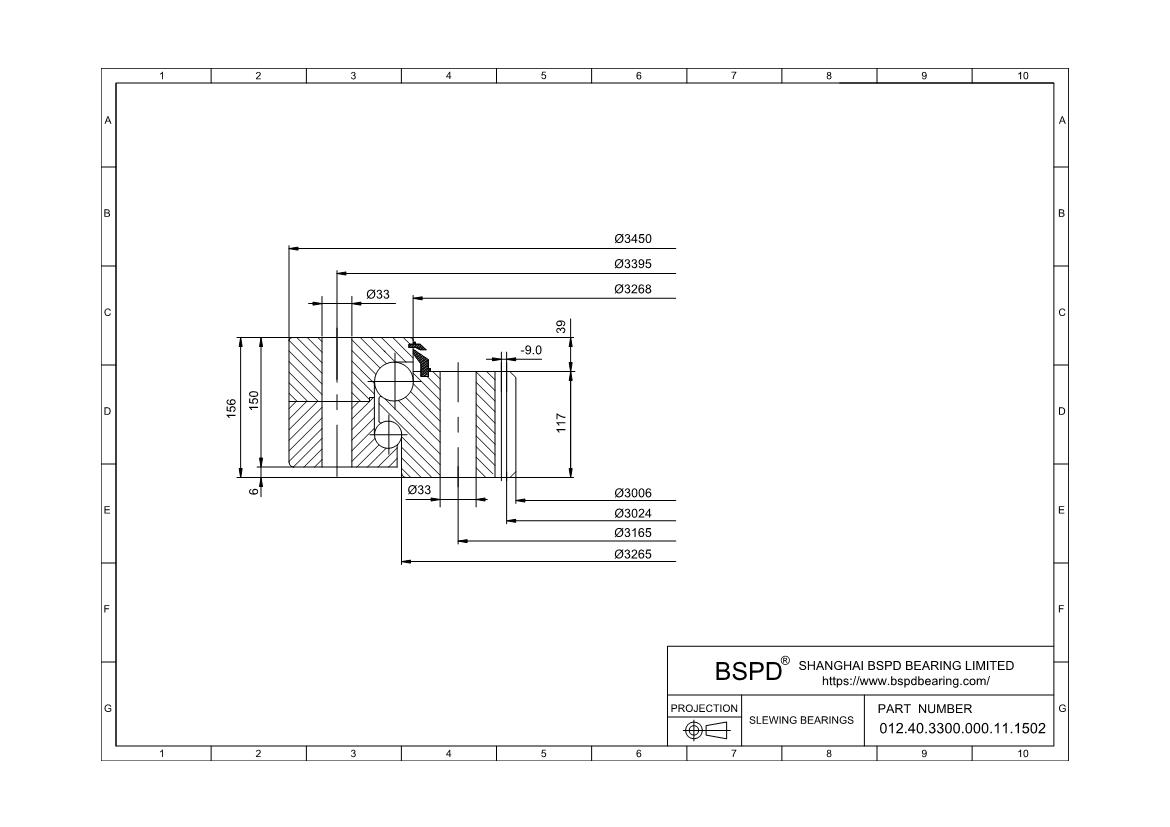

012.40.3300.000.11.1502
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 3006 mm； Outer Diameter: 3450 mm； Width (Thickness): 156 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 012.40.3300.000.11.1502 |
| Series | Series 01 |
| Gear | Internal gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 3006 mm |
| Outside Diameter Of Outer Ring | 3265 mm |
| Internal Diameter On Outer Ring | 3450 mm |
| Height Of Overall Bearing Assembly | 156 mm |
| Height Of Inner Ring | 150 mm |
| Height Of Outer Ring | 117 mm |
| External Diameter On Inner Ring | 3268 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 1935 Kg |
| Bolt Circle In Inner Ring | 3165 mm |
| Bolt Circle In Outer Ring | 3395 mm |
| Size Of Hole In Inner Ring | 33 mm |
| Size Of Hole In Outer Ring | 33 mm |
| Number Holes In Inner Ring | 66 |
| Number Holes In Outer Ring | 66 |
| Diametral Pitch | 3024 mm |
| Number Of Gear Teeth | 168 |
| Permissible Tooth Forces T | 132.2 |
| Max Gear Tooth Load Fz | 264.5 |
| Diameter Of Bearing Raceway | 3300 mm |
| Distance Between Bottom Outer Ring Inner Ring | 6 mm |
| Correspond | FIG2 |
| x·m | –9.0 |
| K | 39 mm |
| F19 | 3265 mm |
| n1 | 6 |
| Bolt Size (M) | 30 mm |
| M | 18 |
| F | 117 mm |
| RoHS | Compliant |
