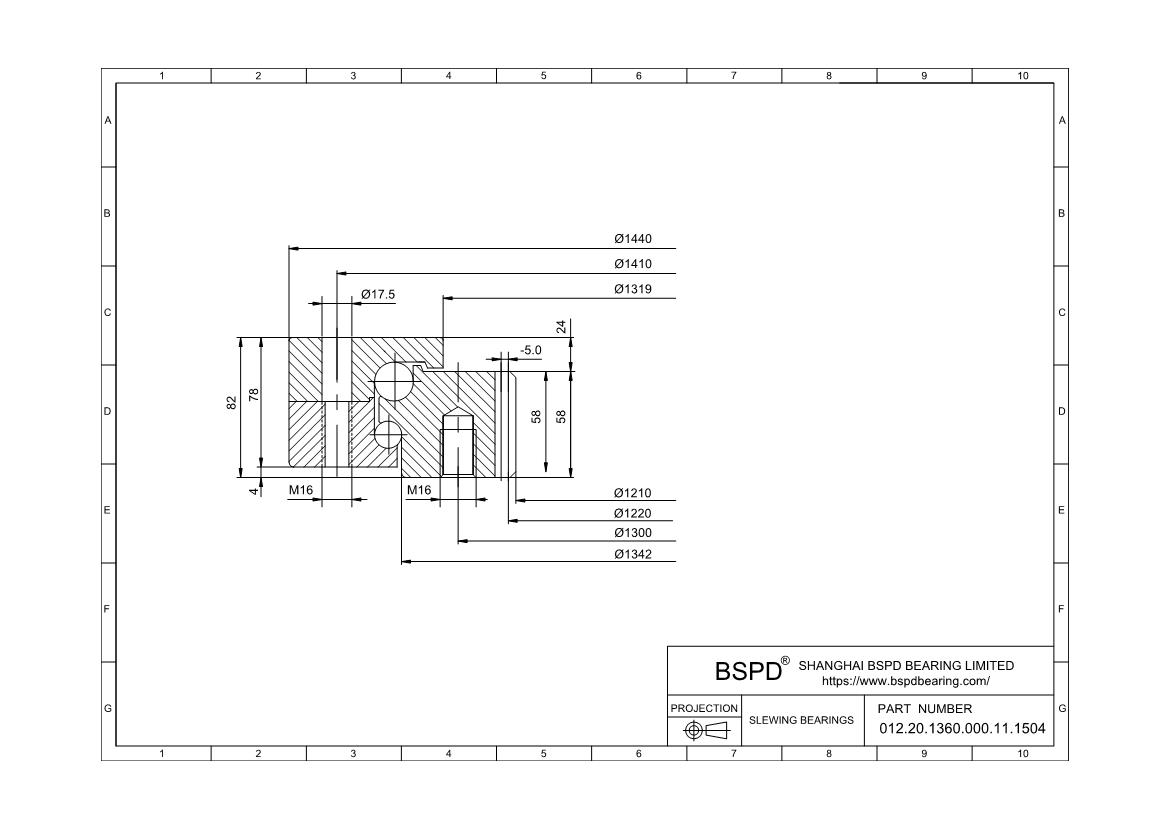

012.20.1360.000.11.1504
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1210 mm； Outer Diameter: 1440 mm； Width (Thickness): 82 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 012.20.1360.000.11.1504 |
| Series | Series 01 |
| Gear | Internal gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 1210 mm |
| Outside Diameter Of Outer Ring | 1342 mm |
| Internal Diameter On Outer Ring | 1440 mm |
| Height Of Overall Bearing Assembly | 82 mm |
| Height Of Inner Ring | 78 mm |
| Height Of Outer Ring | 58 mm |
| External Diameter On Inner Ring | 1319 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 213 Kg |
| Bolt Circle In Inner Ring | 1300 mm |
| Bolt Circle In Outer Ring | 1410 mm |
| Size Of Hole In Inner Ring | 17.5 mm |
| Size Of Hole In Outer Ring | 17.5 mm |
| Number Holes In Inner Ring | 54 |
| Number Holes In Outer Ring | 54 |
| Diametral Pitch | 1220 mm |
| Number Of Gear Teeth | 122 |
| Permissible Tooth Forces T | 36.40 |
| Max Gear Tooth Load Fz | 72.80 |
| Diameter Of Bearing Raceway | 1360 mm |
| Distance Between Bottom Outer Ring Inner Ring | 4 mm |
| Correspond | FIG2 |
| x·m | –5.0 |
| k·m | – |
| K | 24 mm |
| F19 | 1342 mm |
| n1 | 3 |
| Bolt Size (M) | 16 mm |
| T | 35 |
| M | 10 |
| F | 58 mm |
| RoHS | Compliant |
