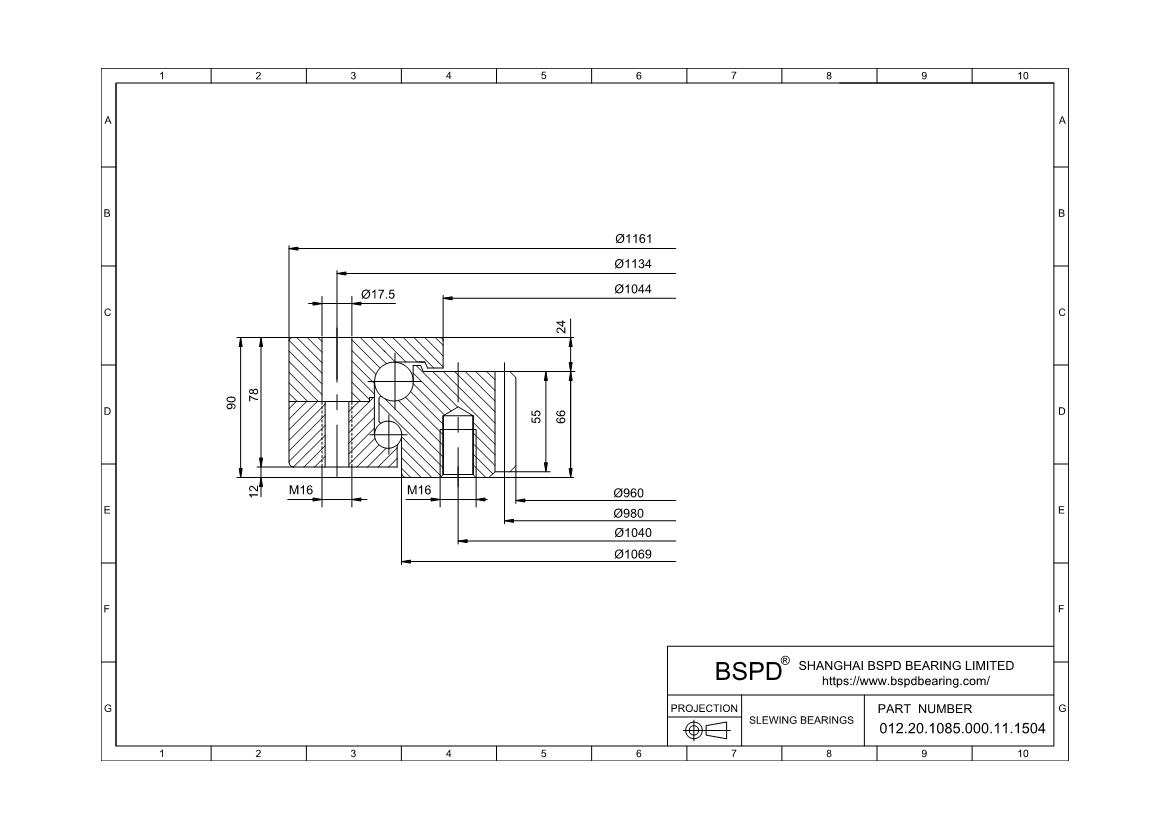

012.20.1085.000.11.1504
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 960 mm； Outer Diameter: 1161 mm； Width (Thickness): 90 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 012.20.1085.000.11.1504 |
| Series | Series 01 |
| Gear | Internal gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 960 mm |
| Outside Diameter Of Outer Ring | 1069 mm |
| Internal Diameter On Outer Ring | 1161 mm |
| Height Of Overall Bearing Assembly | 90 mm |
| Height Of Inner Ring | 78 mm |
| Height Of Outer Ring | 66 mm |
| External Diameter On Inner Ring | 1044 mm |
| External Diameter On Outer Ring | 1010 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 154 Kg |
| Bolt Circle In Inner Ring | 1040 mm |
| Bolt Circle In Outer Ring | 1134 mm |
| Size Of Hole In Inner Ring | 17.5 mm |
| Size Of Hole In Outer Ring | 17.5 mm |
| Number Holes In Inner Ring | 36 |
| Number Holes In Outer Ring | 36 |
| Diametral Pitch | 980 mm |
| Number Of Gear Teeth | 98 |
| Tooth Neck Height (Hu) | 11 mm |
| Permissible Tooth Forces T | 31.10 |
| Max Gear Tooth Load Fz | 62.20 |
| Diameter Of Bearing Raceway | 1085 mm |
| Distance Between Bottom Outer Ring Inner Ring | 12 mm |
| Correspond | FIG2 |
| x·m | –0.0 |
| K | 24 mm |
| F19 | 1069 mm |
| n1 | 2 |
| Bolt Size (M) | 16 mm |
| T | 35 |
| M | 10 |
| F | 55 mm |
| RoHS | Compliant |
