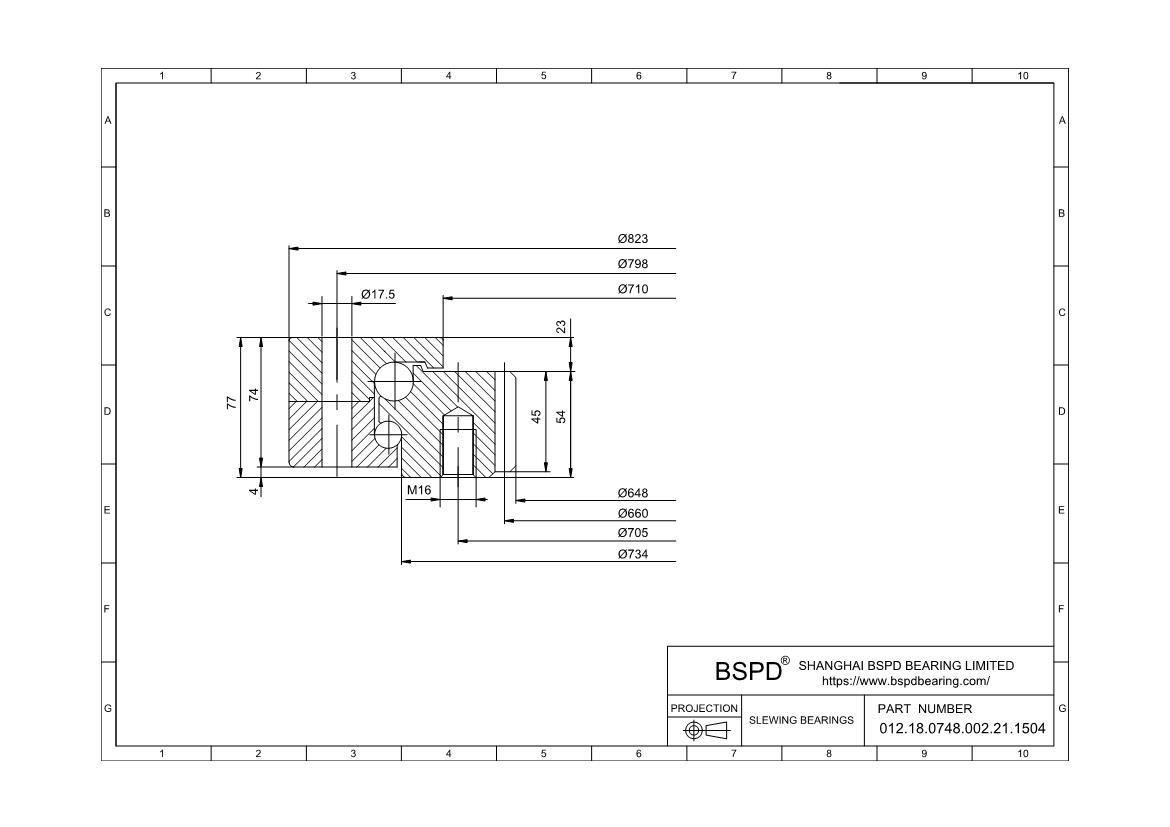

012.18.0748.002.21.1504
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 648 mm； Outer Diameter: 823 mm； Width (Thickness): 77 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 012.18.0748.002.21.1504 |
| Series | Series 01 |
| Gear | Internal gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 648 mm |
| Outside Diameter Of Outer Ring | 734 mm |
| Internal Diameter On Outer Ring | 823 mm |
| Height Of Overall Bearing Assembly | 77 mm |
| Height Of Inner Ring | 74 mm |
| Height Of Outer Ring | 54 mm |
| External Diameter On Inner Ring | 710 mm |
| External Diameter On Outer Ring | 678 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 90 Kg |
| Bolt Circle In Inner Ring | 705 mm |
| Size Of Hole In Inner Ring | 17.5 mm |
| Size Of Hole In Outer Ring | 17.5 mm |
| Number Holes In Inner Ring | 30 |
| Number Holes In Outer Ring | 30 |
| Diametral Pitch | 660 mm |
| Number Of Gear Teeth | 110 |
| Tooth Neck Height (Hu) | 9 mm |
| Permissible Tooth Forces T | 23.25 |
| Max Gear Tooth Load Fz | 46.50 |
| Diameter Of Bearing Raceway | 748 mm |
| Distance Between Bottom Outer Ring Inner Ring | 3 mm |
| Correspond | FIG2 |
| x·m | –0.0 |
| k·m | – |
| K | 23 mm |
| F19 | 734 mm |
| n1 | 4 |
| Bolt Size (M) | 16 mm |
| T | 30 |
| M | 6 |
| F | 45 mm |
| RoHS | Compliant |
