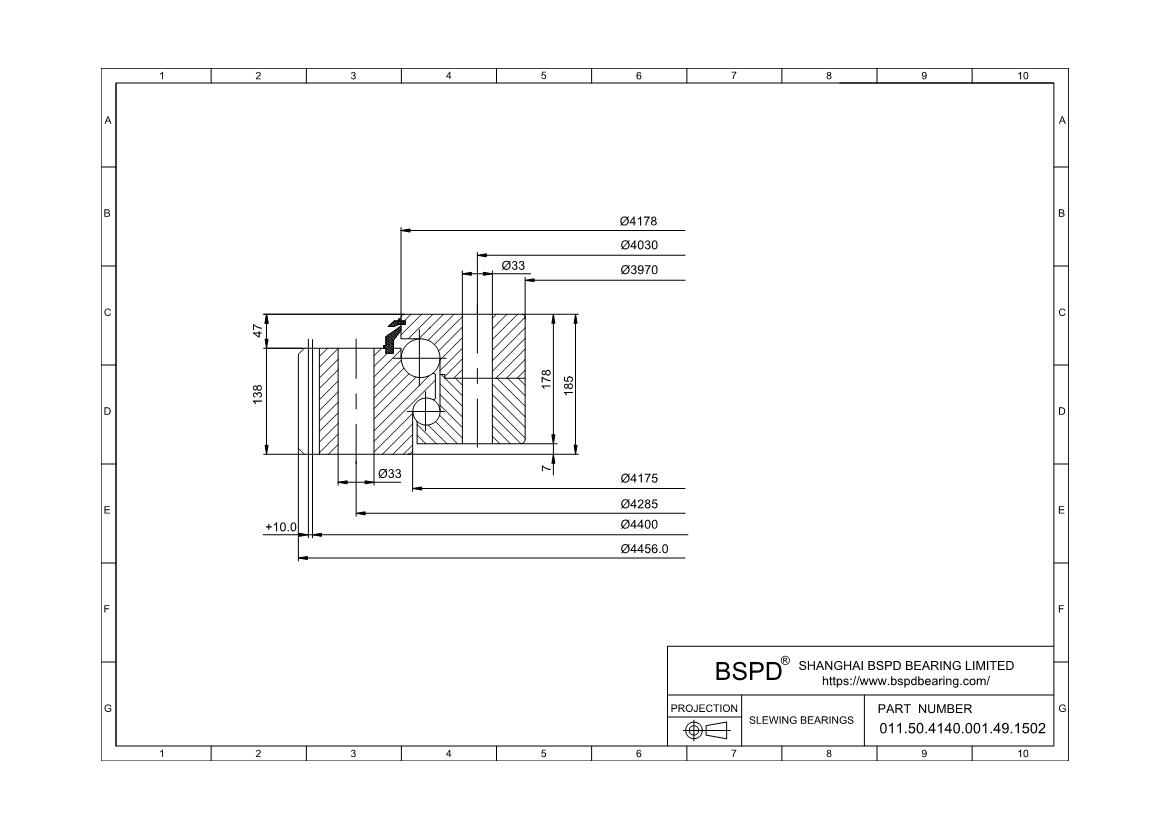

011.50.4140.001.49.1502
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 3970 mm； Outer Diameter: 4456 mm； Width (Thickness): 187 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 011.50.4140.001.49.1502 |
| Series | Series 01 |
| Gear | External gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 3970 mm |
| Outside Diameter Of Outer Ring | 4456.0 mm |
| Internal Diameter On Outer Ring | 4175 mm |
| Height Of Overall Bearing Assembly | 187 mm |
| Height Of Inner Ring | 178 mm |
| Height Of Outer Ring | 140 mm |
| External Diameter On Inner Ring | 4178 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 3282 Kg |
| Bolt Circle In Inner Ring | 4030 mm |
| Bolt Circle In Outer Ring | 4285 mm |
| Size Of Hole In Inner Ring | 33 mm |
| Size Of Hole In Outer Ring | 33 mm |
| Number Holes In Inner Ring | 90 |
| Number Holes In Outer Ring | 90 |
| Diametral Pitch | 4400 mm |
| Number Of Gear Teeth | 220 |
| Permissible Tooth Forces T | 243.4 |
| Max Gear Tooth Load Fz | 486.9 |
| Diameter Of Bearing Raceway | 4140 mm |
| Distance Between Bottom Outer Ring Inner Ring | 9 mm |
| Correspond | FIG1 |
| x·m | +10 |
| k·m | –2.0 |
| K | 47 mm |
| n1 | 6 |
| Bolt Size (M) | 30 mm |
| M | 20 |
| F | 140 mm |
| RoHS | Compliant |
