011.50.3747.001.49.1502
Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 3580 mm； Outer Diameter: 4046.4 mm； Width (Thickness): 185 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | 011.50.3747.001.49.1502 |
| Series | Series 01 |
| Gear | External gear |
| Type | Ball |
| System of Measurement | Metric |
| Inside Diameter Of Inner Ring | 3580 mm |
| Outside Diameter Of Outer Ring | 4046.4 mm |
| Internal Diameter On Outer Ring | 3782 mm |
| Height Of Overall Bearing Assembly | 185 mm |
| Height Of Inner Ring | 178 mm |
| Height Of Outer Ring | 138 mm |
| External Diameter On Inner Ring | 3785 mm |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | 52100_Chrome_Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| Weight Of Bearing Assembly | 2837 Kg |
| Bolt Circle In Inner Ring | 3640 mm |
| Bolt Circle In Outer Ring | 3890 mm |
| Size Of Hole In Inner Ring | 33 mm |
| Size Of Hole In Outer Ring | 33 mm |
| Number Holes In Inner Ring | 84 |
| Number Holes In Outer Ring | 84 |
| Diametral Pitch | 3996 mm |
| Number Of Gear Teeth | 222 |
| Permissible Tooth Forces T | 216.0 |
| Max Gear Tooth Load Fz | 432.0 |
| Diameter Of Bearing Raceway | 3747 mm |
| Distance Between Bottom Outer Ring Inner Ring | 7 mm |

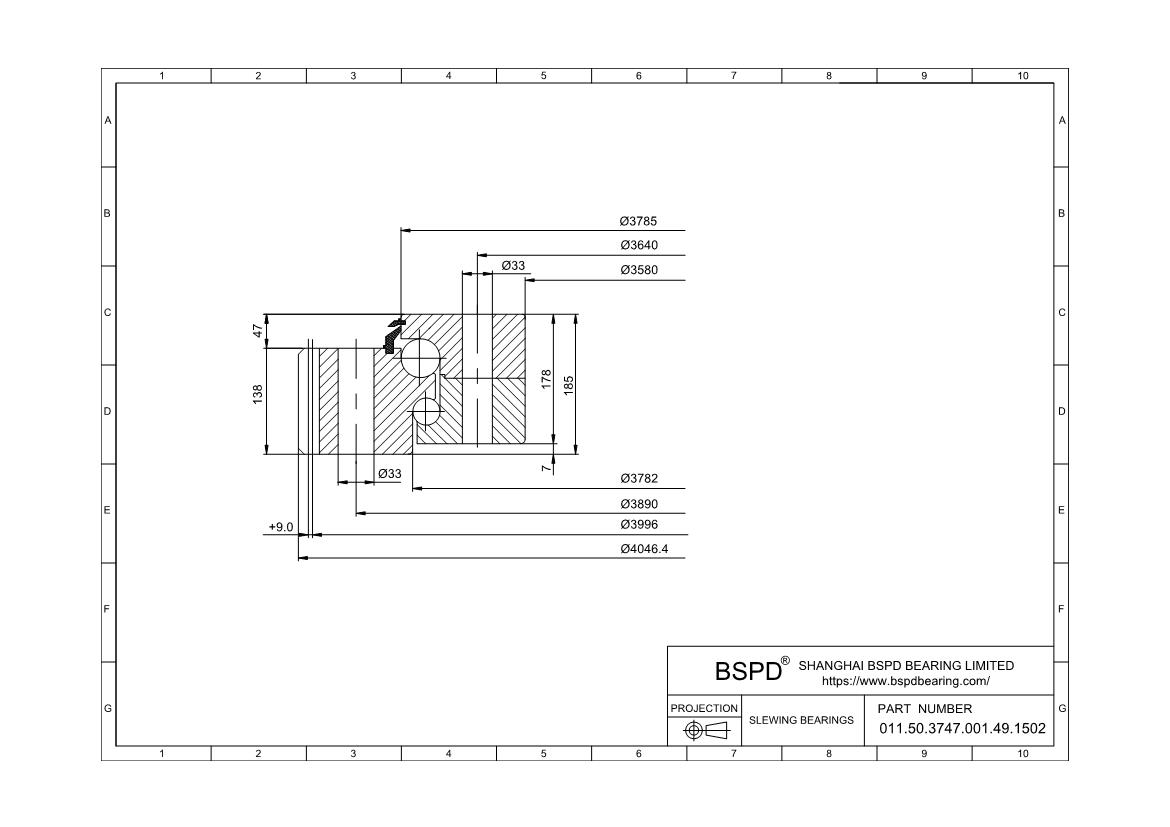

| Correspond | FIG1 |
| x·m | +9 |
| k·m | –1.8 |
| K | 47 mm |
| n1 | 6 |
| Bolt Size (M) | 30 mm |
| M | 18 |
| F | 138 mm |
| RoHS | Compliant |
Print PDF
Request a 3D CAD Model
